1.5mm Touchscreen Deck Floor Roll Forming Machine Gear Motor Driven By Inverter

1.5mm Touchscreen Deck Floor Roll Forming Machine Gear Motor Driven By Inverter
1.5mm Touchscreen Deck Floor Roll Forming Machine Gear Motor Driven By Inverter 1.5mm Touchscreen Deck Floor Roll Forming Machine Gear Motor Driven By Inverter

Large Image :  1.5mm Touchscreen Deck Floor Roll Forming Machine Gear Motor Driven By Inverter

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Floor Deck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Philippines Metal Steel Deck Roll Forming Machine Gear Motor Driven By Inverter Dimension(L*W*H): 12800*2300*1500mm
Production Capacity: 0-14m/min Rolling Thinckness: 0.8-1.5mm
Core Components: Motor, Pump, Gearbox, PLC Weight: 15000 Kg
Voltage: 380V 50Hz 3phases Key Selling Points: Automatic
High Light:

gear motor floor deck forming machine

,

1.5mm deck floor roll forming machine

,

touchscreen deck floor roll forming machine

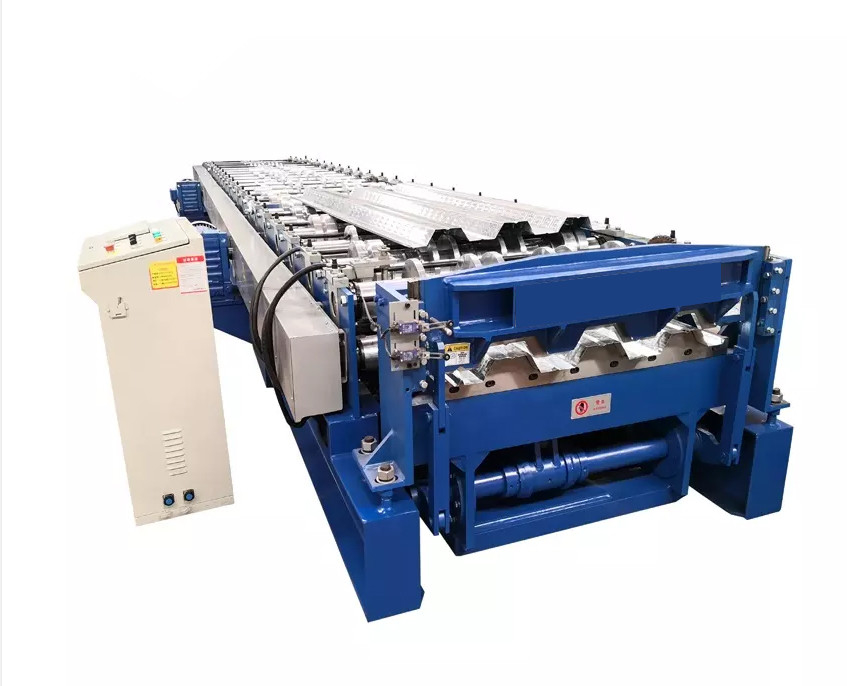

Philippines Metal Steel Deck Roll Forming Machine Gear Motor Driven By Inverter
      Philippines Metal Steel Deck Roll Forming Machine Gear Motor Driven By Inverter.Steel Deck Roll Forming Machine or Metal Deck Roll Forming Machine is a modern, pre-eminent solution for concrete floor work. It roll-forms panels that replace traditional form-work, shortens 3 times working duration, saving 30% on concrete.
Field of application: Construction and building structure.
Application: Roll forming panels that are used as a floor replacement.
Installation of accessories & sub-floor structure is accomplished immediately after pouring concrete.



Specification

item
value
Applicable Industries
Building Material Shops, Manufacturing Plant, Construction works , Steel Construction
Showroom Location
None
Condition
New
Type
Tile Forming Machine
Tile Type
Steel
Use
FLOOR
Production Capacity
0-14m/min
Dimension(L*W*H)
12800*2300*1500mm
Weight
15000kg
Warranty
1 year
Key Selling Points
Automatic
Rolling thinckness
0.8-1.5mm
Feeding width
1220mm
Marketing Type
Hot Product 2021
Warranty of core components
1 Year
Core Components
Motor, Bearing, Pump, Gearbox, PLC
Usage
Widely Used As The Floors Decking Of Buildings
Rolling Speed
0-14m/min
Machine's Weight
15000kgs
Control System
PLC(Touch Screen)
Raw Material
Galvanized Sheet
Floor Thickness
0.8-1.5mm
Raw Material Width
1200-1280mm

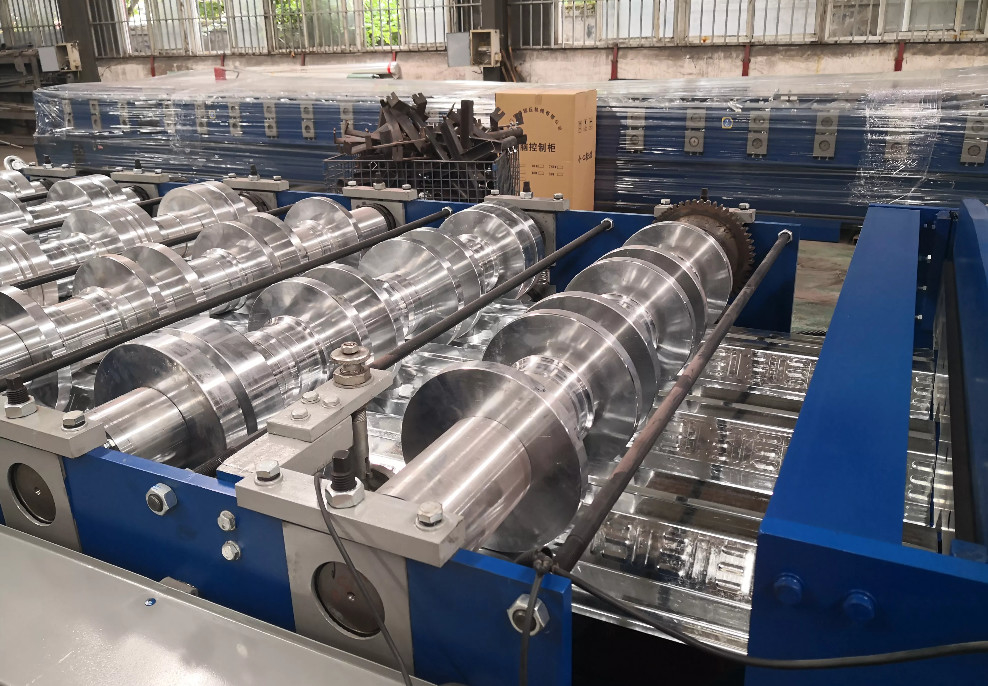

Roller Stations
23
Product name
floor deck making machine




Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
