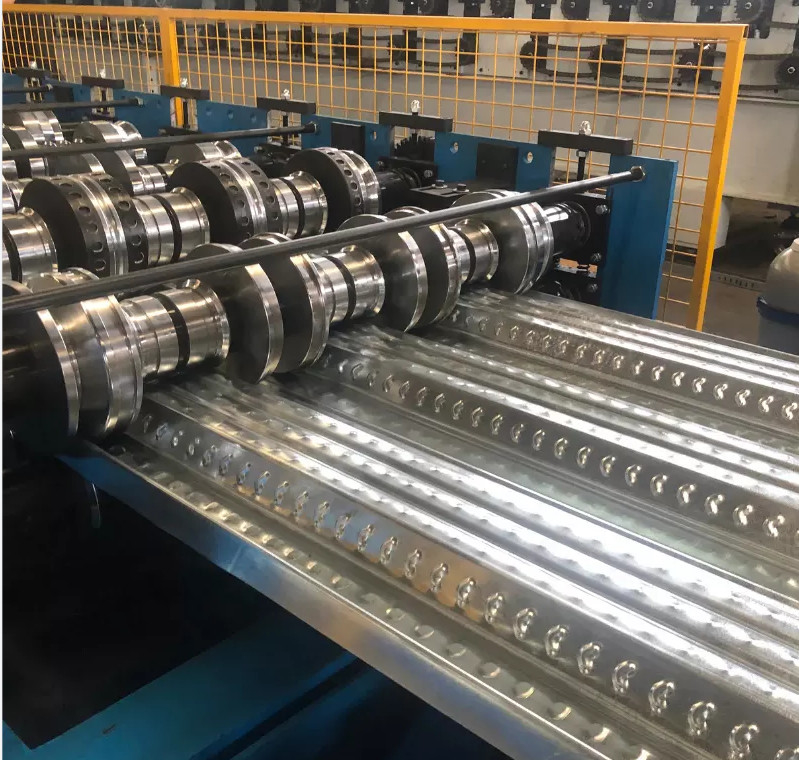

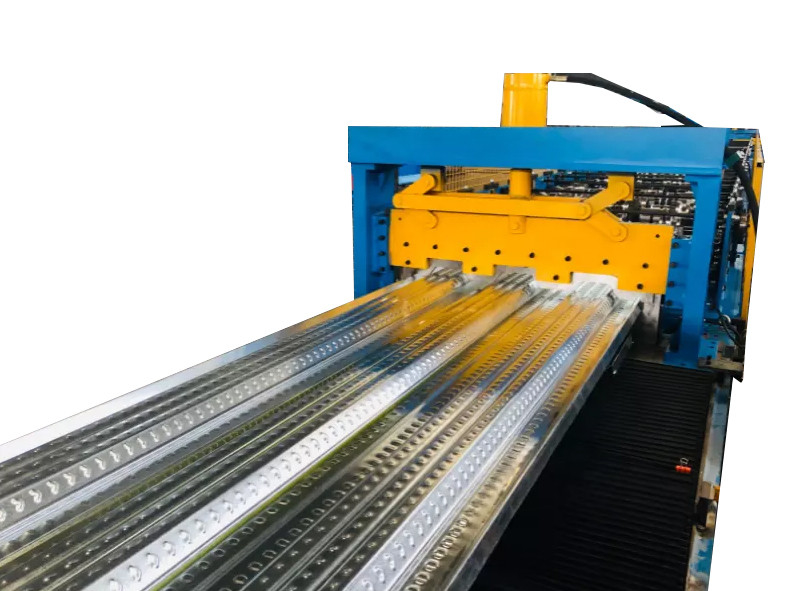

30m/Min 914mm Floor Deck Roll Forming Machine High Speed

30m/Min 914mm Floor Deck Roll Forming Machine High Speed
30m/Min 914mm Floor Deck Roll Forming Machine High Speed 30m/Min 914mm Floor Deck Roll Forming Machine High Speed

Large Image :  30m/Min 914mm Floor Deck Roll Forming Machine High Speed

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Floor Deck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: High Speed Floor Deck Roll Forming Machine 30m/Min 914mm Dimension(L*W*H): 16500*1500*1300
Rolling Thinckness: 0.7-1.2mm Material Thickness: 0.7-1.2MM Galvanied Steel
Shaft Diameter: 95mm Weight: 15000 Kg
Voltage: 380V 50Hz 3phases Production Capacity: 30 M/min
High Light:

30m/min floor deck roll forming machine

,

914mm floor deck roll forming machine

,

high speed floor deck forming machine

High Speed Floor Deck Roll Forming Machine 30m/Min 914mm

     High Speed Floor Deck Roll Forming Machine 30m/Min 914mm

- Floor decking sheet roll forming machine is automatic hydraulic shearing machine.
- The production is used for floor panels.The production has high wave, high strength and other characteristics.
- Floor decking sheet roll forming machine has a high degree automatically producing, and low cost.
- This machine is a new type of energy-saving and high-effective producing equipment for steel structure.
The main benefit of a composite metal floor deck is strengthening your floor system without adding extra weight. Composite metal floor deck comes in different profile types, gauges and lengths. Each profile type and gauge is engineered for different concrete slabs and yields different values in strength. Not all projects are engineered the same. Some areas may require more strength and that requires a heavier gauge or different profile type.


Specification


Item NO
Description
UnitType
RF-DF
1
Steel Thickness
mm
0.7-1.2mm G550 galvanized steel
2
Forming Speed
m/min
About 0-30
3
Roller stands
stand
About 34
4
Roller Material

high-grade Gcr15 steel
5
Shaft diameter

Ф95mm
6
Main Motor Power
Kw
22*2kw
7
Hydraulic cutting Power
Kw
7.5
8
Hydraulic pressure
Mpa
12
9
Power Supply

220V, 60HZ,3 phase
10
Tolerance
mm
1.5
11
Material of cutting

Cr12mov
12
Control system

PLC with touch screen
13
Transmission

Chain driven
14
Machine size
mm
About 16500*1500*1350mm
15
Machine weight
T
About 15



Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
