| Product Name: | High Precise Metal Steel Coil Slitting Line Cut To Length Line | Cutting Material: | Galvalume,Galvanized, PPGI, Aluminum |
|---|---|---|---|
| Work Speed: | 10-12m/Min | Specification: | 9.6*1.6*2.0m(L*W*H) |
| Hydraulic Power: | 7.5 Kw | Weight Of Machine: | 8.5 Tons |
| High Light: | ppgi metal coil slitting line,high precise metal coil slitting line,ppgi steel coil slitting line |
||

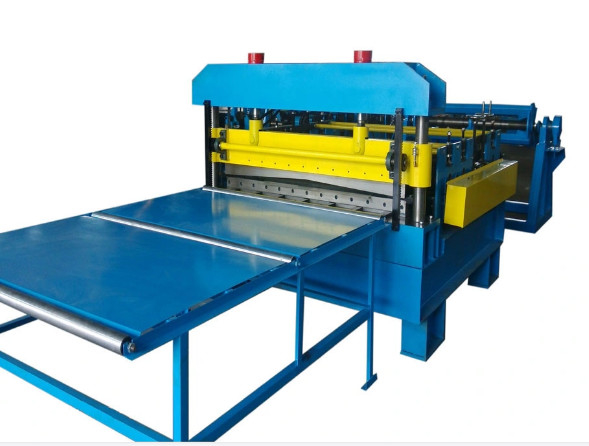

High Precise Metal Steel Coil Slitting Line Cut To Length Line
High Precise Metal Steel Coil Slitting Line Cut to Length Line.High Precise Metal Steel Coil Slitting Line Cut to Length Line is one most popular type of metal plate slitting lines. It consists of Decoiler, Feeding system, Leveling System, Slitting System, Scrape coil system, Correcting&Damping system, Recoiler and Electrical system. It's suitable for processing thickness range from 0.2mm to 2.0mm thick, metal sheet width from 300-1250mm steel coils. This slitting line can run with max work speed 30m/min. We adopt 18mm wall board to make machine frame strong, moreover, PLC with touch screen operation make the line simple and easy to usage.
Detailed information:

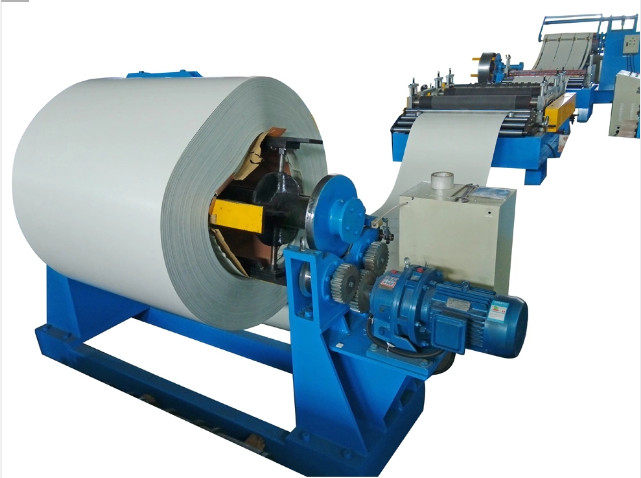

| 1) Motor decoiler | |
| Motor: | 5.5kw |
| Capacity (Max): | 8 Tons |
| Inner diameter | 450-550mm |
| Coil Width (Max.): | 1250mm |
| 2) Coil transmission | |
| Transport roller: | 45# forge steel, quenched and chrome coated 0.05mm |
| Width of roller: | 1500mm |
| Motor power: | 3KW |
| 3) slitting part | |
| Disc slitting blade | |
| Number of disc blade: | 11groups |
| Material of disc blade: | Cr12mov |
| Material of main shaft: | steel and Rubber covered |
| Slitting speed: | 20-30m/min |
| Motor power: | 11KW |
| Scrape recoiler | |
| Rotary according to slitting device | |
| 4) Electrical control cabinet | |
| Electrical system: | PLC Panasonic 380V, 50HZ, 3 phase(also depend on customer demand) |
| Transducer | YASKAWA, made in Japan |
| Weight | 10.5 tons |
| Production area | 18.5x3.5x2.1meters |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
