Fixed Type 0.4mm Roof Panel Roll Forming Machine Seam Lok Plc Controlled

Fixed Type 0.4mm Roof Panel Roll Forming Machine Seam Lok Plc Controlled
Fixed Type 0.4mm Roof Panel Roll Forming Machine Seam Lok Plc Controlled

Large Image :  Fixed Type 0.4mm Roof Panel Roll Forming Machine Seam Lok Plc Controlled

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Vietnam Fixed Type Roof Panel Roll Forming Machine Seam-Lok PLC-Controlled Shaft Material: 45# Steel
Side Wall Thickness: 18mm Cutting Type: Hydraulic Cutting
Output: About 12-15meters Per Minute Shaft: 75mm
Cutter Material: Cr12MOV, Heat Treatment
High Light:

fixed roof panel roll forming machine

,

0.4mm roof panel roll forming machine

,

roof panel plc roll forming machine

Vietnam Fixed Type Roof Panel Roll Forming Machine Seam-Lok PLC-Controlled

    Vietnam Fixed Type Roof Panel Roll Forming Machine Seam-Lok PLC-Controlled.One of machines that creates Concealed Fastener Roofs which are aesthetically pleasing and are popular in residential and commercial applications. Rollers and shearing die-set are especially designed to create these great Screwless Roofing Roll Forming Machine. There are a wide range of Standing Seam Panel Roll Forming Machine we have made, two common types are Mechanical Seam Panels (including crimping tools) and Locking Seam Panels (Snap Lock – the seams are locked by a simple snapping of the panels together). Special crimping tools: Electric Seamer (can run forward and reverse – Backward running, or retro running), Hand Crimper





Specification



Application
  Standing seam roof is an economical, snap-together roofing system, for commercial and residential applications. Standing seam roof roll forming machine is special designed for its production.
  Technical Parameters
  1 Suitable Material PPGI Steel Coil / Galvalume Steel Coil / Aluminium Coil / Galvanized Steel Coil
  2 Material Width According to Profile Drawing
  3 Material Thickness 0.4-0.8 mm PPGI Steel Coil / 0.7-1.2 mm Aluminium Coil
  4 Roll forming speed 10-20 m/min (Exclude Cutting Time)
Equipment List
1 Hydraulic Decoiler with Breaking device is equipped for coil processing 1 set

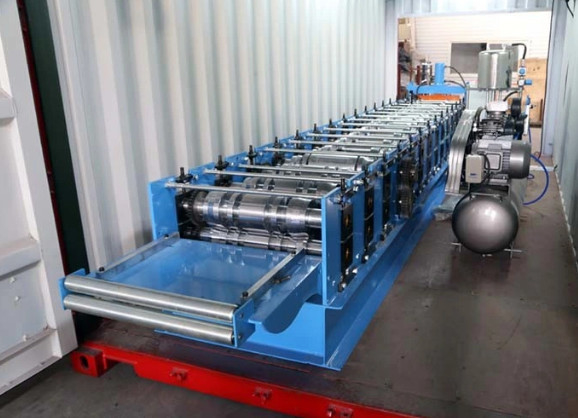

2 Rollformer with tooling 1 set

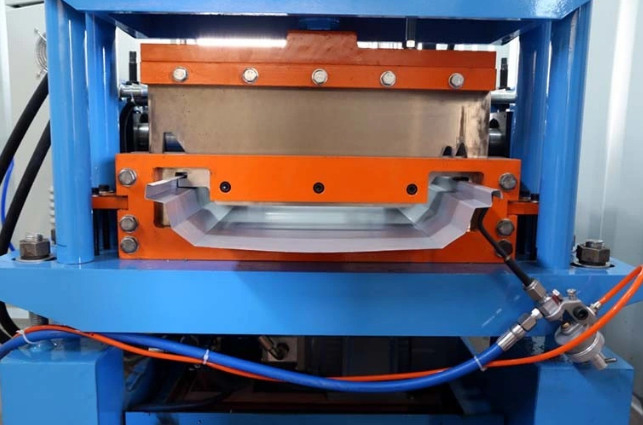

3 Hydraulic cut-off machine 1 set
4 Siemens Or Mitsubishi PLC and Touchable Screen are used for data processing and setting 1 set
5 Automatic Seamer 1 set






Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
