Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick

Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick
Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick

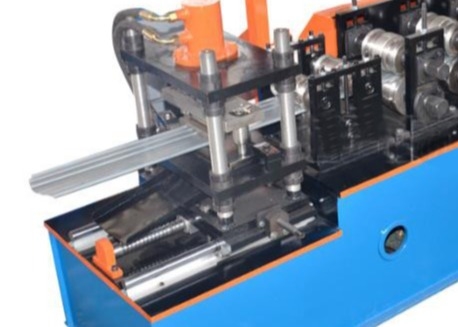

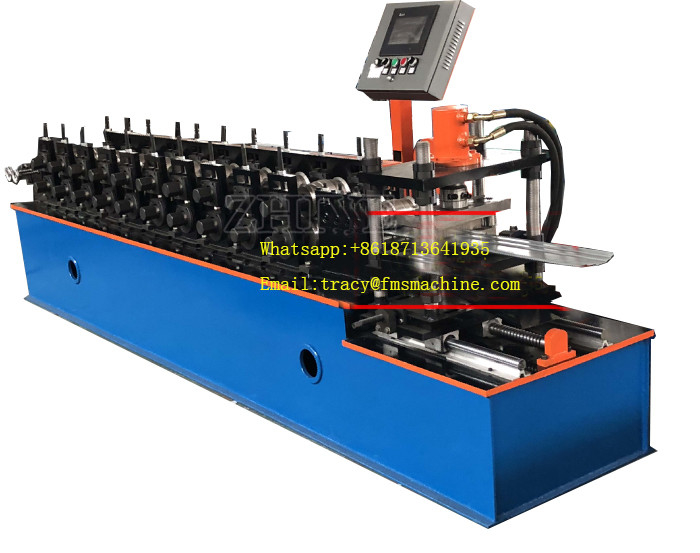

Large Image :  Palisade Decorative Fence Panel Roll Forming Machine Automatic 0.8mm Thick

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Model Number: Door Frame
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Palisade Decorative Fence Panel Roll Forming Machine Automatic Production Capacity: 0-15m/min
Voltage: 380V 50Hz Or As Request Weight: 2000 Kg
Rolling Thinckness: 0.3-0.8mm Roller Material: 45# Steel With 0.05mm Chrome
Control System: Siemens /Delta PLC
High Light:

0.8mm thick panel roll forming machine

,

palisade fence panel roll forming machine

,

decorative fence roll forming machine

Palisade Decorative Fence Panel Roll Forming Machine Automatic



   Cangzhou Famous Cold Forming Machinery Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.



   Palisade Decorative Fence Panel Roll Forming Machine Automatic,Our Fence Roll Forming Machine for different models based on different designs or customer's samples .The advantages of a metal fence are aesthetics, strong design, lightweighting and affordable cost.



Specification

No. Item Characteristic
1. Processing Material PPGI,GI
2. Processing Thickness(mm) 0.6-1.6mm
3. Main Frame/Middle plate

H400 Steel Beam/

20mm Steel plate

4. Material of Rollers 45# steel, with hard chrome coated
5. Diameter of Shaft 100mm
6. Number of Rollers 26 stand rollers
7. Production Speed 0-14m/min
8. Roller Driven Decelerating Motor+20A Chain Transmission
9. Cutting Model Hydraulic Profile Cutting
10. Length Measurement Encoder
11. Control Style PLC
12. Operation Model Button + Touch Screen
13. Total Power 27.5kw
14. Voltage 380V 50HZ or at buyer's request
15. Testing Material Q195

Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
