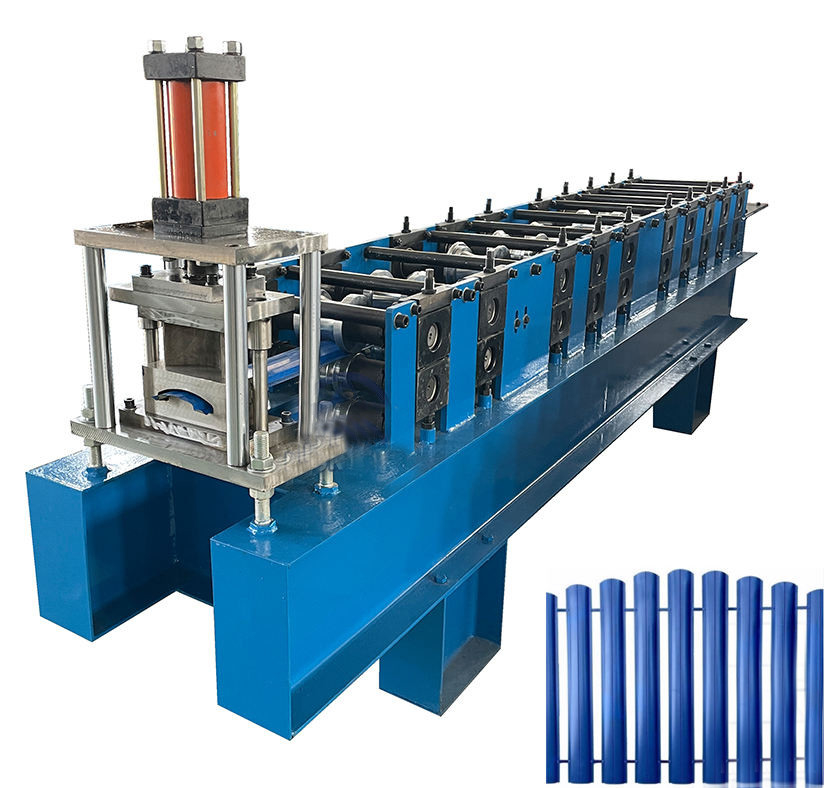

Metal Picket Fence Cold Roll Forming Machine 3 Phases

Metal Picket Fence Cold Roll Forming Machine 3 Phases

picket fence cold roll forming machine

3 phases cold roll forming machine

picket fence roll former machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Model Number:

Door Frame

Contact Us
Request A Quote
Metal Picket Fence Cold Roll Forming Machine 3 Phases
Metal Picket Fence Cold Roll Forming Machine 3 Phases Metal Picket Fence Cold Roll Forming Machine 3 Phases
Product Details
Product Name:
Metal Picket Fence Roll Forming Machine Fence Lines America
Voltage:
380V 50Hz 3 Phases
Production Capacity:
10-30 M/min
Dimension(L*W*H):
4.5*1*1 M
Rolling Thinckness:
0.3-0.8 Mm
Roller Material:
45# Steel With 0.05mm Chrome
Weight:
1500 Kg
Highlight:

picket fence cold roll forming machine

,

3 phases cold roll forming machine

,

picket fence roll former machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price Customized High Speed PU Door Roller Shutter Roll Forming Machine online Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Get Best Price
Good price 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size online Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Get Best Price
Good price 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System online Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Get Best Price
Good price PLC Control System 3T Shutter Door Roll Forming Machine For Doors online Video

PLC Control System 3T Shutter Door Roll Forming Machine For Doors

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

Metal Picket Fence Roll Forming Machine Fence Lines America

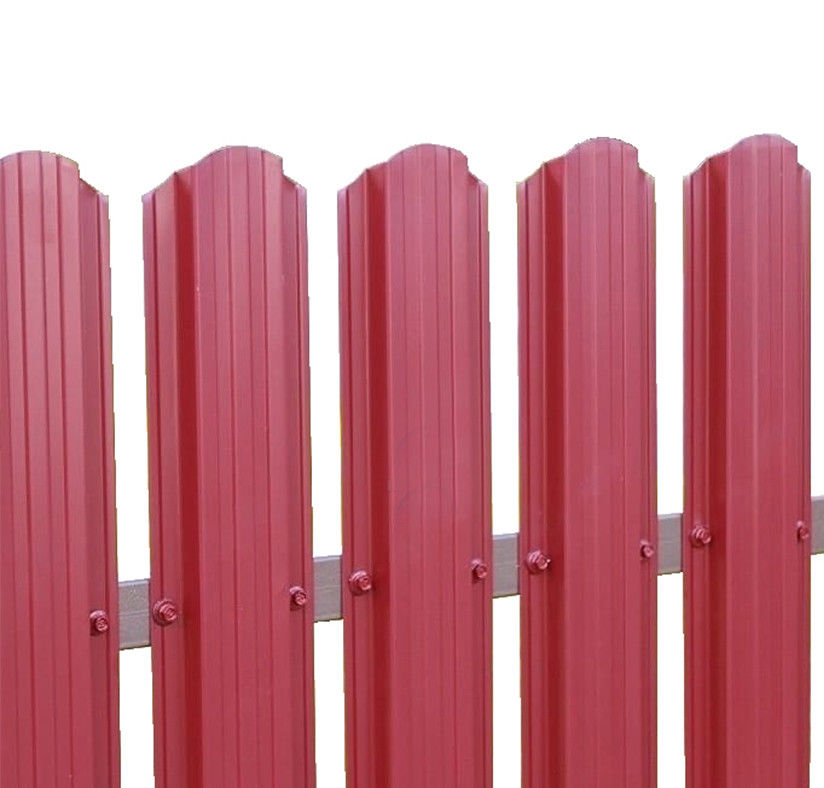

   Metal Picket Fence Roll Forming Machine Fence Lines America,Metal Picket fence is a new solution to the classical approach to the construction of fences.
It is roll formed from light-gauge sheet metal with polymer coating.Being an original solution of landscape design, a fence made of Metal Picket fence imitates a natural fence made of wood and, thanks to its structure, allows creating an attractive appearance around the enclosed territory.

The advantages of a metal fence are aesthetics, strong design, lightweighting and affordable cost.



Specification

Part details Item Name Specification
Material Raw material PPGI
Thickness 0.3-0.6 mm
Machine Roller station 10
Shaft diameter 50 mm
Shaft material 45# steel with 0.05mm chrome
Roller material hardness 30-40 HRC 45# steel with 0.05mm chrome
Machine size About 4.5×1×1 m
Machine weight About 1.5 ton
Machine color As customer' request
Working speed 10-20 m/min
Cutter Hardness 50-65 HRC
Cutting tolerance ± 1 mm
Material Cr 12
Operate Hydraulic cutting
Power Driving way Chain 1 inch
Main power 4 kw
Pump power 3 kw
Voltage

380v/50HZ,3P or customize

as customer' request
Control system PLC brand Delta made in Twaiwan
Screen Touchable screen
Language Chinese and English or add language as customer need
Decoiler Operation Manual
Weight capicatity 5 ton
Price Free as gift
Receiving table Operation Manual
Length 3 m
Price Free as gift



Guarantee



   1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery

  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
