Product Details:
Payment & Shipping Terms:
|
| Product Name: | Lock Seam Metal Door Roll Former No Nails Self Locking Roll Forming Machine | Production Capacity: | 8-15m/min |
|---|---|---|---|
| Control System: | PLC Control | Voltage: | 380V 50Hz 3phases |
| Roller Material: | Cr 12 Mold Steel With Quenched Treating | Raw Material Thickness: | 0.42-0.48mm |
| Dimension(L*W*H):: | 5-12m*1.3m*1.3m | Material Of The Cutting Plate: | Cr12 |
| Cutting Device: | Hydraulic Cutting | ||
| High Light: | lock seam metal roll former,0.48mm metal roll former,self locking metal roll forming machine |
||
FMS roll forming machinery CO.,Ltd is a professional manufacturer designing and producing roll forming machines established in June 1995. We are ready to provide quality products and excellent service to our customers with our company motto "Quality first and nothing but credit".

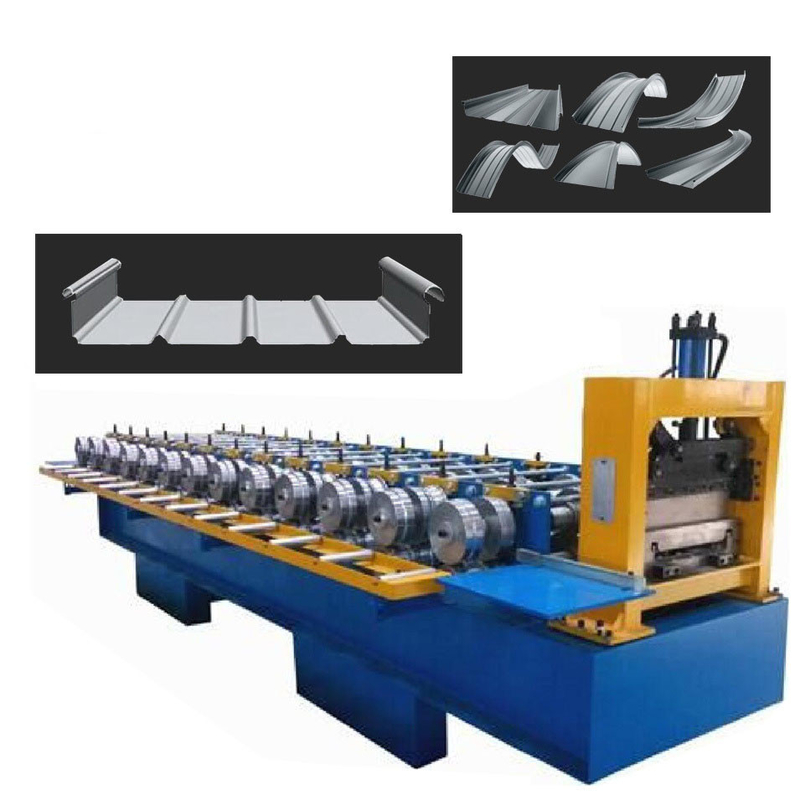

Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
Equipment Detailed Parameters:
| Article No. | Item Name | Specification |

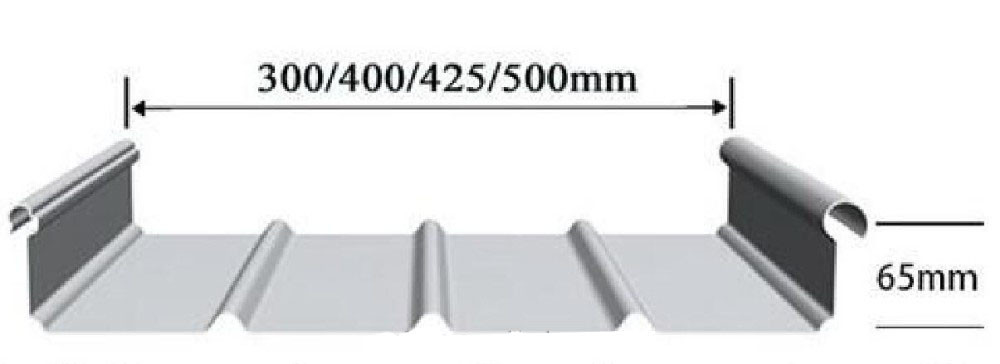

| 1 | Effective width | 300/400/425/500 mm coil sheet |
| 2 | Thickness of feeding material | 0.42-0.48 mm coil sheet |
| 3 | Roller station | 10-15 stations |
| 4 | Shaft Diameter | 55-75mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 2.5-8 ton |
| 9 | length | 5.5 m-11m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 8 Tons |
| 13 | Motor | 3kw-7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6 inch-2 inch |
| 16 | Cutting system | Hydraulic cutter |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: John Zhao
Tel: +8618832712808
