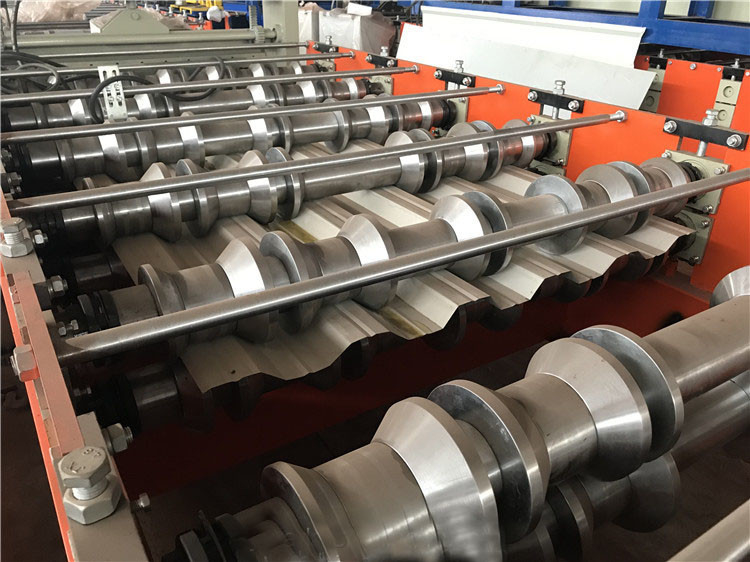

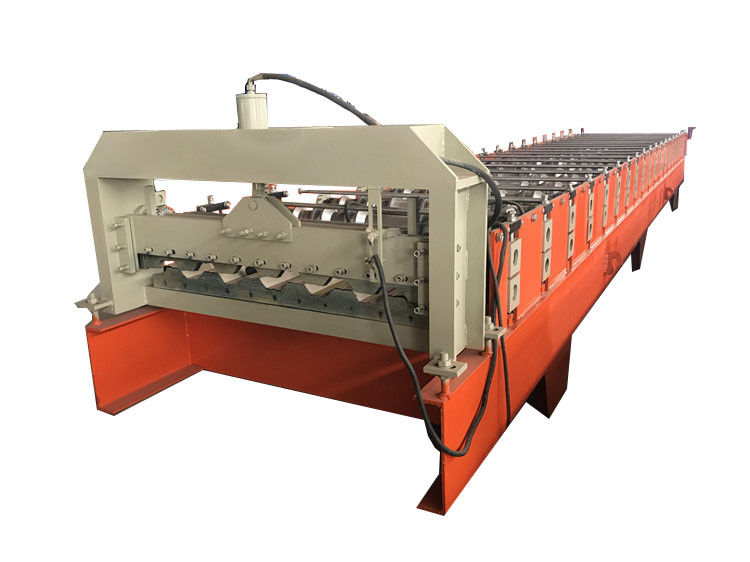

Canada Ps3 Roofing Sheet 1mm Wall Panel Roll Forming Machine Hydraulic

Canada Ps3 Roofing Sheet 1mm Wall Panel Roll Forming Machine Hydraulic
Canada Ps3 Roofing Sheet 1mm Wall Panel Roll Forming Machine Hydraulic Canada Ps3 Roofing Sheet 1mm Wall Panel Roll Forming Machine Hydraulic

Large Image :  Canada Ps3 Roofing Sheet 1mm Wall Panel Roll Forming Machine Hydraulic

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Canada PS3 Panel Roll Forming Lines Roofing Sheet Roll Forming Machine Rolling Thinckness: 0.3-1mm
Voltage: 380V /50Hz/3pH Or As Customer′s Requirements Weight: 6.5 Tons
Feeding Width: 914-1250mm Roller Material: 45# With 0.05mm Chrome
Dimension(L*W*H): 6500*1300*1100mm Power: Hydraulic
High Light:

1mm wall panel roll forming machine

,

hydraulic wall panel roll forming machine

,

hydraulic rollformers

Canada PS3 Panel Roll Forming Lines Roofing Sheet Roll Forming Machine



   PS3 Panel Roll Forming Lines are designed for high volume producers in the steel metal building industry,well build to your specific panel design from 20 to 30 gauge. Our lines are built to be flexible ,high speed and robust for tough production environments.

   The main width of feeding coil material including: 914mm,1000,1219mm,1220mm and 1250mm. Then the effective width of roof tile is different.

   The capacity of 40m/min 0.14mm thickness G550 hardness roof panel roll forming machine metal spandek machine can be 8-15m/min, 20m/mim, 8-40m/min. There are two automatic roof panel roll forming machine systems.



    Hydraulic motor roof panel roll forming machine. Power is from hydraulic motor. Hydraulic oil supply the power to roof panel roll forming machine


Specification
Article No. Item Name Specification
1 Width of feeding material 1250 mm coil sheet
2 Thickness of feeding material 0.3-0.8 mm coil sheet
3 Roller station 9-15 stations
4 Shaft Diameter 55-95 mm
5 Productivity 8-12 m/min
6 Rollers' material 45# steel forge
7 Shaft material 45# steel
8 Weight 4.5 ton
9 length 7.5 m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 5 tons
13 Motor 7.5 kw
14 Driving way Chain transmission
15 Chain size 1.5 inch
16 Cutting system Hydraulic cutter



Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

  40% in advance as down payment
  60% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port
  The Delivery Time: 30 days after the down payment is received.
