Product Details:
Payment & Shipping Terms:
|
| Product Name: | South Africa IBR Trapezoidal Roof Sheet Rolling Machine Tile Making Machine | Production Capacity: | 15 M/min |
|---|---|---|---|
| Voltage: | 380V /50Hz/3pH Or As Customer′s Requirements | Weight: | 6.5 Tons |
| Key Selling Points: | High Productivity | Shaft Material: | 45# Steel Outer Diameter: 75mm |
| Material Of Cutting Blade: | Cr12 | Control System: | PLC |
| High Light: | ibr metal roofing sheet forming machine,plc metal roofing sheet forming machine,trapezoidal roof tile roll forming machine |
||

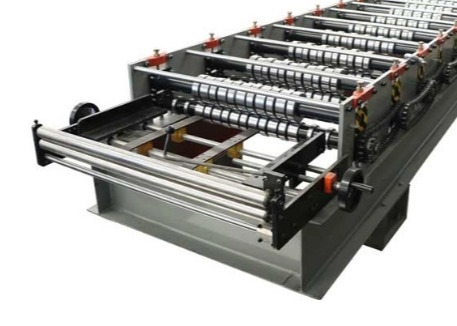

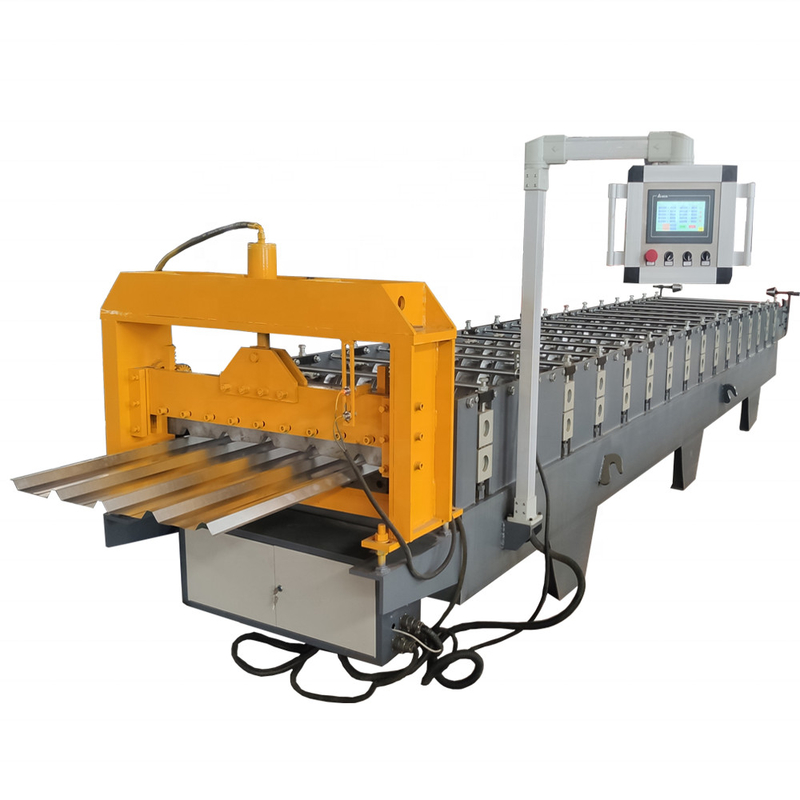

South Africa IBR Trapezoidal Roof Sheet Rolling Machine Tile Making Machine
trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1200mm /1220mm / 1250mm. After rolling product width is 840/1000mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm.
Hydraulic motor roof panel roll forming machine. Power is from hydraulic motor. Hydraulic oil supply the power to roof panel roll forming machine
Specification
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1000 mm coil sheet or as request |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 13 stations |
| 4 | Shaft Diameter | 70 mm |
| 5 | Productivity | 3-15 m/min |
| 6 | Rollers' material | 45# steel with 0.05mm chrome |
| 7 | Shaft material | 45# steel with 0.05mm chrome |
| 8 | Weight | 6.5 ton |
| 9 | Voltage | 380V 50Hz 3phases |
| 10 | Control | PLC |
| 11 | Motor | 5.5 kw |
| 12 | Driving way | Chain transmission |
| 13 | Chain size | 1 inch |
| 14 | Cutting system | Hydraulic cutter |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
