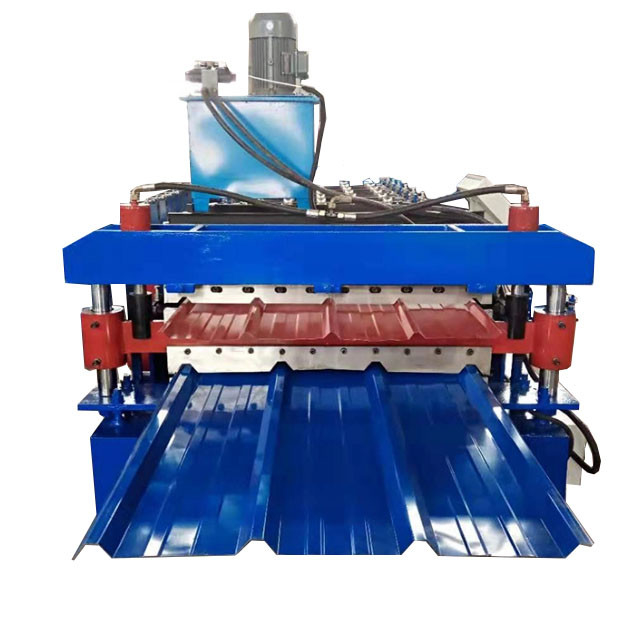

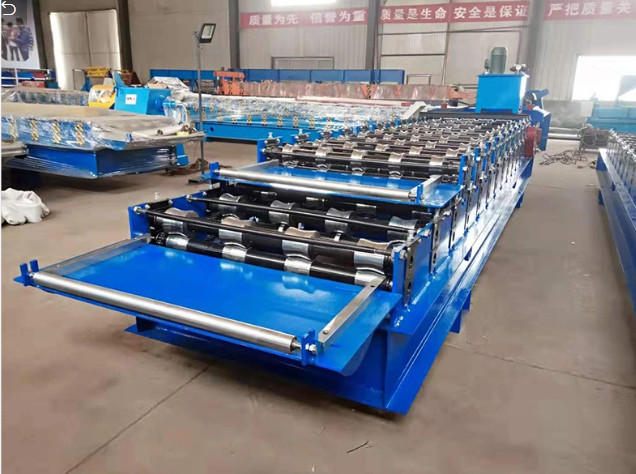

Galvalume Tr4 Tr5 Double Layer Roll Forming Machine Roofing Trapezoidal

Galvalume Tr4 Tr5 Double Layer Roll Forming Machine Roofing Trapezoidal
Galvalume Tr4 Tr5 Double Layer Roll Forming Machine Roofing Trapezoidal

Large Image :  Galvalume Tr4 Tr5 Double Layer Roll Forming Machine Roofing Trapezoidal

Product Details:
Place of Origin: CHINA
Brand Name: CANGZHOU FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Tr4 Tr5 Roofing Trapezoidal Roll Forming Machine For The Americas Market Raw Material: Galvalume, Galvanized, PPGI, Aluminum
Control System: PLC Control System Thickness: 0.3-0.8
Type: Automatic Voltage: 380V Or 220V
Roller: High Grade 45# Steel Shaft: 75mm
High Light:

tr4 double layer roll forming machine

,

galvalume double layer roll forming machine

,

tr5 double layer forming machine

Tr4 Tr5 Roofing Trapezoidal Roll Forming Machine For The Americas Market



    New Design Double Layer TR 4 TR 5 Roofing Metal Sheet Galvanized Steel Trapezoidal I B R Profile Cold Roll Forming Making Machine For The South American Market

   1. Components:
   1. Decoiler
   2. Coil sheet guiding and adjusting equipment
   3. Film covered device(optional)
   4. Main roll forming system
   5. Hydraulic pump station
   6. PLC control system
   7. Cutting device
   8. Run-out table
   2. Work flow:
Decoiling the sheet----sheet guilding----film covering(option)----roll forming----PLC controlling----hydraulic cutting----receiving the finished panel



Specification



No. Tr4 Tr5 Roofing Trapezoidal Roll Forming Machine For The Americas Market
1 Suitable to process Galvanized/Aluminum/Color steel sheet
2 Width of plate 1250mm
3 Thickness of plate 0.3-0.8mm
4 Rollers High grade 45# steel, with hard chrome plating
5 Forming steps 16
6 Sprocket chain 1.5 inch
7 Pump station power 4kw
8 Shaft 75mm, high grade 45# steel, heat treatment
9 Hydraulic oil pump CB-E310
10 Weight About 5.0 tons
11 Productivity 8-12m/min
12 Cutting head Cr12 mould steel with quenched treatment
13 Control system TAIDA brand PLC control
14 Voltage 380V 3Phase 60Hz
15 Motor power 4kw
16 Dimension About 6.8m*1.5m*1.5m
17 Hydraulic pressure 10-12mpa
18 Index error of length ±1mm
19 The temperature range of working line -35-50°

Guarantee

   1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



   40% in advance as down payment

   60% is paid before the shipment is processed



Delivery



   FOB: Tianjin Xingang Port

   The Delivery Time: 30 days after the down payment is received.
