Customized 3-4m/Min Wall Panel Roll Forming Machine High Efficiency

4m/min wall panel roll forming machine

customized wall panel roll forming machine

roof panel roll forming machine 3m/min

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Request A Quote

Product Details

Product Name:

Customized COR Wall Tile Panel Cold Roll Forming Machine 3-4m / Min High Efficiency

Suitable Material:

PPGI/PPGL/Gi/Gl

Profile Drawing:

Customized

Suitable Thickness:

0.3-0.8mm

Key Selling Points:

High Productivity

Warranty Of Core Components:

1 Year

Cutting Blade Material:

Cr12 Frequency Quenching

Speed:

1.5-2m/Min

Highlight:

4m/min wall panel roll forming machine

customized wall panel roll forming machine

roof panel roll forming machine 3m/min

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Get Best Price

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Get Best Price

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Get Best Price

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Get Best Price

86-317-2016816

Contact Now

Product Description

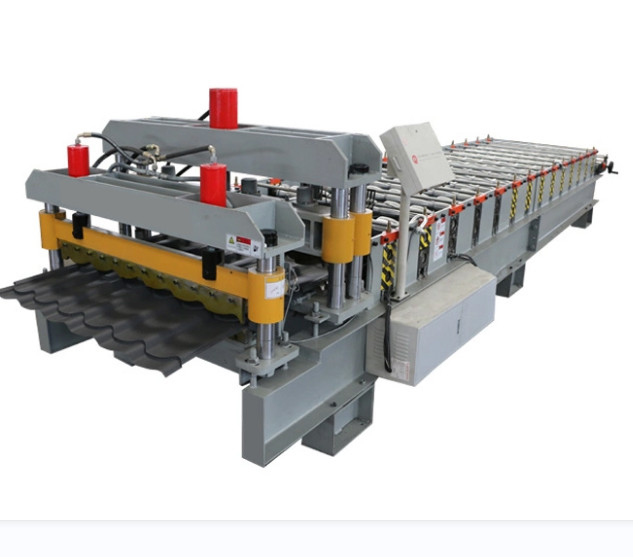

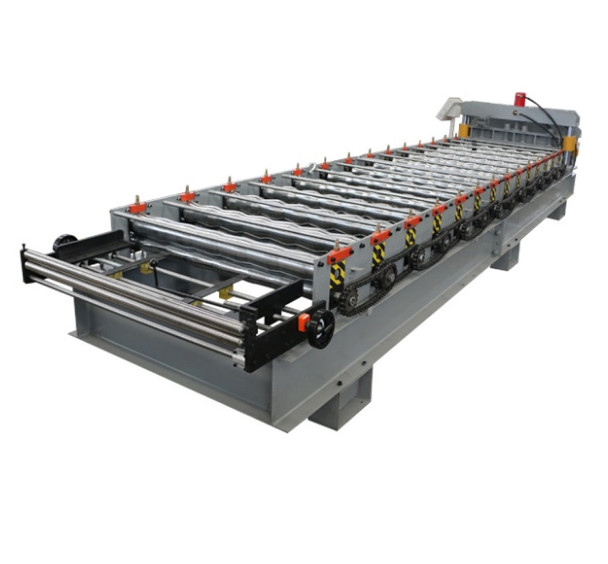

Customized COR Wall Tile Panel Cold Roll Forming Machine 3-4m / Min High Efficiency

Customized COR Wall Tile Panel Cold Roll Forming Machine

1. The tile formingmust use the high-number pulse input function, the high-number input performance is excellent, and the AB phase has strong anti-interference ability. And use the fixed value interrupt function to ensure the accuracy.
2. The detection part of the tile pressing machine includes: the pulse encoder for detecting the length of the colored steel tile, the up and down travel switch for the pressing, the up and down travel switch for the cutter, the up and down operation buttons for the pressing, the up and down travel button for the cutter, and the emergency stop switch , hydraulic start-stop switch, etc.
3. The executive part of the tile pressing machine has a frequency converter drive motor, a hydraulic station motor, two hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for cutters.
4. The PLC has 14 inputs/10 relay outputs, which just meets the input and output requirements. With KDN text screen, it can complete parameter setting, alarm display, help information, production data display and so on.

Specification

General Information	Coil Material	PPGI/PPGL/GI/GL
	Coil Thickness	0.3~0.8MM
	Coil Width	1200MM
	Speed	1.5~2M/MIN
	Voltage	As Customer's Request
Roll Forming Unit	Roller Station	14
	Driving Motor	5.5KW
	Shaft Diameter	70mm Solid
	Shaft Material	45# Hard Steel
	Roller Material	45# Hard Steel
	Under Frame	350H-Beam
	Sidewall Thickness	16MM
	Transmission	1 Inch Chain
	Feeding Device	1 Set With Pre-cutter
Pressing & Cutting Unit	Pressing & Cutting Type	Hydraulic Stop TO Press & Cut
	Hydraulic Pump Power	5.5KW
	Cutting Die Material	Cr12Mov
	Hydraulic Oil	46# Abrade Oil
Control Unit	Control Method	PLC
	Length Control	Encoder
	Operation	Touch Screen
	Language	Chinese & English
Auxilliary Device	---	5T Manual Decoiler
Auxilliary Device	---	Exit Rack

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
