Metal Steel Sheet Gl Making Ibr Roof Machine For Wall Construction

Metal Steel Sheet Gl Making Ibr Roof Machine For Wall Construction
Metal Steel Sheet Gl Making Ibr Roof Machine For Wall Construction Metal Steel Sheet Gl Making Ibr Roof Machine For Wall Construction

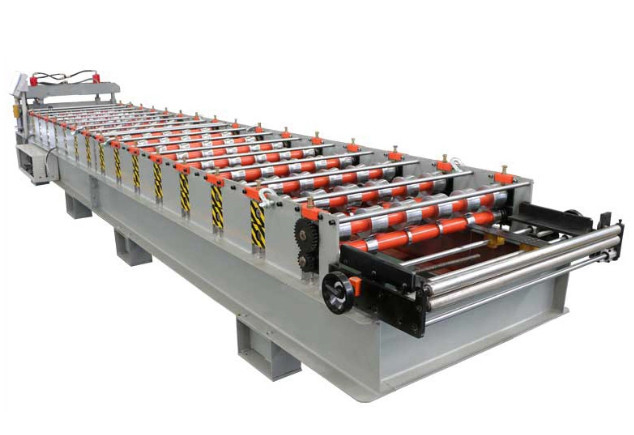

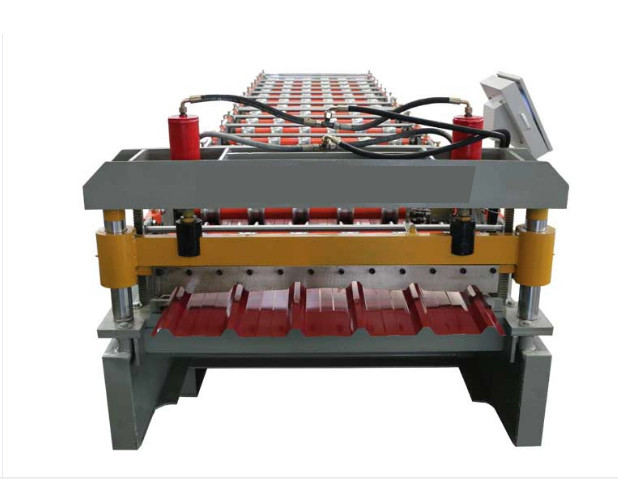

Large Image :  Metal Steel Sheet Gl Making Ibr Roof Machine For Wall Construction

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Ibr Metal Steel Sheet Roll Making Forming Machine For Roof Wall Construction Suitable Material: PPGI/PPGL/Gi/Gl
Voltage: 380V 50hz 3 Phases Dimension(L*W*H): 5700mm*1300mm*1500mm
Key Selling Points: High Productivity Warranty Of Core Components: 1 Year
Cutting Blade Material: Cr12 Frequency Quenching Control System: PLC(Imported Brand)
High Light:

gl ibr roof machine

,

wall construction ibr roof machine

,

gl ibr roof sheet forming machine

Ibr Metal Steel Sheet Roll Making Forming Machine For Roof Wall Construction


   The tile forming machine is a machine composed of uncoiler, forming, and post-forming cutting. Its color plate has a flat and beautiful appearance, uniform paint pattern, high strength and durability. It is widely used in industrial and civil buildings,such as workshops, warehouses, gymnasiums, exhibition halls, theaters and other room surfaces and walls.

Features for roll forming machine

   1. The tile formingmust use the high-number pulse input function, the high-number input performance is excellent, and the AB phase has strong anti-interference ability. And use the fixed value interrupt function to ensure the accuracy.
    2. The detection part of the tile pressing machine includes: the pulse encoder for detecting the length of the colored steel tile, the up and down travel switch for the pressing, the up and down travel switch for the cutter, the up and down operation buttons for the pressing, the up and down travel button for the cutter, and the emergency stop switch , hydraulic start-stop switch, etc.
   3. The executive part of the tile pressing machine has a frequency converter drive motor, a hydraulic station motor, two hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for cutters.
   4. The PLC has 14 inputs/10 relay outputs, which just meets the input and output requirements. With KDN text screen, it can complete parameter setting, alarm display, help information, production data display and so on.


Specification

Ibr Metal Steel Sheet Roll Making Forming Machine
1
Formed Material
PPGI,GI,AI
Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
2
Decoiler
Hydraulic automatic decoiler
Manual decoiler(will give you as free)





3





Main body
Roller station
16 rows(As your requirement)
Diameter of shaft
80mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Chain transmission
Dimension(L*W*H)
8500*1600*1600(customize)
Weight
6.5T
4
Cutter
Automatic
cr12mov material, no scratches, no deformation
5
Power
Motor Power
5.5KW
Hydraulic system power
5.5KW
6
Voltage
380V 50Hz 3Phase
As your requirement
7
Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
8
Forming Speed
15-20m/min
The speed depends on the shape of the tile and the thickness of the material.


Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

  40% in advance as down payment
  60% is paid before the shipment is processed

Delivery

  FOB: Tianjin Xingang Port
  The Delivery Time: 30 days after the down payment is received.
