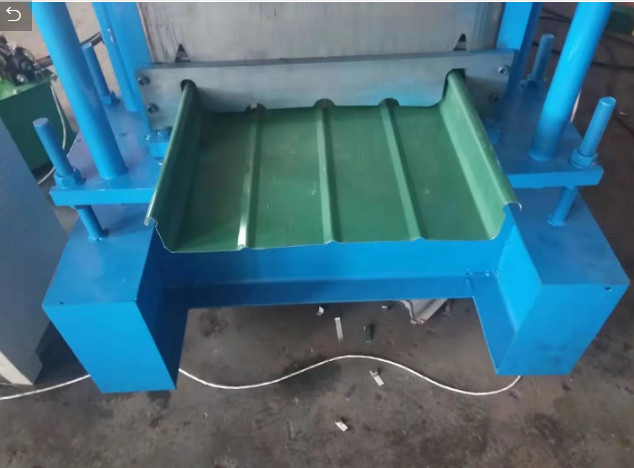

Roofing Panel Forming 0.8mm Standing Seam Rolling Machine With Plc Control

Roofing Panel Forming 0.8mm Standing Seam Rolling Machine With Plc Control
Roofing Panel Forming 0.8mm Standing Seam Rolling Machine With Plc Control

Large Image :  Roofing Panel Forming 0.8mm Standing Seam Rolling Machine With Plc Control

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Standing Seam Roofing Panel Roll Forming Machine With PLC Control Raw Materials Width: 1200mm
Materials Thickness: 0.3-0.8mm Roller Material: 45#Steel Chrome Plated
Control System: PLC Warranty Of Core Components: 1 Year
Voltage: 380V 3Phase 50Hz As Your Request
High Light:

0.8mm standing seam rolling machine

,

plc control standing seam rolling machine

,

plc control standing seam roller machine

Standing Seam Roofing Panel Roll Forming Machine With PLC Control



   Automatic standing seam roof forming machine is the special equipment for continuous rolling and cold forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.



Specification

Main parameters of Metal clip lock standing seam roof machine
Material Width 1200mm
Thickness of Coil 0.3-0.8mm
Application roofing system
Estimated Dimension 11500mmX1650mmX1800mm
Total Weight 5.8 Tons
Main Power 7.5 KW
Hydraulic Pump 4 KW
Decoiler Manual or Hydraulic Decoiler
Forming Speed 0-15m/min
Forming Station 26Rows
Bracket Welded with 36 # I-steel
Material of Shaft High Grade forged 45# Steel with 1st Rough Finished and then 2th Refined Finished
Diameter of the Roll 70mm
Material of Roller High Quality Cr12 Quenched HRC58-62 °
Processing Technology Rough Processing ---Refined Processing--Hard Chromium Plating.
Material of Rack Complete Welded Structure of A3 Steel Plate 18 mm Thickness
Transmission Chain or Gear Box or universal joint
Material of cutting blade Cr12 with Quenched Treatment 60-62 °
Cutting system Hydraulic Stop or Tracking Cutting
Voltage 380V/50HZ/3 Phase or as Customer Require



Guarantee



  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



  40% in advance as down payment

  60% is paid before the shipment is processed



Delivery



  FOB: Tianjin Xingang Port

  The Delivery Time: 30 days after the down payment is received.
