| Product Name: | Trapezoidal Wall Panel Cold Roll Forming Machine 3-4m / Min High Efficiency | Suitable Material: | PPGI/PPGL/Gi/Gl |
|---|---|---|---|
| Suitable Thickness: | 0.3-0.8mm | Speed: | 15-20m/Min |
| Touch Screen: | Touch Win | Warranty Of Core Components: | 1 Year |
| Voltage: | 380V /50Hz/3pH Or As Customer′s Requirements | Control System: | PLC(Imported Brand) |
| Cutting Type: | Hydraulic Cutting | ||
| High Light: | ppgl wall panel roll forming machine,0.8mm wall panel roll forming machine,ppgl trapezoidal roll forming machine |
||

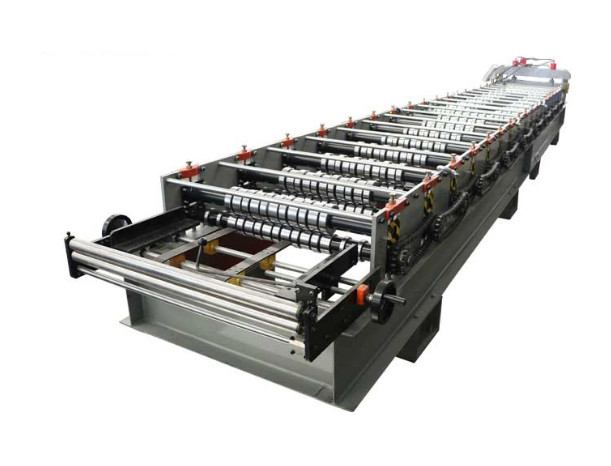

Trapezoidal Wall Panel Cold Roll Forming Machine 3-4m / Min High Efficiency
Trapezoidal Wall Panel Cold Roll Forming Machine:
Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism
-----Automatic Shearing Mechanism ----- Products Receiving Tables
Specification
| General Information | Coil Material | PPGI/PPGL/GI/GL |
| Coil Thickness | 0.3~0.8MM | |
| Coil Width | 1000MM | |
| Speed | 15~20M/MIN | |
| Voltage | As Customer's Request | |
| Roll Forming Unit | Roller Station | 18 |
| Driving Motor | 5.5KW | |
| Shaft Diameter | 70mm Solid | |
| Shaft Material | 45# Hard Steel | |
| Roller Material | 45# Hard Steel | |
| Under Frame | 350H-Beam | |
| Sidewall Thickness | 16MM | |
| Transmission | 1 Inch Chain | |
| Feeding Device | 1 Set With Pre-cutter | |
| Cutting Unit | Cutting Type | Hydraulic Stop TO Cut |
| Hydraulic Pump Power | 3KW | |
| Cutting Die Material | Cr12Mov | |
| Hydraulic Oil | 46# Abrade Oil | |
| Control Unit | Control Method | PLC |
| Length Control | Encoder | |
| Operation | Touch Screen | |
| Language | Chinese & English | |
| Auxilliary Device | --- | 5T Manual Decoiler |
| --- | Exit Rack |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
