Multi Rib Wall Roof PPGI Trapezoidal Sheet Roll Forming Machine Work Automatically

ppgi trapezoidal sheet roll forming machine

trapezoidal sheet roll forming machine automatically

multi rib trapezoidal roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Request A Quote

Product Details

Product Name:

Multi RibsTrapezoidal Sheet Wall Roof Roll Forming Machine Work Automatically

Suitable Material:

Prepainted Steel/ Gi Steel

Line Speed:

15-50m/Min

Specification:

9.5*1.45*1.5

Weight:

5000 Kg

Warranty Of Core Components:

1 Year

Voltage:

380V 50Hz 3phases, 380V 50Hz 3phases

Usage:

Roof

Highlight:

ppgi trapezoidal sheet roll forming machine

trapezoidal sheet roll forming machine automatically

multi rib trapezoidal roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Get Best Price

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Get Best Price

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Get Best Price

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Get Best Price

86-317-2016816

Contact Now

Product Description

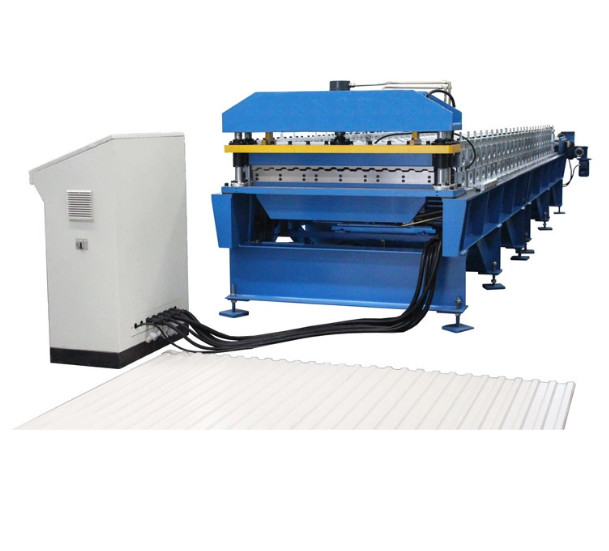

Multi RibsTrapezoidal Sheet Wall Roof Roll Forming Machine Work Automatically

.Multi RibsTrapezoidal Sheet Wall Roof Roll Forming Machine Work Automatically.Roofing sheet making machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile panel, metal deck panel, standing seam panel, K span panel and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction.

The normal machinable thickness range of our roof panel roll forming machine is 0.2mm-0.8mm, the standard or more used in international market is Gauge 26 (0.45-0.5mm), working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We confirm machine's configuration according to your drawing, specially the pitch and height of each wave.

Specification

Application
	Metal trapezoidal roof is widely used for commercial metal buildings, associated with residential and commercial. Trapezoidal roof roll forming machine is special designed for its production.
	Technical Parameters
	1		Suitable Material	PPGI Steel Coil / Galvalume Steel Coil / Embossed Aluminum Coil
	2		Material Width	914 / 1000 / 1200 / 1220 / 1250mm
	3		Material Thickness	0.3-0.8 mm
	4		Roll forming speed	10-20 m/min (Exclude Cutting Time)
Equipment List
1		Hydraulic Decoiler with Breaking device is equipped for coil processing			1 set
2		Rollformer with tooling			1 set
3		Hydraulic cut-off machine			1 set
4		Run out table or automatic stacking device			1 set
5		Siemens Or Mitsubishi PLC and Touchable Screen are used for data processing and setting			1 s

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
