Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases
Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Large Image :  Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Trapezoid Steel Panel Roll Forming Machine Roof Wall Panel Roll Forming Material: Gi,Gl, PPGL, PPGI
Roller: Chrome Plated Specification: 9.5*1.45*1.5
Weight: 4500 Kg Warranty Of Core Components: 1 Year
Voltage: 380V 50Hz 3phases, 380V 50Hz 3phases After-sales: Provide Commissioning And Installation Work
High Light:

ppgl wall panel roll forming machine

,

3phases wall panel roll forming machine

,

ppgl trapezoidal roll forming machine

Container Body Car Carriage Board Panel Cold Roll Forming Machine Plc Control

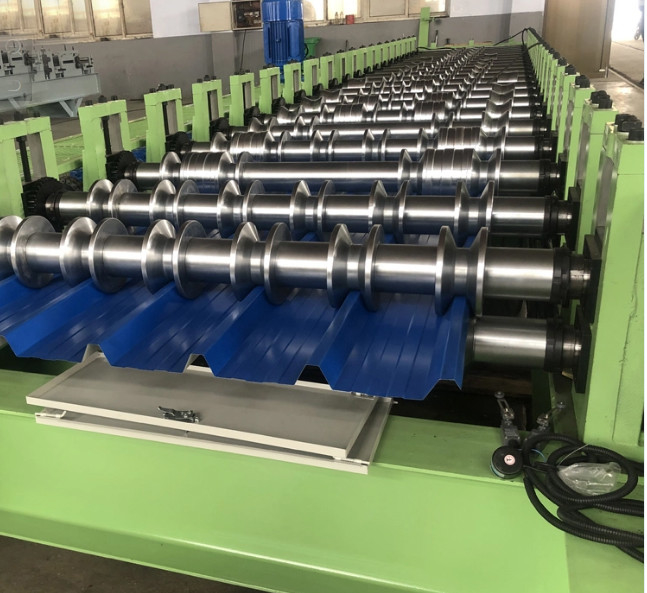

Trapezoid Steel Panel Roll Forming Machine Roof Wall Panel Roll Forming is the equipment that mainly produces trapezoidal sheet. Trapezoidal plates are very common in our daily lives. You can see that they are used in various fields, such as workshop, warehouse, carport, wall board, portable house, then why is it so widely used? Compared with traditional tiles, it has many advantages, such as light weight, high strength, heat insulation, easy installation, bright colors and waterproof, but at the same time it also has some small defects, such as sound insulation because of its thin thickness. The effect is relatively poor, and the ability to resist wind and cold is relatively poor, and it is easy to rust after a long period of rain and it is not easy to recycle.



Specification

1 Width of the plate 1219mm
2 Rollers 18 Rows
4 Power 11+11+7.5kw
5 Thickness of the plate 0.8-1.2mm
6 Productivity 0-15m/min
7 Diameter of the roller 90mm
8 Weight About4500kg
9 Voltage 380V 50Hz 3phases
10 Material of the cutting plate Cr12
11 Hydraulic 40#
12 Processing precision Within 1.00mm
13 Control system PLC control


Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
