0.3mm Custom Roll Forming Machine Metal Tile Panel Roof Sheet Making

0.3mm Custom Roll Forming Machine Metal Tile Panel Roof Sheet Making
0.3mm Custom Roll Forming Machine Metal Tile Panel Roof Sheet Making

Large Image :  0.3mm Custom Roll Forming Machine Metal Tile Panel Roof Sheet Making

Product Details:
Place of Origin: CHINA
Brand Name: CANGZHOU FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Metal Double Layer Tile Panel Roll Forming Machine Roof Sheet Making Machine Specification: 8500mm*1500mm*1500mm(L*W*H)
Control System: PLC Control Use: About 9 Tons
Machine Weight: Automatic Machine Color: 0.3-0.8mm
Roller Material: 45# Steel Machine Power: 5.5kw+3kw
High Light:

0.3mm custom roll forming machine

,

plc custom roll forming machine

,

0.3mm double layer roll forming machine

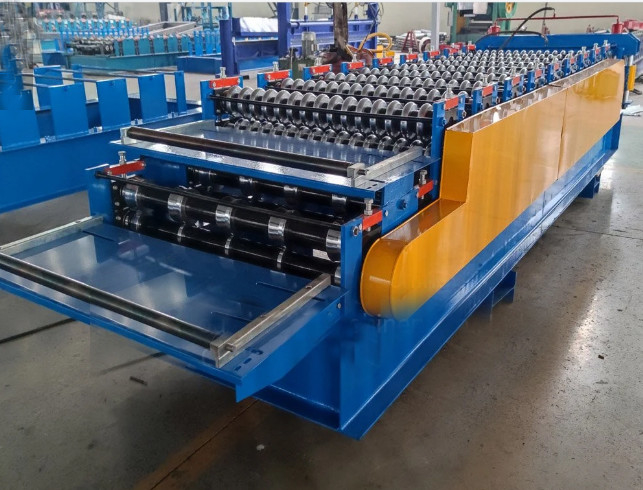

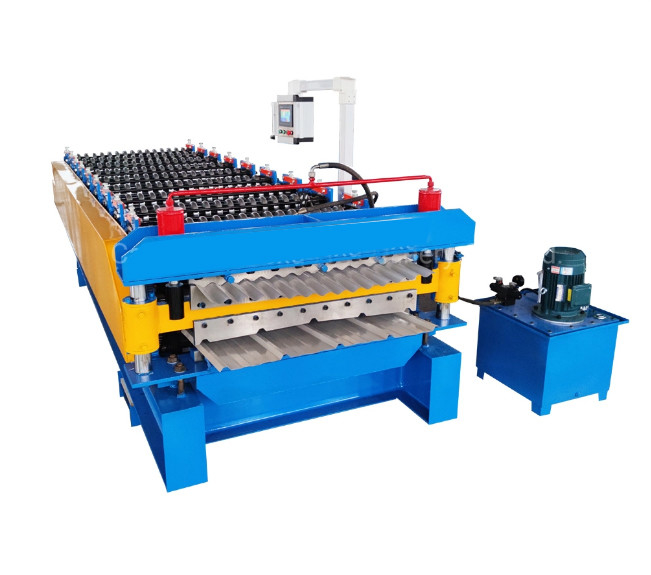

Metal Double Layer Tile Panel Roll Forming Machine Roof Sheet Making Machine



   Metal Double Layer Tile Panel Roll Forming Machine Roof Sheet Making Machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.3mm to 0.8mm. We adopt 16mm side wall panel type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.


Specification

IBR Roofing Sheet Iron Steel Corrugated Roof Sheeting Metal Double Layer Tile Panel Roll Forming Machine
Main motor power 5.5 kw
Drive 1'' single chain
Type: Wall board
Main shaft dia ¢70mm
material 45# forge steel and quenched
Roller material 45# high grade forge steel ,chrome coated 0.05mm
Roll station 9 groups for corrugated sheet and 11 groups for IBR sheet
Raw material 0.3-0.8mm
Coil width 1000mm
Working speed 10m--15m/min(Exclude cutting time)
Length Tolerance ±1.5mm
Weight of machine About 6 ton
Size of machine About 6500×1800×1500mm L x W x H
Color of machine Yellow and Blue
Coder Omron, made in Japan
Control PLC Panasonic, made in Japan.  (Also depend on client)
Computer operating panel touching screen
Cutting Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power 3KW
Blade material Cr12mov,quenched 58°-62°
Working pressure 16mpa
Cutting tolerance +/- 1.0mm


Guarantee

   1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
   2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
