Ibr Steel Roofing Sheet Double Layer Roll Forming Machine 1.5mm

Ibr Steel Roofing Sheet Double Layer Roll Forming Machine 1.5mm
Ibr Steel Roofing Sheet Double Layer Roll Forming Machine 1.5mm

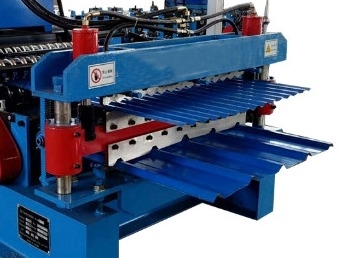

Large Image :  Ibr Steel Roofing Sheet Double Layer Roll Forming Machine 1.5mm

Product Details:
Place of Origin: CHINA
Brand Name: CANGZHOU FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Double Layer Ibr Steel Roofing Sheet Roll Forming Machine Manufacturer Forming Speed: 6-15m/Min
Control System: PLC Control Use: Roof And Wall Panel
Type: Automatic Machine Color: Customized As Customer′s Need
Roller Material: 45# Steel Material Thickness: 0.3-1.5mm
High Light:

ibr double layer roll forming machine

,

1.5mm double layer roll forming machine

,

plc control double layer forming machine

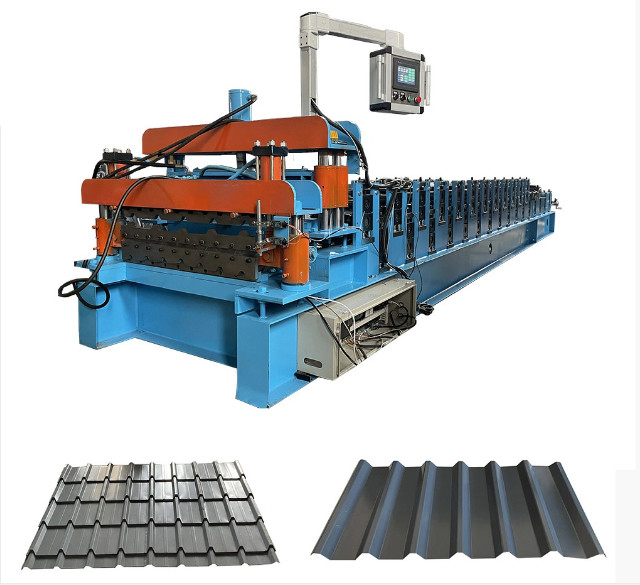

Double Layer Ibr Steel Roofing Sheet Roll Forming Machine Manufacturer



To save space and save money, some customer like to choose double layer roll forming machine, double layer roll forming machine popular sell in many countries, 2 shapes make in one machine, common it include:

1. Trapezoidal sheet and trapezoidal sheet double layer machine
2. Trapezoidal sheet and corrugated sheet double layer machine
3. Corrugated sheet and corrugated sheet double layer machine
4. Trapezoidal sheet and glazed tile sheet double layer machine
5. Corrugated sheet and glazed tile sheet double layer machine
Please noted that double layer machine only can work one layer one time, can not 2 layer work at same time,


Specification

Part details Item Name Specification
Material Raw material Galvanized steel or PPGI
Thickness 0.3-0.8 mm
Machine Roller station Depend on customer' drawing
Shaft diameter 70 mm
Shaft material 45# steel with 0.05mm chrome
Roller material hardness 30-40 HRC 45# steel with 0.05mm chrome
Machine size About 6×1.5×1.3 m
Machine weight About 7.5 ton
Machine color As customer' request
Working speed 8-20 m/min
Cutter Hardness 50-65 HRC
Cutting tolerance ± 1 mm
Material Cr 12
Operate Hydraulic cutting
Power Driving way Chain 1 inch
Main power 7.5 kw
Pump power 4 kw
Voltage

380v/50HZ,3P or customize

as customer' request

Control system PLC brand Delta made in Twaiwan
Screen Touchable screen
Language Chinese and English or add language as customer need
Decoiler Operation Manual
Weight capicatity 5 ton
Receiving table Operation Manual
Length 3 m
Price Free as gift


Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
