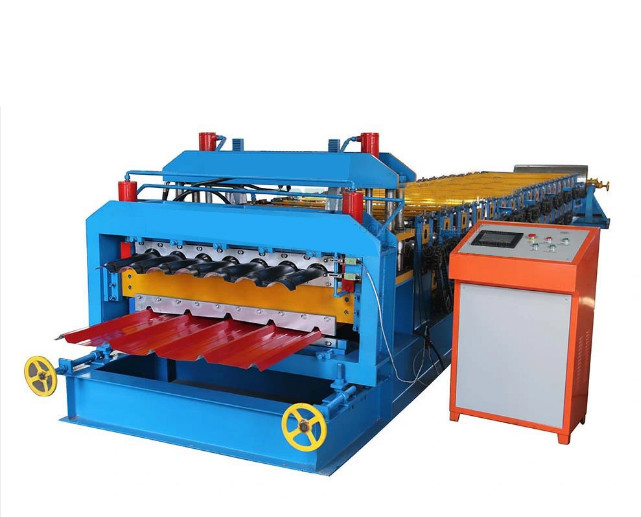

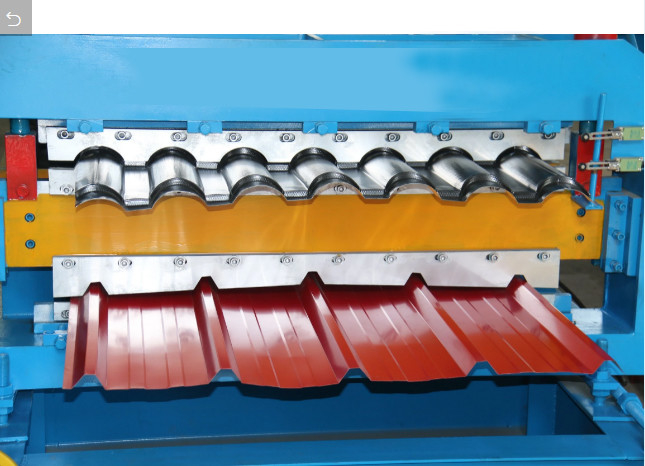

1300mm Ppgi Double Layer Roll Forming Machine Automatic Metal Roof Panel

1300mm Ppgi Double Layer Roll Forming Machine Automatic Metal Roof Panel
1300mm Ppgi Double Layer Roll Forming Machine Automatic Metal Roof Panel

Large Image :  1300mm Ppgi Double Layer Roll Forming Machine Automatic Metal Roof Panel

Product Details:
Place of Origin: CHINA
Brand Name: CANGZHOU FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Automatic Double Layer Roll Forming Machine Metal Roof Panel Machine Raw Material: Galvalume, Galvanized, PPGI, Aluminum
Control System: PLC Control Use: Roof And Wall
Type: Automatic Voltage: 380V 50Hz 3phases
Feeding Width: MAX 1300mm Capacity: 5ton
High Light:

1300mm double layer roll forming machine

,

16groups double layer roll forming machine

,

ppgi double roll forming machine

Automatic Double Layer Roll Forming Machine Metal Roof Panel Machine



Double Layer Roll Forming Machine Metal Roof Panel Machine is one most popular type of roll forming machines. Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.



Specification

Automatic Double Layer Roll Forming Machine Metal Roof Panel Machine
Main motor power 4 kw
Drive 1'' single chain
Type: Wall board
Main shaft dia ¢70mm
material 45# forge steel and quenched
Roller material 45# high grade forge steel ,chrome coated 0.05mm
Roll station 16 groups and 18 groups
Raw material 0.3-0.8mm
Coil width 1000mm
Working speed 10m--15m/min(Exclude cutting time)
Length Tolerance ±1.5mm
Weight of machine About 9 ton
Size of machine About 7500×1800×1500mm L x W x H
Color of machine Yellow and Blue
Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel touching screen
Other electrical element Schneider
Cutting Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power 3KW
Blade material Cr12mov,quenched 58°-62°
Working pressure 16mpa
Cutting tolerance +/- 1.0mm


Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
