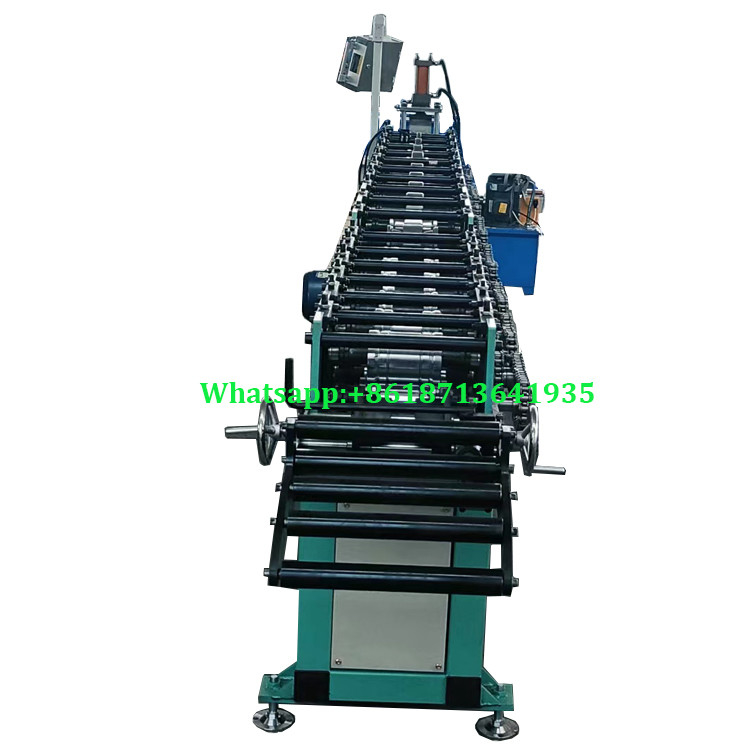

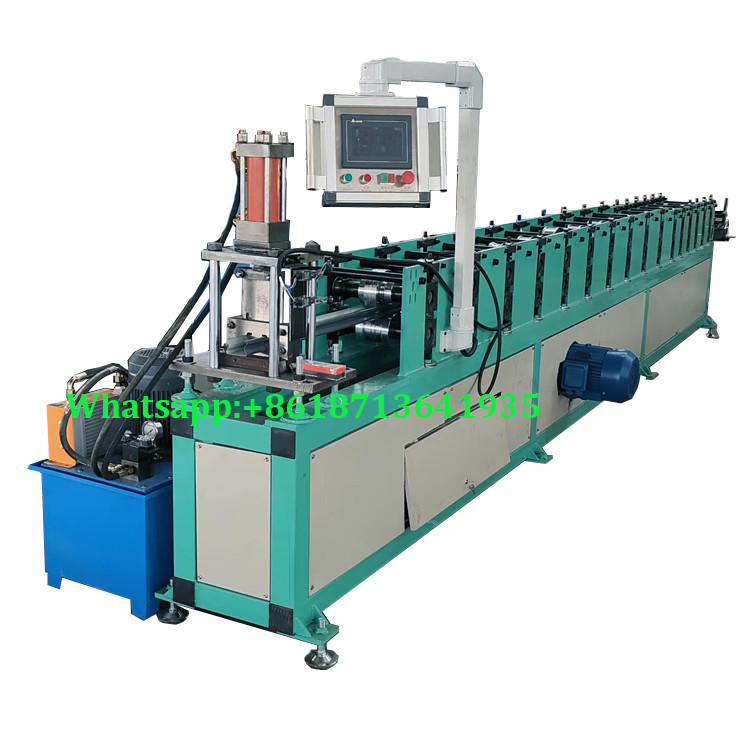

Galvalume Computer Controlled Shutter Door Roll Forming Machine For U Guide Rail

Galvalume Computer Controlled Shutter Door Roll Forming Machine For U Guide Rail
Galvalume Computer Controlled Shutter Door Roll Forming Machine For U Guide Rail

Large Image :  Galvalume Computer Controlled Shutter Door Roll Forming Machine For U Guide Rail

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Shutter Slat
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Rolling Shutter Door Guide Rail Roll Forming Machine Computer Controlled U Guide Rail Raw Material: Galvalume, Galvanized, PPGI
Working Speed: 8-12 Meter /min Condition: New
Voltage: 380V 50 HZ Or Customized Color: As Per Customer Request
Control System: PLC(imported Brand)
High Light:

galvalume shutter door roll forming machine

,

50hz shutter door roll forming machine

,

computer controlled roller shutter slat machine

Rolling Shutter Door Guide Rail Roll Forming Machine Computer Controlled U Guide Rail

Shutter Door Roll Forming Machine

Rolling Shutter Door Guide Rail Roll Forming Machine Computer Controlled U Guide Rail.Shutter door is main made up of U guaid rail, shutter door salt and bottom guaid. As a very important part, siding U guaid rail need work with shutter door salt and bottom guide. The slidting U guide rail fix on the two side of shutter door, with it, the shutter door strips can move up and down easy, in this way, the shutter door can open and closed smoothly.


Shutter Door Roll Forming Machine Guide Rail Machine Working Flow



3.5T Decoiler -- Feeding Table -- Main Roll Forming Machine -- PLC Control System -- Hydraulic Cutting -- Product Receiving Table




Specification











1







Row Material

Type Colored steel plate, galvanized board,
Feeding width According to the profile
Thickness 1-2mm







2







Main body

Roller station 12 steps
Diameter of shaft 50mm
Shaft material 45# Steel
Roller material 45# Steel
Frame 200mm H Steel
Frame thickenss 14 mm
Operation Manual and Automatic
Working speed 8-12 m/min
Size (L*W*H) About 19600*1350*1610mm
Weight About 6.0 Tons
Cutting type Fly saw cutting
Material of blade Cr12





3





Power

Motor power 4 kw
Hydraulic power 4 kw
Voltage 380V 50Hz 3phases or Customerization
Driving way By Chain





Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
