Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4MM Thickness | Raw Material: | Galvalume, Galvanized, PPGI |
|---|---|---|---|
| Cutting Type: | Automatic Hydraulic Cutting | Production Capacity: | 8-15m/min |
| Voltage: | 380V 50Hz 3phases Or As Your Requirement | Core Components: | Motor, Other, PLC |
| Shaft Material: | 45# Steel | Cutting Blade Material: | Cr 12 Mov |
| High Light: | zinc shutter door roll forming machine,0.12mm shutter door roll forming machine,aluminium shutter door forming machine |
||

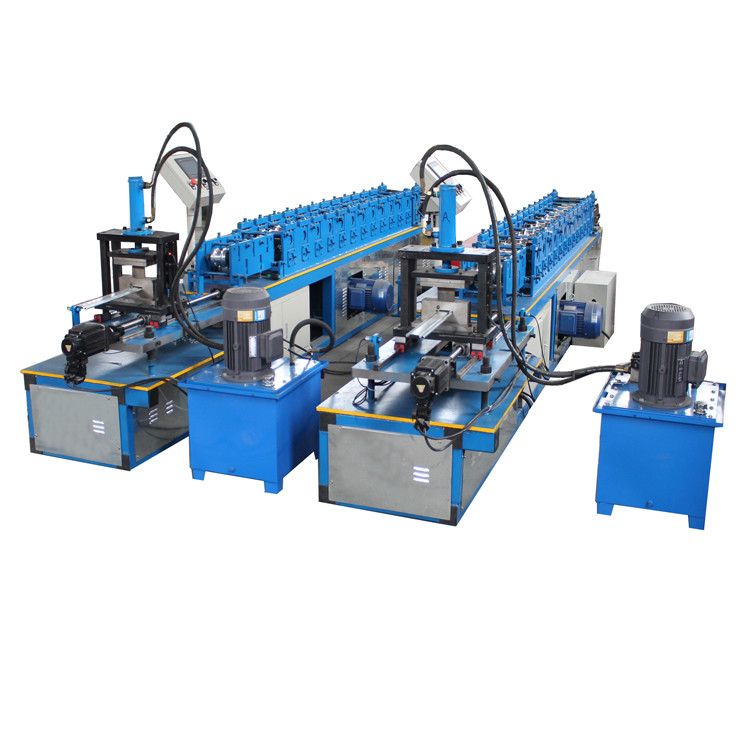

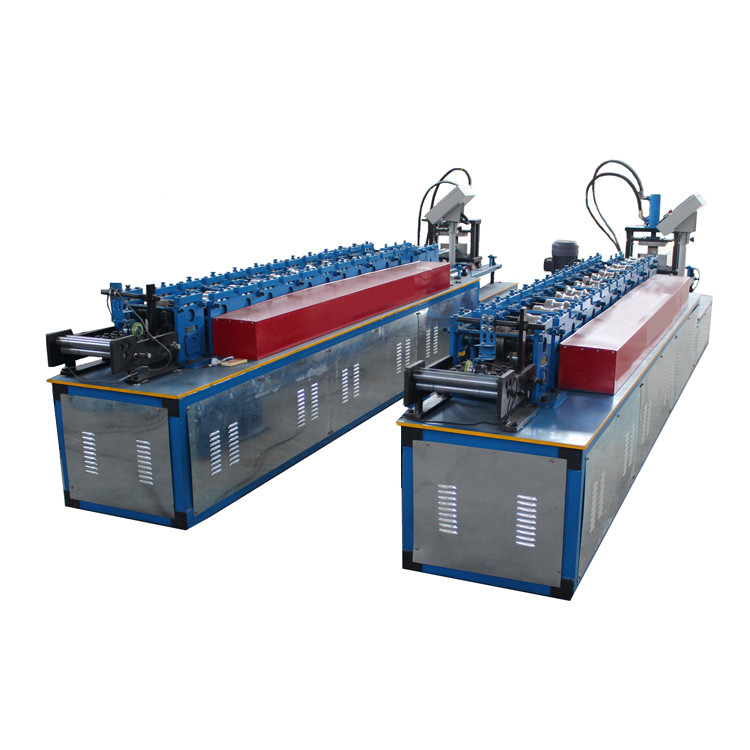

Metal Rolling Shutter Door Slats Roll Forming Machine Speed 20-30m/Min
The shutter door is a door or window that consists of a number of horizontal bars (or sometimes strip or mesh systems) that are hinged together. On the door, the action may be maneuverable. It provides weather protection and protects windows from vandalism and burglary.
Rolling shutter doors have many applications, including vans, garages, kitchens, schools, prisons and warehouse doors. In some parts of the world, rolling shutters are subsidized by local governments due to inherent safety concerns. In areas that are frequently exposed to inclement weather, the rolling door is used as an insulation method and the window can be protected from hail damage.
Specification
| Suitable material | Color steel sheet , galvanized steel sheet, |
| Main motor power | 5.5 KW with Cycloidal reducer |
| Thickness of material | 0.3mm~0.8mm |
| Hydraulic station power | 3KW(Lichao,Shanghai) |
| Hydraulic oil | 36#,40# |
| Diameter of principal axis | 50mm |
| Material expand width | 140-180mm |
| Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| Material of roller | Cr12 steel quenched |
| Processing speed | 15-20m/min |
| Processing precision within | About 10m |
| Material of cutting blade | Cr12Mov with quenched treatment |
| Kind of drive | Chain |
| Roller station | 13 Roller Station |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
