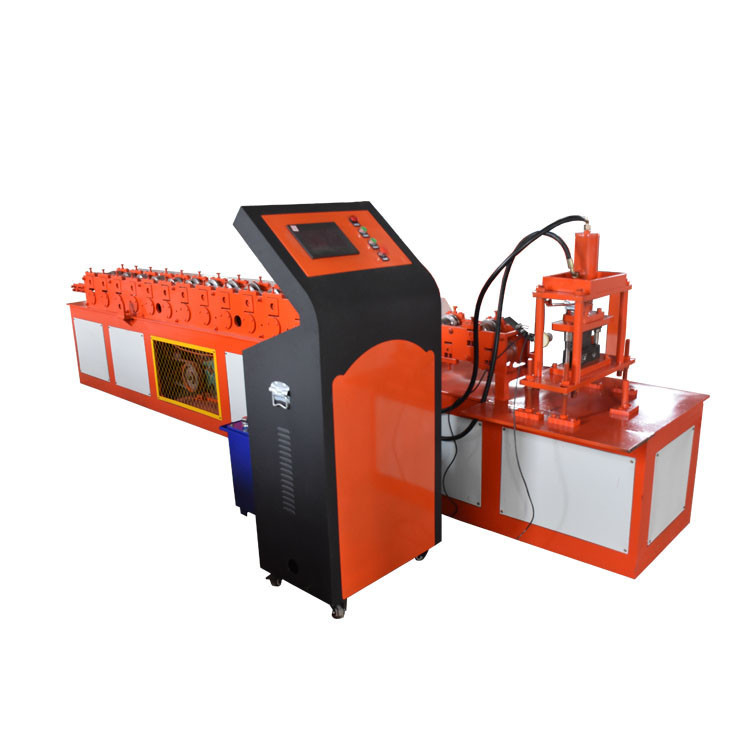

Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm

Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm
Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm

Large Image :  Plc Ppgi Roller Shutter Door Forming Machine 0.3-1.2mm

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Shutter Slat
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Shutter Door Section Roll Forming Machine Shutter Slat Raw Material: Galvalume, Galvanized, PPGI
Production Capacity: 8-15m/min Voltage: 380V 50HZ 3Pa
Weight: 3t Thickness: 0.3-1.2mm
Dimension(L*W*H): 5000mm*1000mm*1500mm Material Of Rollers: 45#steel Hard Chrome Coated
Control System: PLC(imported Brand)
High Light:

ppgi roller shutter door forming machine

,

1.2mm roller shutter door forming machine

,

plc door shutter roll forming machine

Shutter Door Section Roll Forming Machine Shutter Slat

Production Process:

Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving

Warranty

one year, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.(plane ticket, food, hotel and per day 80$ salary)



Specification

Suitable Material Material GI, PPGI, PPGL
Width 170 mm
Thickness 0.3-1.2 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 12 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50 mm
Material of cutting blade Cr12 Heat Treatment
Cutting Mode Hydraulic Guide Column
Speed 15-20 m/min
Side plate thickness 16 mm
Chain size 1 inch
Total power 4 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 5000mm*1000mm*1500mm
Weight(About) 3 tons
Length measurement Encoder
Control mode Delta PLC
Operating mode Button + Delta Touch screen



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
