Product Details:
Payment & Shipping Terms:
|
| Product Name: | Square Downspout Pipe Roll Forming Machine Full Automatic | Production Capacity: | 15m/min(not Include Cutting Time) |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Dimension(L*W*H): | Around 2m*1.5m*1.5m |
| Rolling Thinckness: | 0.4-0.6mm | Warranty: | 1 Year |
| Roller Material: | 45#steel Chrome Plated | Suitable Material: | PPGI PPGL Aluminium |
| High Light: | 0.6mm down pipe roll forming machine,ppgi down pipe roll forming machine,cold metal shaping square downspout machine |
||

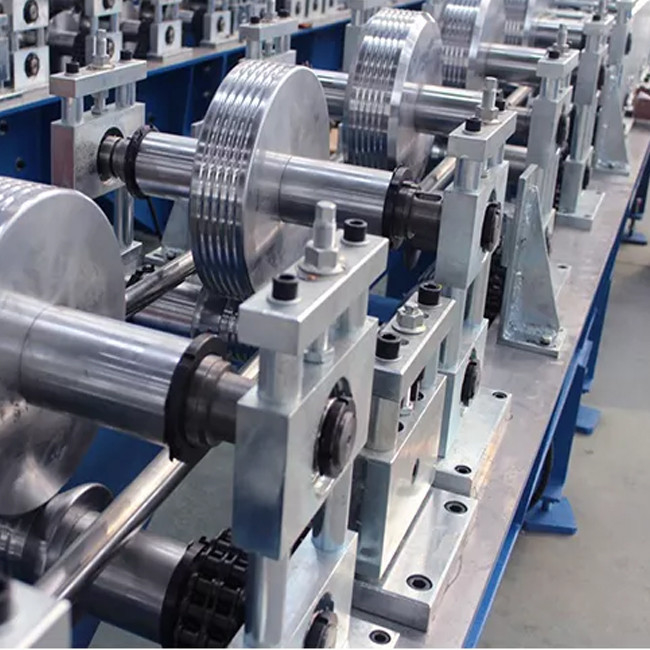

Square Downspout Pipe Roll Forming Machine Full Automatic
|
No.
|
Item
|
Description
|
|
1
|
Coil width
|
According to the final profile
|
|
2
|
Rolling speed
|
0-15m/min
|
|
3
|
Rolling thickness
|
0.4-0.6mm
|
|
4
|
Control system
|
PLC (Panasonic) as list in the note
|
|
5
|
Un Coiler
|
3T manual de-coiler
|
|
6
|
Roller Stations
|
20 stations
|
|
7
|
Roller Material
|
ASTM1045 chrome plated surface with chrome
|
|
8
|
Shaft Material and DIA
|
￠65mm, material:45# with quenching and tempering
|
|
9
|
Post cutting
|
Machine adopts hydraulic cutting system
|
|
10
|
Material Of Cutting
|
Cr12, 58-62 HRC hardness
|
|
11
|
Maim Motor Power
|
5.5kw
|
|
12
|
Hydraulic Station Power
|
5.5kw
|
|
13
|
Hydraulic pressure
|
12-16Mpa adjustable
|
|
14
|
Structure Of The Stations
|
Wall panel
|
|
15
|
Bending machine
|
With Main machine together
|
|
|
Full Automatic Square Downspout Pipe Roll Forming Machine
|
|
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Ryan Li
Tel: +8616630738635
