Name: Circular Three Waves 0.5mm Gutter Downspout Machine 15m/Min Forming
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout
Price: 16,500.00 USD
Availability: InStock

Home > products > Down Pipe Roll Forming Machine >

Circular Three Waves 0.5mm Gutter Downspout Machine 15m/Min Forming

three waves gutter downspout machine

0.5mm gutter downspout machine

15m/min downspout forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU Famous

Certification:

ISO CE

Model Number:

Downspout

Request A Quote

Product Details

Product Name:

Circular Down Pipe Roll Forming Machine Water Down Pipe Making Line

Production Capacity:

10-15m/min

Voltage:

380V 50Hz 3phases

Cutting Blade Material:

Cr 12 High Grade Steel

Core Components:

Motor, Pump, PLC

Warranty:

1 Year

Roller Material:

45#steel Chrome Plated

Power:

5.5KW

Highlight:

three waves gutter downspout machine

0.5mm gutter downspout machine

15m/min downspout forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

20' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

Waterproof Steel Downspout Roll Forming Machine Hydraulic Motor High Speed

Get Best Price

Video

Corrugated Downpipe Roll Forming Machine High Strength Long Working Life

Get Best Price

Video

Rectangular Downspout Elbow Machine 0.4 - 0.8mm Thickness 5.5 KW Energy Saving

Get Best Price

Video

Commercial Building Downspout Roll Forming Machine High Cutting Accuracy

Get Best Price

86-317-2016816

Contact Now

Product Description

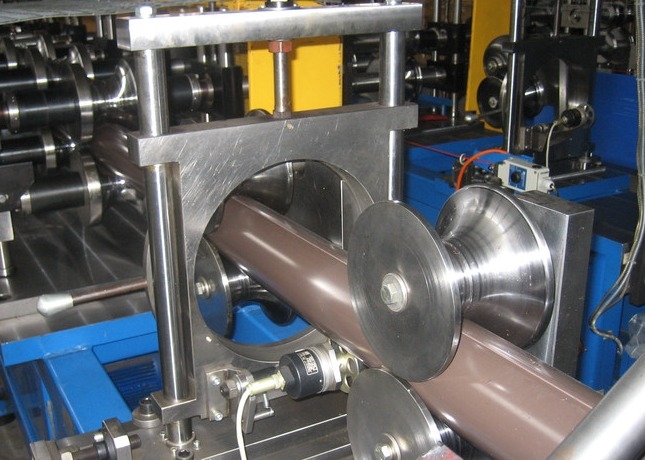

Circular Down Pipe Roll Forming Machine Water Down Pipe Making Line

1.The whole line working speed is about 15m/min.,max working speed could be 30-50 meters per minute.

2.Feeding material width should be confirmed before machine design .the width are changeable,

3.Material thickness normal range are 0.4-0.6mm.if you have any special request on material thickness,we should discuss in advance .

4.Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing.

5.Final sheet embossing is available.we can different embossing rollers on various pattern and drawings.

6.Hydraulic pre-cutting are provided.

Specification

Item	Technical Data
Steel Sheet Thickness	0.5-0.8mm (depend on requirement )
Voltage	380V, 50HZ, 3 phase
Transmission way	Chain
Material of blad	Cr12, quenching treatment
Capacity of Decoiler	3 ton passive decoiler
Forming Speed	10-15m/min
Roller Groups	about 18 stations
Roller Material	45# grade steel, quenching treatment
Roller Diameter	180mm
Principal Axis	45# high grade steel with quenching treatment
Main Motor Power	5.5 kw

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
