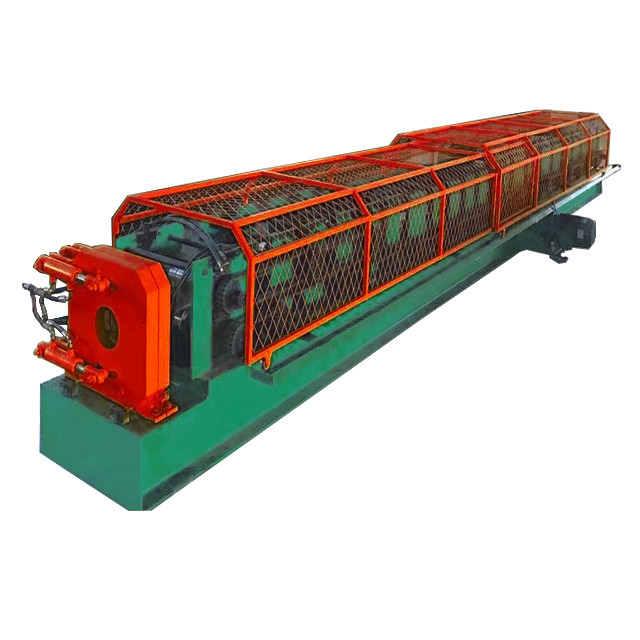

Water 70mm CE Down Pipe Roll Forming Machine / Production Line

Water 70mm CE Down Pipe Roll Forming Machine / Production Line

70mm down pipe roll forming machine

ce down pipe roll forming machine

cold metal shaping downpipe machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU Famous

Certification:

ISO CE

Model Number:

Downspout

Contact Us
Request A Quote
Water 70mm CE Down Pipe Roll Forming Machine / Production Line
Water 70mm CE Down Pipe Roll Forming Machine / Production Line Water 70mm CE Down Pipe Roll Forming Machine / Production Line
Product Details
Product Name:
Water Down Pipe Roll Forming Machine Downpipe Making Production Line
Diameter Of Shafts:
70mm
Voltage:
380V 50Hz 3phases
Speed:
10-15m/min
Core Components:
Motor, Pump, PLC
Warranty:
1 Year
Material Of Rollers:
45#, Surface Hard Chromium Plating
Width:
300mm
Highlight:

70mm down pipe roll forming machine

,

ce down pipe roll forming machine

,

cold metal shaping downpipe machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
20' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price Waterproof Steel Downspout Roll Forming Machine Hydraulic Motor High Speed online Video

Waterproof Steel Downspout Roll Forming Machine Hydraulic Motor High Speed

Get Best Price
Good price Corrugated Downpipe Roll Forming Machine High Strength Long Working Life online Video

Corrugated Downpipe Roll Forming Machine High Strength Long Working Life

Get Best Price
Good price Rectangular Downspout Elbow Machine 0.4 - 0.8mm Thickness 5.5 KW Energy Saving online Video

Rectangular Downspout Elbow Machine 0.4 - 0.8mm Thickness 5.5 KW Energy Saving

Get Best Price
Good price Commercial Building Downspout Roll Forming Machine High Cutting Accuracy online Video

Commercial Building Downspout Roll Forming Machine High Cutting Accuracy

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

Water Down Pipe Roll Forming Machine Downpipe Making Production Line

Downpipe Making Production Line down Pipe Roll Forming Machine,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table


1.The whole line working speed is about 10m/min.,max working speed could be 15 meters per minute.
2.Feeding material width should be confirmed before machine design .the width are changeable,
3.Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .
4.Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing
5.Final sheet embossing is avaliable.we can different embossing rollers on various pattern and drawings.
6.Pre-cutting are provided as you want.

.

Specification
uitable Material Material GI, PPGI, PPGL
Width 300mm
Thickness 0.3-0.8 mm
Material of rollers 45#, surface hard chromium plating
Rows of rollers 16 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 70 mm
Material of cutting blade Cr12 Heat Treatment
Speed 10-15m/min
Side plate thickness 18 mm
Main power 5.5 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 4000mm*1000mm*1500mm
Weight(About) 5.8 tons


Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
