Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rain Water Roofing Gutter Making Rolling Roll Forming Machine PLC Control System | Material Thickness: | 0.3-0.8mm |
|---|---|---|---|
| Voltage: | 380V Or As Customer′s Request | Control System: | PLC |
| Type: | Automatic | Warranty: | 1 Year |
| Speed: | 13-15m/Min | Material Of Shafts: | 45# Steel |
| High Light: | gutter making downspout machine,plc control system downspout machine,cold metal shaping downspout making machine |
||

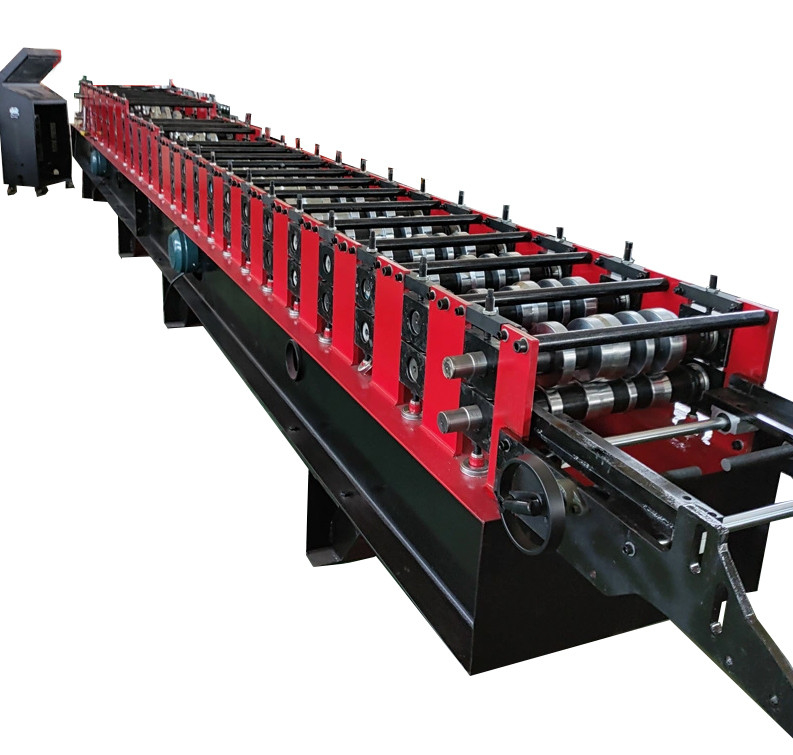

Rain Water Roofing Gutter Making Rolling Roll Forming Machine PLC Control System

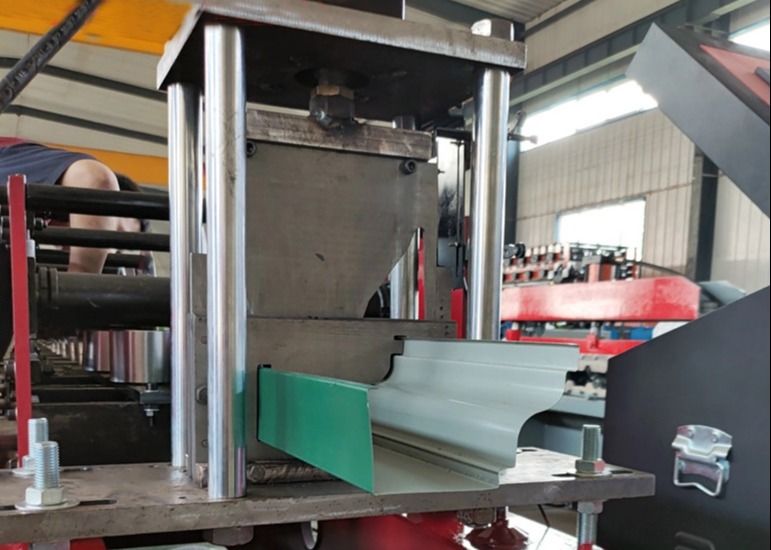

gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
| Material Type | Pre-painted steel coil & galvanized coils |
| Thickness | 0.3-0.8mm |
| Yield strength | 235Mpa.Q345Mpa, Q550Mpa |
| Roller material | Quenched and tempered treatment, hard chrome coated.05-0.07mm |
| Forming speed | About 15-20m/min |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Encoder |
| Control mode | Panasonic or Delta PLC |
| Main motor | 5.5KW |
| Hydraulic station motor | 4KW |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
