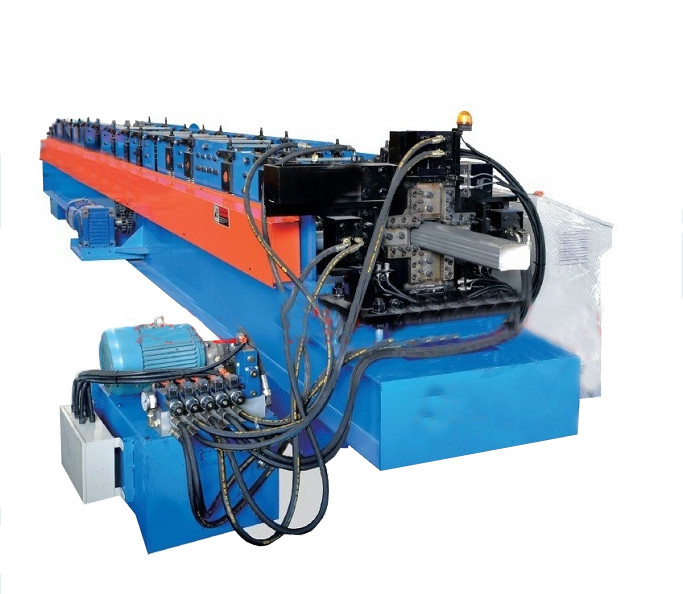

Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile

Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile
Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile

Large Image :  Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU Famous
Certification: ISO CE
Model Number: Downspout
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine Material Specification: Aluminum, Coated Aluminum, Galvanized And Painted
Voltage: 380V 50Hz 3phases Control System: PLC
Material Of Forming Roller: 45# Steel With Forge Treatment, CNC Lathes, Hard Chrome Coated Warranty: 1 Year
Main Motor Power: 5.5KW Hydraulic Station Power: 4 Kw
High Light:

3phases down pipe roll forming machine

,

profile down pipe roll forming machine

,

cold metal downspout pipe forming machine

Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine


Closed type colour coated steel downpipe is cold rolled and automatically edge interlocked by WLDP series downpipe roll forming machine, the finished products are of many features, such as good interlocking, beautiful integrity, lomg time using and so on . This series machine is matched with downpipe bending machine, used for bending and end narrowing . The angle of bending can be adjusted by manual according to engineering requirements.


The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.

steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable

Specification



The general machine parameter
Suitable roll forming material Color steel sheet or galvanized steel sheet
Thickness 0.4-0.6mm
Frame design Wall-plate-frame-design /Strong-stand-frame-design
Roll stages 16 stages
Material of forming roller 45# steel with forge treatment, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75mm
Main motor power 5.5KW
Max. Line speed of roll former 12-15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power 3 KW
Material of cutting blade Cr12, heat treatment
Electric Standard 380V /50Hz/3PH or as the customer's requirements
Machine Dimensions 9500mm×1200mm×1400mm
Major Color of Machine Painted RAL 5015 (Blue)or as per customer's requirements

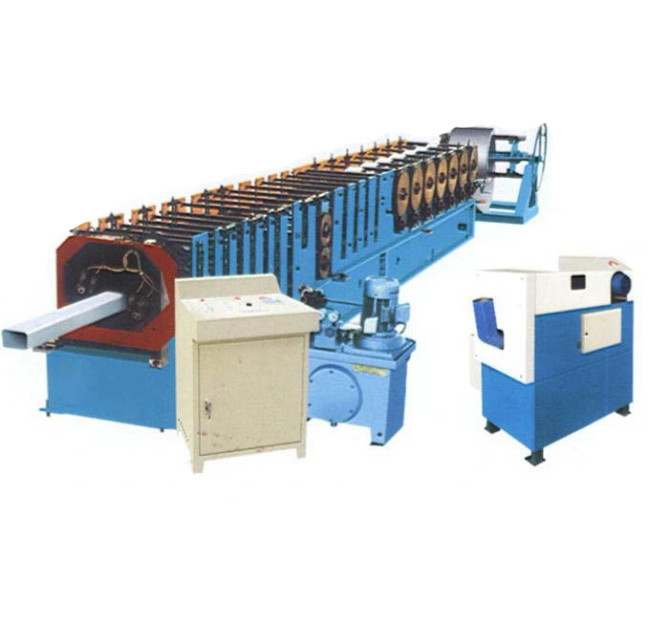

Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile 0Yx120-85 3 Phases Down Pipe Roll Forming Machine For Profile 1

Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
