Name: Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Downspout
Price: 16,500.00 USD
Availability: InStock

Home > products > Down Pipe Roll Forming Machine >

Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi

0.3mm downspout forming machine

ppgi steel downspout forming machine

3 phases downspout roll forming machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU Famous

Certification:

ISO CE

Model Number:

Downspout

Request A Quote

Product Details

Product Name:

Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine

Material Specification:

Aluminum, Coated Aluminum, Galvanized And Painted

Voltage:

380V 50Hz 3phases

Control System:

PLC

Thickness:

0.3mm To 0.8mm

Warranty:

1 Year

Main Motor Power:

7.5 Kw

Hydraulic Station Power:

4 Kw

Feeding Width:

398mm

Cover Width:

Model# Wlfm89-118 Is 118mm

Highlight:

0.3mm downspout forming machine

ppgi steel downspout forming machine

3 phases downspout roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

20' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

Waterproof Steel Downspout Roll Forming Machine Hydraulic Motor High Speed

Get Best Price

Video

Corrugated Downpipe Roll Forming Machine High Strength Long Working Life

Get Best Price

Video

Rectangular Downspout Elbow Machine 0.4 - 0.8mm Thickness 5.5 KW Energy Saving

Get Best Price

Video

Commercial Building Downspout Roll Forming Machine High Cutting Accuracy

Get Best Price

86-317-2016816

Contact Now

Product Description

Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine

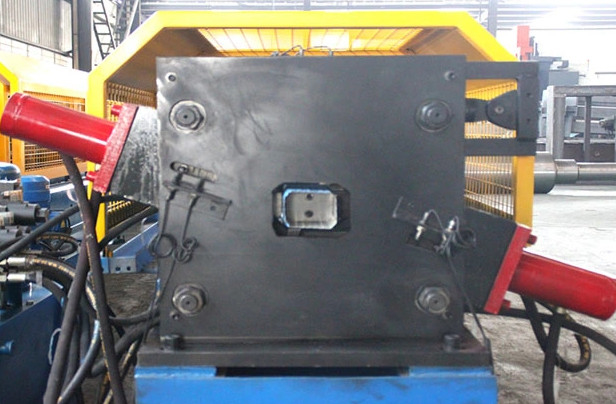

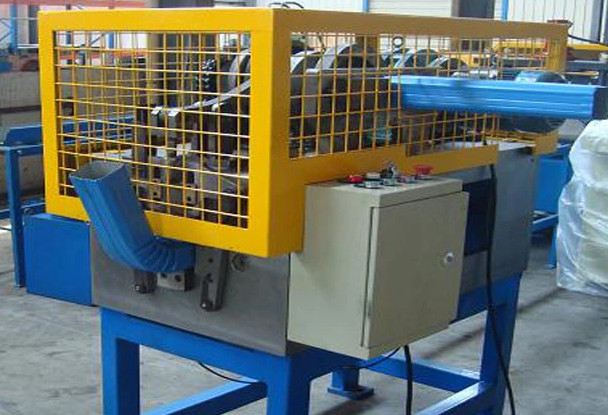

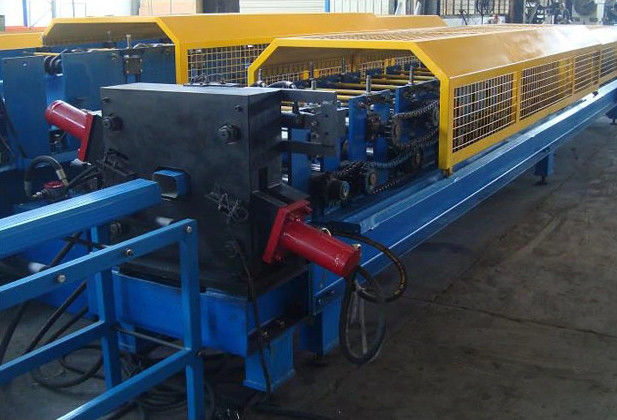

Closed type colour coated steel downpipe is cold rolled and automatically edge interlocked by WLDP series downpipe roll forming machine, the finished products are of many features, such as good interlocking, beautiful integrity, lomg time using and so on . This series machine is matched with downpipe bending machine, used for bending and end narrowing . The angle of bending can be adjusted by manual according to engineering requirements.

Specification

Item	Description
Material Spec	Aluminum, coated aluminum, galvanized and painted galvanized steel sheet
Thickness	0.3 mm to 0.8mm
Main motor power	7.5 kw
Hydraulic station power	4 kw
Feeding width	398mm
Cover width	Model# WLFM89-118 is 118mm
Coil stress	Q235 Mpa (33KSI); maximum stress yield is Q345Mpa (50KSI)
Roll forming Speed	10~12 m/min
Cutting Tolerance	≤±2mm
Manual Uncoiler	Max. Capacity: 3000kgs
Manual Uncoiler	Roll-formed and length-set cutting

Rain Water Steel 0.3mm Downspout Forming Machine For Ppgi 0

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
