Product Details:
Payment & Shipping Terms:
|
| Product Name: | Panel Door Making Machine Rolling Shutter Slats Roller Forming Machine | Speed: | 15m/Min |
|---|---|---|---|
| Voltage: | 380V 50Hz 3Phases Or Customerization | Material Of Cutting: | 45# Forged Steel Plated With Hard Chrom |
| Core Components: | Motor, Bearing, Gear, Pump, PLC | Power: | 3KW/5.5KW |
| Control System: | PLC | Weight: | 1500 Kg |
| High Light: | plc roller shutter door slat machine,1.2mm roller shutter door slat machine,gl shutter door rolling machine |
||

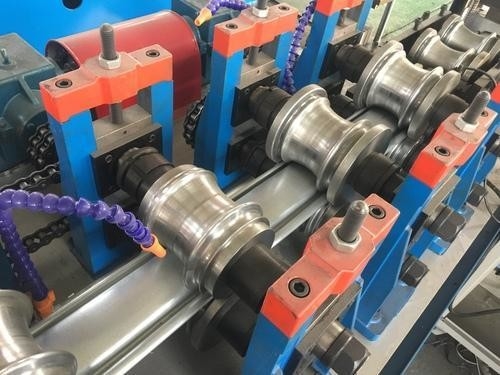

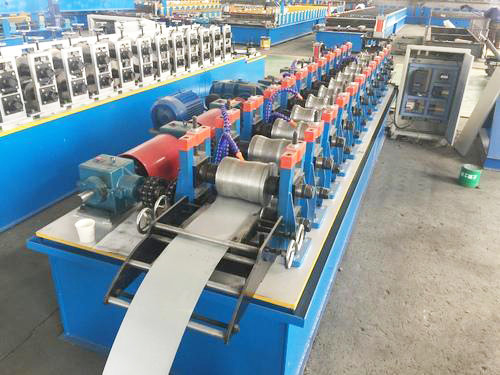

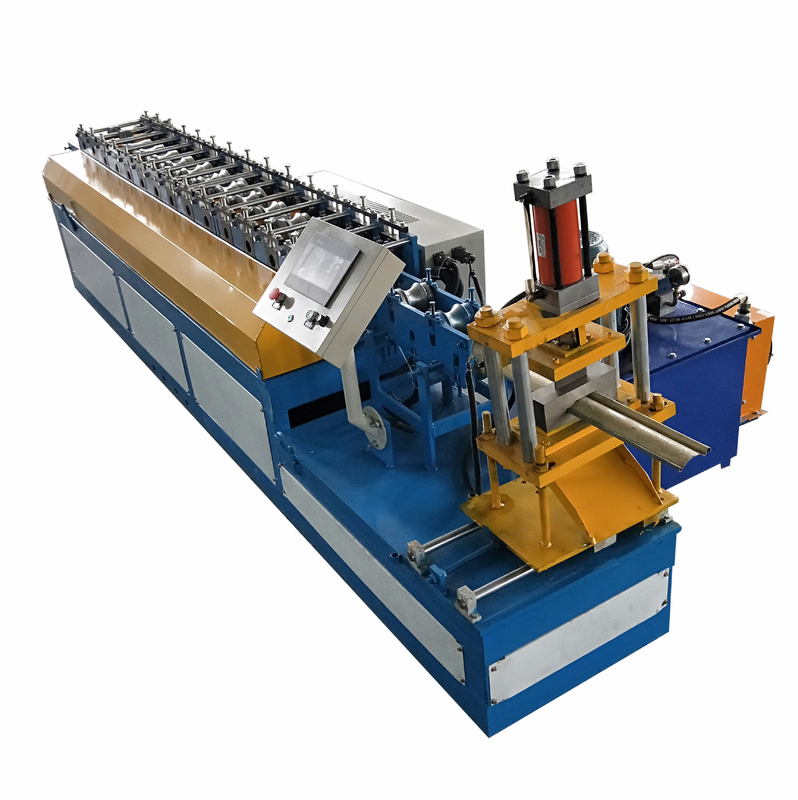

Panel Door Making Machine Rolling Shutter Slats Roller Forming Machine
Specification
|
No
|
Item
|
Specification
|
||
|
|
Raw material
|
GI or PPGI
|
||
|
Material thickness
|
0.7-1.2MM
|
|||
|
|
Roller material
|
High grade 45# steel with Cr12 quenched
|
||
|
Shaft material
|
High grade 45# steel with Cr12 quenched
|
|||
|
Shaft diameter
|
50mm
|
|||
|
Roller stations
|
14
|
|||
|
Middle plate thickness
|
16mm
|
|||
|
Machine size
|
5*0.8*1.2m
|
|||
|
Productivity
|
8-15m/min
|
|||
|
|
Material
|
GCR12
|
||
|
Method
|
Hydraulic cutting
|
|||
|
|
Driving way
|
Chain 1.2 inch
|
||
|
Motor
|
4KW
|
|||
|
Hydraulic oil pump
|
3KW
|
|||
|
Voltage
|
380V,50HZ ,3 phase or customized as your need
|
|||
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
