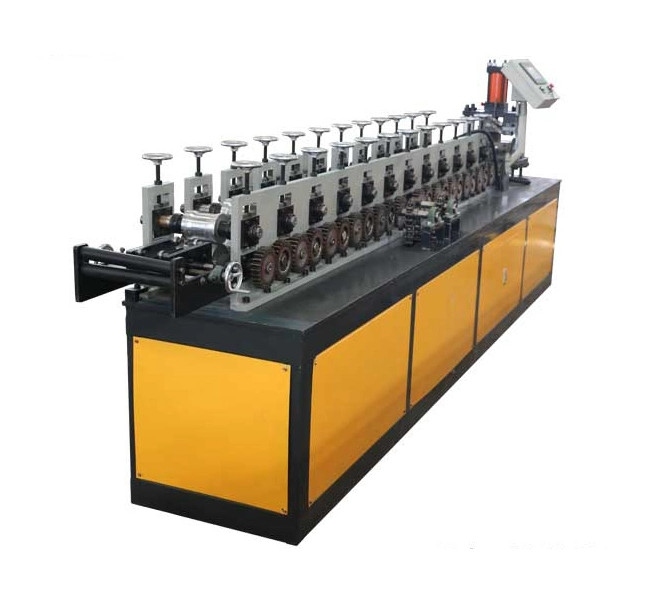

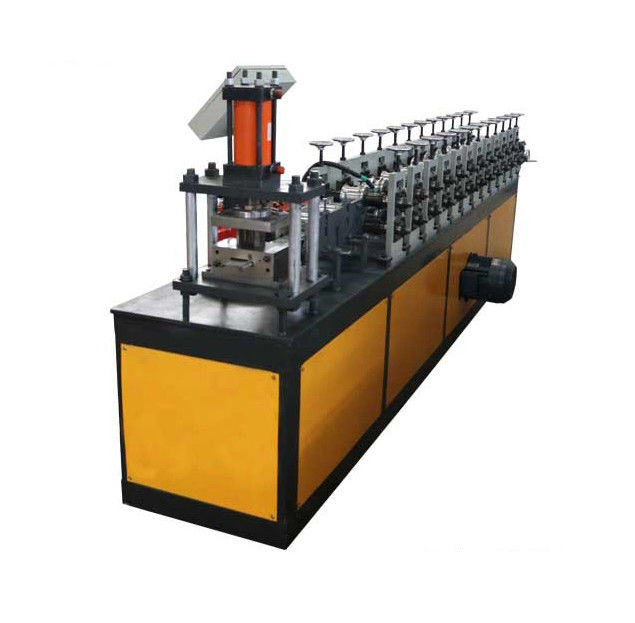

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller

Certification
China Cangzhou Famous International Trading Co., Ltd certification
China Cangzhou Famous International Trading Co., Ltd certification
Customer Reviews
The machine is great and easy to operate.

—— Behzad

The machine is fast. this is a great product,Very good and realiable company!

—— Abdo Omar

machine 10 years, no problem, still working very well.

—— Mahesh

Cangzhou willing industrial co. Ltd. Is making sense in optimizing development of businesses in Africa.

—— Richard Billa Tibilla

The machine is working and it's great

—— Samuel

I'm Online Chat Now

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller
0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller 0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller

Large Image :  0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Shutter Door
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Automatic Steel Sheet Roller Shutter Door Roll Forming Machine Manufacturers Suitable Thickness: 0.3-0.6mm
Voltage: 380V 50Hz 3phases Cutting Type: Hydrualic
Profile Drawing: Customized Core Components: Motor, Bearing, Gear, Pump, PLC
Cutting Mode: Auto Tracking Cutting Control System: PLC
High Light:

0.6mm shutter door roll forming machine

,

gear shutter door roll forming machine

,

gl shutter door forming machine

Automatic Steel Sheet Roller Shutter Door Roll Forming Machine Manufacturers


Rolling shutter door machine adopts cold-formed steel door and window material made of color-coated plate and stainless steel plate, which has the characteristics of good sealing performance, beautiful appearance and long service life; composite rolling door uses cold-formed steel, which is a new type of material for fireproof doors. A large number of cold-formed steels are also used in various keels and decorative strips for decoration in the construction industry. There are many types and specifications of cross-sections required. The materials used include galvanized sheets, color-coated sheets, stainless steel and aluminum alloys.



Specification



General InformationCoil MaterialGI/GL
Coil Thickness0.6~1.2MM
Coil Width---
Speed15-20M/MIN
VoltageAs Customer's Request
Roll Forming UnitRoller Station12
Driving Motor5.5KW
Shaft Diameter50mm Solid
Shaft Material45# Hard Steel
Roller MaterialCr12
Under FrameSquare Tube Welded
Sidewall ThicknessMemorial Archway Type
TransmissionGear
Feeding Device1 Set
Cutting UnitCutting TypeHydraulic Non-stop TO Cut
Hydraulic Pump Power3KW
Cutting Die MaterialCr12Mov
Hydraulic Oil46# Abrade Oil
Control UnitControl MethodPLC
Length ControlEncoder
OperationTouch Screen
LanguageChinese & English

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller 0
Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
