3 Phases Shutter Roll Forming Machine For Flat And Curved Slats

3 Phases Shutter Roll Forming Machine For Flat And Curved Slats
3 Phases Shutter Roll Forming Machine For Flat And Curved Slats 3 Phases Shutter Roll Forming Machine For Flat And Curved Slats 3 Phases Shutter Roll Forming Machine For Flat And Curved Slats

Large Image :  3 Phases Shutter Roll Forming Machine For Flat And Curved Slats

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Shutter Door
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Roller Shutter Door Roll Forming Machine For Flat And Curved Slats Cutting Power: 4kw
Voltage: 380V 50Hz 3 Phases Cutting Type: Hydrualic
Machine Body Frame: Cast Iron Vertical Structure Core Components: Motor, Bearing, Gear, Pump, PLC
Cutting Mode: Auto Tracking Cutting Control System: PLC
High Light:

3 phases shutter roll forming machine

,

curved slats shutter roll forming machine

,

gl roller shutter door forming machine

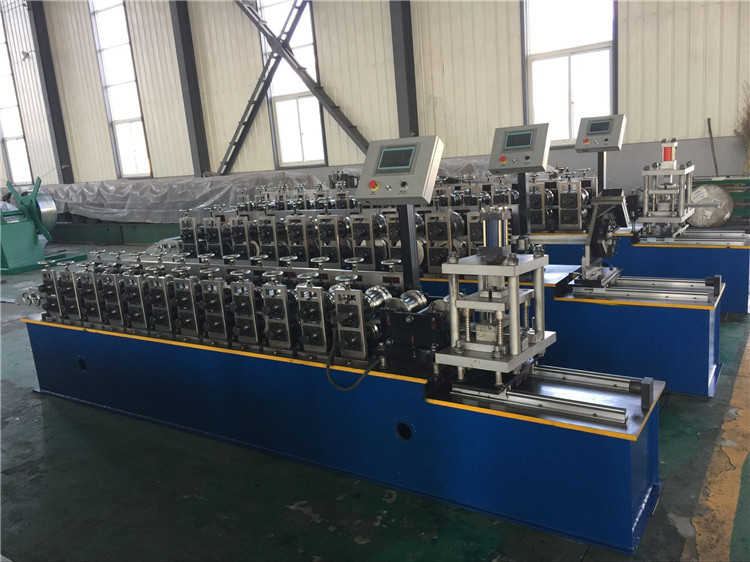

Roller Shutter Door Roll Forming Machine For Flat And Curved Slats

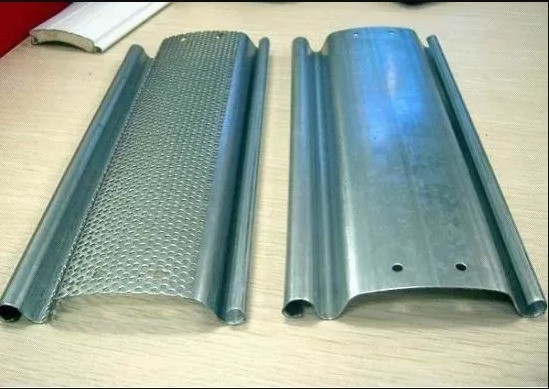

For the roller shutter door making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.7-1.4mm, the shape will be design by your demand.
The shutter door is separated from the wall by the action of the wall, which consists of the curtain plate, the seat plate, the guide rail, the bearing, the reel, the box, the control box, the rollier shutter door machine, the stopper, the lintel, the manual quick release switch, And insurance devices and other parts of the composition, generally installed in the inconvenience to use the wall separated parts. Rolling doors for commercial facade, garage, shopping malls, hospitals, factories and mines and other public places or residential. Especially the larger openings, inconvenience to install the ground door of the place to play a convenient, fast opening effect.



Specification



No. Item Description
1 Raw material galvanized steel
2 Material thickness 0.7-1.2mm (depends on customer's request)
3 Machine work sped 20m/min(8pcs/min,2.5m/pcs)
4 Rolling station 12 stations
5 Roller material GB-Cr12
6 Transmission by gear
7 Drive motor 4kw
8 Bearing brand Harbin

3 Phases Shutter Roll Forming Machine For Flat And Curved Slats 0
Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
