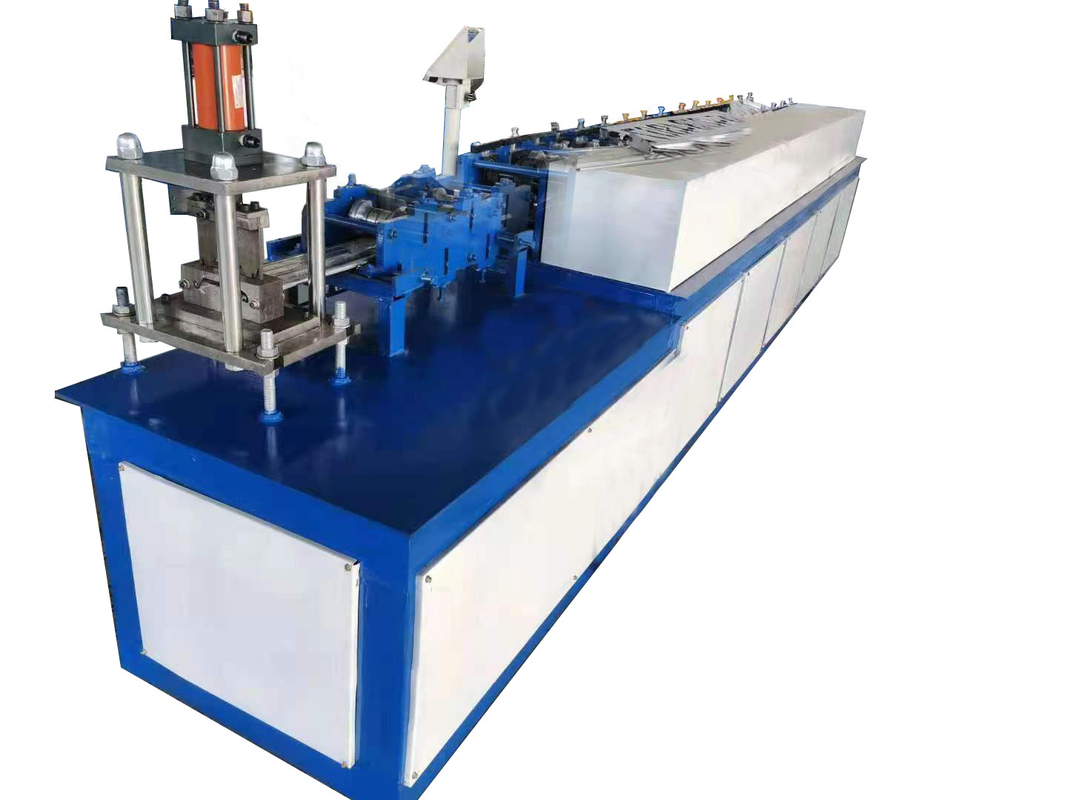

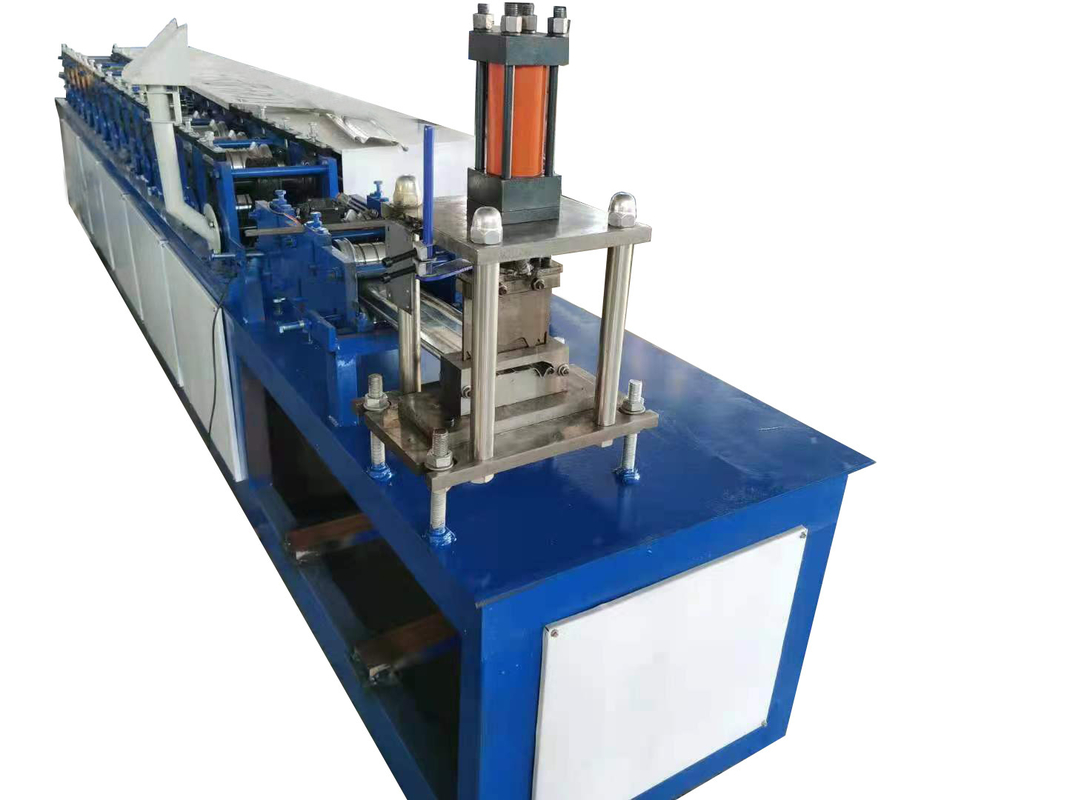

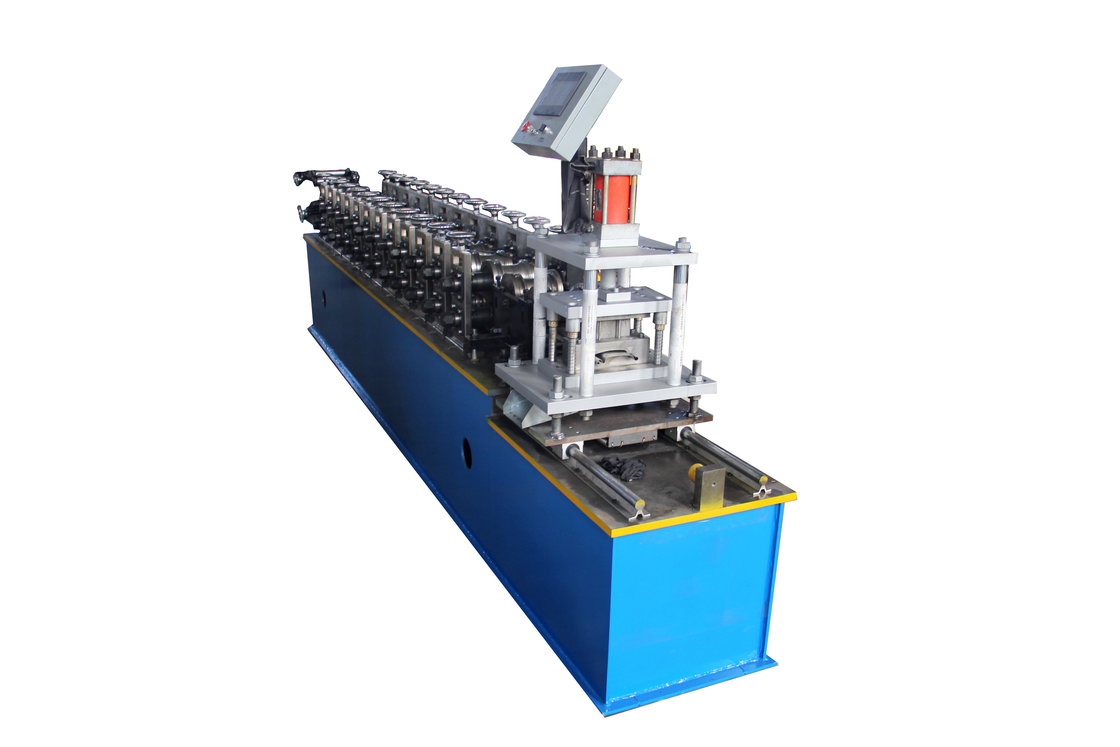

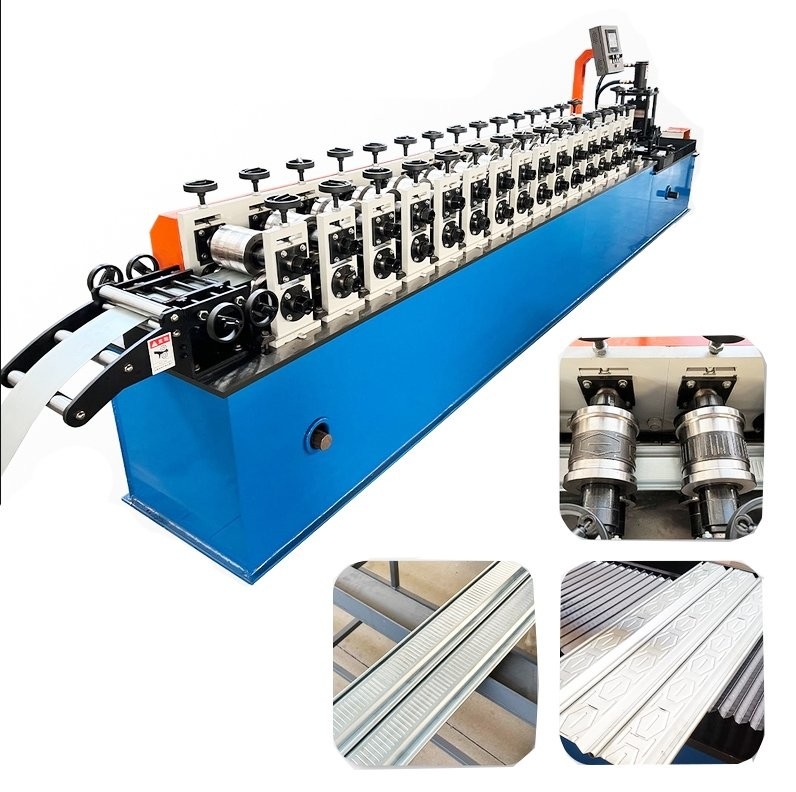

Metal Decoration Roller Shutter Door Machine High Speed 8-15m/Min

Metal Decoration Roller Shutter Door Machine High Speed 8-15m/Min
Metal Decoration Roller Shutter Door Machine High Speed 8-15m/Min

Large Image :  Metal Decoration Roller Shutter Door Machine High Speed 8-15m/Min

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Shutter Door
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 20' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Metal Decoration Shutter Door Roll Forming Machine High Speed 8-15 M / Min Raw Material: Galvalume, Galvanized, PPGI
Weight: 2T Material Thickness: 0.3 Mm - 0.8 Mm
Voltage: 380V 50Hz 3phases Production Capacity: 15 M/min
Dimension(L*W*H): 3800*600*1000 Core Components: Motor, Bearing, Gear, Pump, PLC
High Light:

metal decoration roller shutter door machine

,

roller shutter door machine 15m/min

,

ppgl door shutter roll forming machine

Metal Decoration Shutter Door Roll Forming Machine High Speed 8-15 M / Min


1. This shutter door roll forming machine is widely used for garage door /commercial door / industrial door and so on .
2. A whole shutter door main inculde three parts , shutter door salt and sliding U guide rail with bottom strip . These three part work together to give us a safity environment .
3. it can embossing different patterns according to customer's requirements. Meanwhile, it has manual and automatic two operate model, in this way, client can easy operat this machine.
As to the shutter door can protect the shop or garage well , it is very popular in the world and has a large market .



Specification



No. Item Description
1 Coil Width:100mm
2 Forming Speed 8-15m/min
3 Roller stations 12 stations + 5 straightening devices
4 Material of Roller Bearing steel, plate hard
5 Material of Main Shaft 45# steel finishing machining and then slack
6 Material of Shaft 43mm 45# steel forged
7 Power installation 3kw motor 1 set, 250 model speed reducer 1 set
8 Driving method Gear&chain transmission
9 Feeding equipment Vertical type decoiler 1 set
10 Electric Control System PLC automatic control system
11 Cutting system Pneumatic automatic cutting machine 1 set
12 Material of Cutter Gcr12
13 Dimension 3800*600*1000
14 Material Thickness 0.8-1.2mm
15 Power Supply 380V60HZ 3 phases
16 Cutting Accuracy ±2mm

Metal Decoration Roller Shutter Door Machine High Speed 8-15m/Min 0
Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
