Product Name: | Hydraulic Cutting Downspout Roll Forming Machine PLC Control System | Raw Material: | GL, GI, PPGI |
---|---|---|---|
Voltage: | 380V 50Hz 3phases | Control System: | PLC |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Installation,commissioning And Training | Warranty: | 2 Year |
Materials Thickness: | 0.4-0.6mm | Roller Station: | 22 |
Motor Power: | 7.5KW | Hydraulic Pump: | 4 KW |
High Light: | gl down pipe roll forming machine,hydraulic down pipe roll forming machine,3 phases downspout machine |

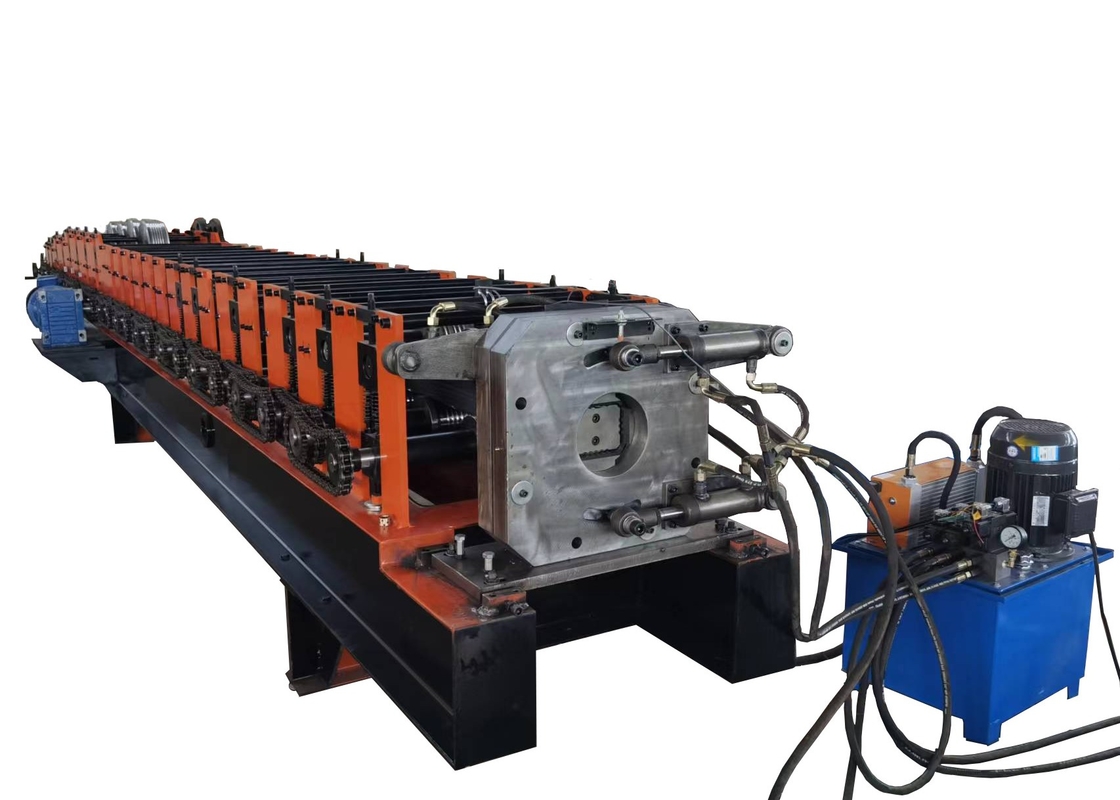

Hydraulic cutting downspout roll forming machine PLC control system
No. | Item | Description |
1 | Coil | Galvalume, Galvanized, PPGI |
2 | Raw Material Thickness | 0.4 mm - 0.6 mm |
3 | Working Speed | 8-10 m/min |
4 | Roller Station | 22 Stations |
5 |
Dimension (L*W*H) |
9200 mm*800 mm*1200 mm |
6 | Machine Weight | 9000 KG |
7 |
Electrical Control System |
PLC (can be customized) |
8 |
Drive Motor Power |
7.5 KW |
9 |
Hydraulic Station Power |
4 KW |
10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
11 |
Cutting Accuracy |
± 2 mm |
12 |
Driving Mode |
Single Chain 1 inch |
13 |
Material of Shaft |
70 mm 45#steel forged |
14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Advantage
The equipment is controlled to PLC control, and multiple safety protection is made during normal production. The bed is welded with steel plates. And make a fire treatment to eliminate internal stress and avoid deformation of the fuselage. The material of the roll axis is 40CR, and the quality is adjusted, and the hardness is HB280. The material of the molding mold is GCR15, quenching treatment, hardness: HRC56-62 ° C.
Application
Collect the rainwater of the roof and concentrate to the rainwater pipe paved below the ground. The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.
steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable.
.
