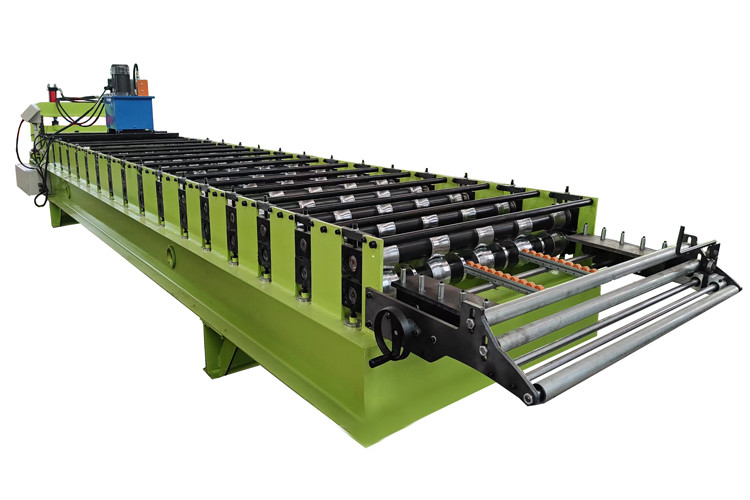

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw
Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Large Image :  Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Product Details:
Place of Origin: China
Brand Name: FMS
Certification: CE, ISO, TUV
Model Number: FMS-24.3-262.5-1050
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Main machine is nude,the computer control box is packed by plastic.
Delivery Time: 30 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 30 sets per month
Detailed Product Description
Product Description: Trapezoidal Roll Forming Machine Roll Forming Speed: 15-20m/min
Roller Material: No.45 Steel, Coated With Chromed Treatment Hydraulic Station Motor Power: 4kw
Control System: Delta Plc And Converter Main Motor Power: 5.5kw
Voltage: 380V 50HZ 3PH Material: Colored Steel Coils, Galvanized Steel Coil, Aluminum Coil
High Light:

aluminum coil trapezoidal roll forming machine

,

converter trapezoidal roll forming machine

,

converter trapezoidal sheet roll forming machine

Trapezoidal Metal Roof Tile Roll Forming Machine



The trapezoidal roll forming machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
The
trapezoidal roll forming machine has the following characteristics:

1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.

2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
speed of this line is adjustable from 0 to 15 meters per minute, and the normal operation speed is 8 to 10 meters per minute.
3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
high-quality components with stable performance and high reliability materials applicable to high technical parameters.

Profile Drawing

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw 0



Equipment Detailed Parameters


Weight About 5000kgs
Size About 8m x 1.2m x 1.3m (length x width x height)
Suitable Raw Material
Material pre-painted steel coil, galvanized steel coil, galvalume steel coil
Thickness 0.3-0.8mm
Coil width 1220mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 18
Diameter of forming rollers shafts 70mm
Roll Forming Speed 0-15m/min
Forming rollers material 45# steel with CNC machining and surface is being hard chrome
Cutter material CR12 mould steel, with quenched treatment
Controlling system DELTA PLC and Converter
Electric Power requirement Main motor power: 5.5kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement

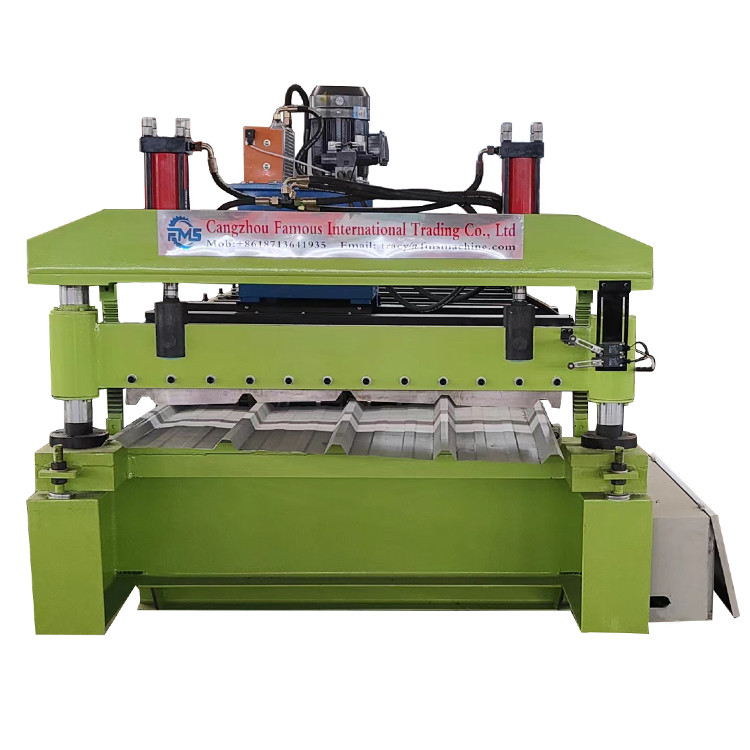

More machine pictures



Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw 1

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw 2



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



The Delivery Time: 30 working days after the down payment is received.
