Automatic Cold 10rows Wall Panel Roll Forming Machine Roof Sheet Making

10rows wall panel roll forming machine

wall panel roll forming machine automatic

roof sheet making roll forming equipment

Place of Origin:

CHINA MAINLAND

Brand Name:

FMS

Certification:

ISO CE

Request A Quote

Product Details

Product Name:

Automatic Wall Panel Cold Roll Forming Machine Roof Sheet Making Machine

Suitable To Process:

Color Steel Plate

Speed:

15-20m/min

Voltage:

380V 50Hz 3phases

Power:

4+4kw

Rolling Material:

45# Steel(plated Chrome On Surface)

Rollers:

12rows

Control System:

PLC Control

Highlight:

10rows wall panel roll forming machine

wall panel roll forming machine automatic

roof sheet making roll forming equipment

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

40' FLC

Delivery Time

30 Working Days

Payment Terms

L/C, T/T, D/A, D/P

Supply Ability

20 Sets Per Month

2025 New Design Metal Picket Fence Roll Forming Machine Fence Lines America Style

Get Best Price

Video

Corrugated Container Board 15m/Min Wall Panel Roll Forming Machine Fully Automatic

Get Best Price

Video

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Get Best Price

Video

Iron 0.8mm Corrugated Roofing Sheet Roll Forming Machine Hydraulic Cut

Get Best Price

86-317-2016816

Contact Now

Product Description

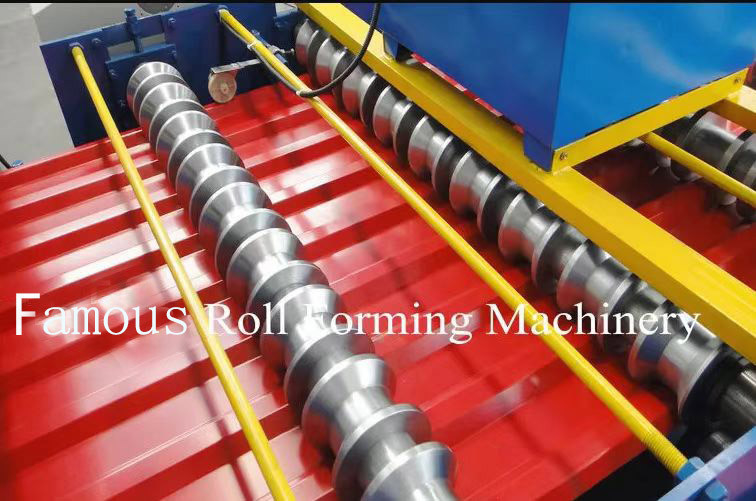

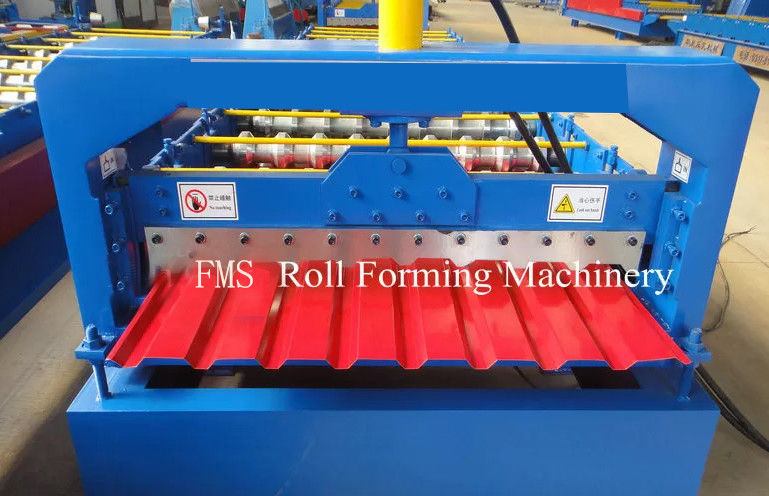

Automatic Wall Panel Cold Roll Forming Machine Roof Sheet Making Machine

As the original manufacturer of the tile press, we can produce most of the products according to your requirements

1.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing. 2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.

Specification

No.	Main parameter of Wall Panel Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	1250 mm
3	Rollers	10rows
4	Dimensions	5.81.61.5m
5	Power	4+4kw
6	Rolling material	45# steel(plated chrome on surface)
6	Thickness of the plate	0.3-0.6mm
7	Productivity	8-10m/min
8	Diameter of the roller	Φ70mm
9	Voltage	380V 50Hz 3phases
10	Hydraulic	40#
13	Control system	PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
