Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min

Customer Reviews
The machine is great and easy to operate.

—— Behzad

The machine is fast. this is a great product,Very good and realiable company!

—— Abdo Omar

machine 10 years, no problem, still working very well.

—— Mahesh

Cangzhou willing industrial co. Ltd. Is making sense in optimizing development of businesses in Africa.

—— Richard Billa Tibilla

I'm Online Chat Now

Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min

Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min
Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min

Large Image :  Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: FMS
Certification: ISO CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: Metal Roof Wall Panel Machine Manufacturers Core Components: Motor, Engine, PLC
Control SystePLCm: 6000 Kg Production Capacity: 30m/min
Voltage: 380V Warranty Of Core Components: 1 Year
Tile Type: Steel After-sales: Video Technical Support
High Light:

wall panel roll forming machine 30m/min

,

touchscreen wall panel roll forming machine

,

touchscreen cold roll former

Metal Roof Wall Panel Machine Manufacturers

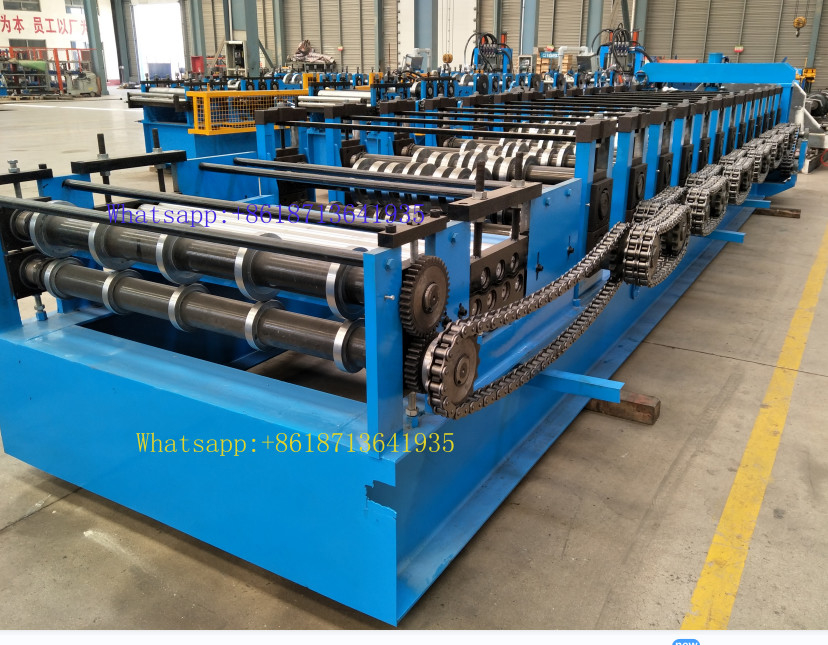

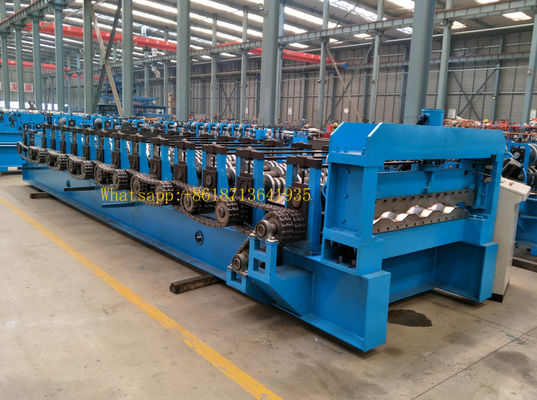

Metal roof Wall Panel roll forming machine is to use color coating steel plate, the roll forming into various wave type roof sheets, as been widely applied for industrial and civil buildings, warehouses, large-span steel structure roofing, wall and external decoration of the house, etc., Due to the qualitative light, high strength, convenient construction, earthquake, fire prevention, waterproof, long life and free maintenance etc. just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.



Specification



Model 840/900
Rod 18
Production and processing speed 30 m/min
Processing thickness color steel 3mm
Axle diameter of roll Ø100
Frame 300H steel welding
Medium plate 16mm
Transmission mode 1 inch sprocket chain drive
Shaft material 45# quenching and finishing machining
Wheel material 45# finishing car processing, high frequency quenching, hard chrome plating
Main engine power 4KW pure copper motor
Oil pump motor 7.5KW
Control system touch screen setting
Shear hydraulic mold shear
Cutter plate Cr12 blade



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
