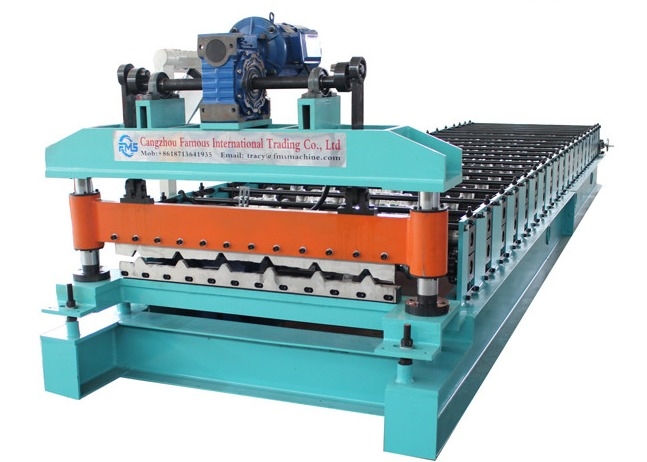

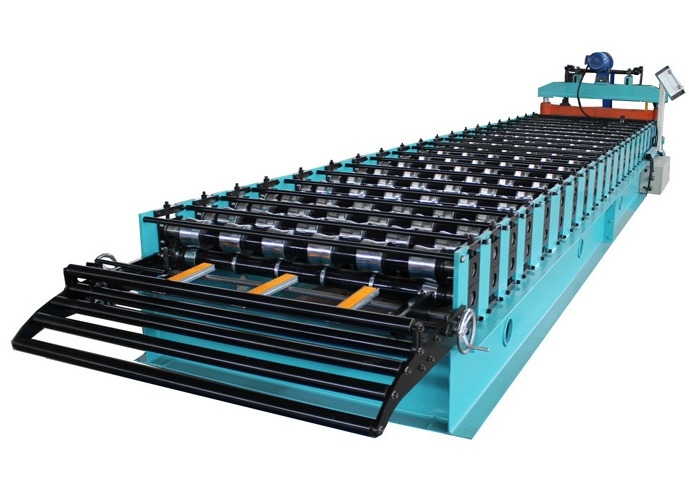

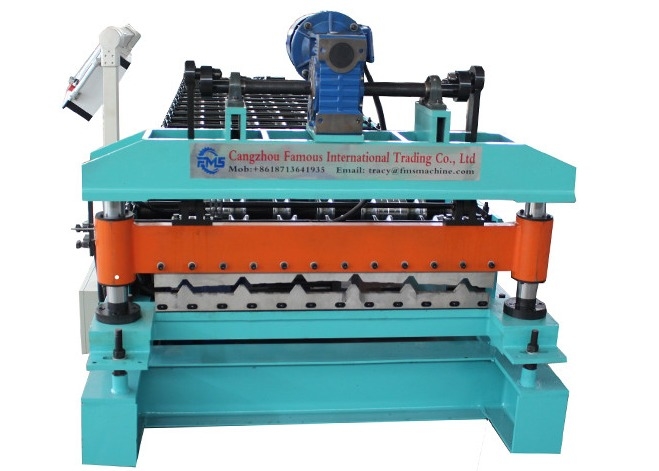

Metal Gardens Ibr Roll Forming Machine Tile Roofing Sheet Making

Metal Gardens Ibr Roll Forming Machine Tile Roofing Sheet Making
Metal Gardens Ibr Roll Forming Machine Tile Roofing Sheet Making Metal Gardens Ibr Roll Forming Machine Tile Roofing Sheet Making Metal Gardens Ibr Roll Forming Machine Tile Roofing Sheet Making

Large Image :  Metal Gardens Ibr Roll Forming Machine Tile Roofing Sheet Making

Product Details:
Place of Origin: CHINA MAINLAND
Brand Name: CANGZHOU FMS
Certification: ISO CE
Model Number: Met Tile / Glazed Tile
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 40' FLC
Delivery Time: 35 Working Days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Detailed Product Description
Product Name: IBR Metal Roll Forming Machine Tile Roofing Sheet Making Machines Raw Material: Galvalume, Galvanized, PPGI, Aluminum,Copper
Dimension(L*W*H): 8600x1500x1300mm Production Capacity: 8-15m/min
Shaft Material: 45# Steel Outer Diameter: 80mm Feeding Width: 1220mm
Weight: 5000 Kg Cutting Accuracy: ±2 Mm
High Light:

metal ibr roll forming machine

,

gardens ibr roll forming machine

,

tile roofing sheet ibr making machine

IBR Metal Roll Forming Machine Tile Roofing Sheet Making Machines



The Roof tiles made by oursingle layer roofing roll forming machine for roof panel have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.



Specification



Name
Details
Remark
Feed frame roller
Stainless Steel

Machine base structure
350H steel welded

Machine architecture
Middle plate
20mm thick
Drive mode
Chain drive

Roller station numbers
18 rows of rollers

Rollers material
45# steel
Surface hard chromium plating
Shaft diameters
Φ 90mm +80mmSolid shafts

Shaft material
45# steel

Motor power
5.5kw

Forming speed
0-12m per minute

Power
380v 50hz 3Phase
Or as customer request




Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
