Mild Steel 2350mpa Double Layer Roll Forming Machine For Industrial

industrial double layer roll forming machine

2350mpa double layer roll forming machine

mild steel rollform equipment

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Description:

Mild Steel Double Layer Roll Forming Machine For Industrial

Roll Forming Speed:

15-20m/min

Material:

No.45 Steel, Coated With Chromed Treatment

Hydraulic Unit Motor Power:

3kw

Control System:

PLC And Converter

Main Motor Power:

7.5kw

Voltage:

380V 50HZ 3PH

Material:

Colored Steel Coils

Highlight:

industrial double layer roll forming machine

2350mpa double layer roll forming machine

mild steel rollform equipment

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

35 sets per month

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price

Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

Double Layer Roll Forming Machine PLC Control

Get Best Price

86-317-2016816

Contact Now

Product Description

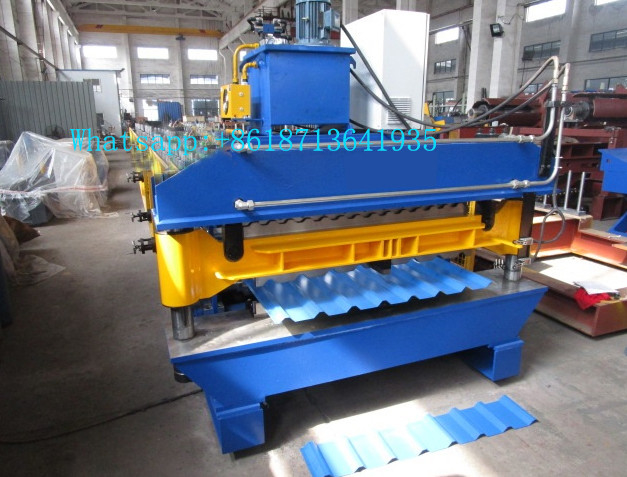

Mild Steel Double Layer Roll Forming Machine For Industrial

Double layer forming machines for roofing and cladding sheets , with the greatest advantage is one double layer machine can make two design sheets.

usually, one layer forming machine or single layer forming machine only make one roofing design.

Therefore, if customer has limited install space and required to make two roofing designs, double deck machine is best choose.

double layer machine have additional set rollers and cut blade for another roofing design. that is , two sets rollers share with one machine base, motor , hydraulic station, plc controller and cut frame.

Equipment Detailed Parameters

Suitable Raw Material
Weight	About 12000kgs
Size	About 11m x 1.7m x 1.5m (length x width x height)
Material	Colored Steel Coils
Thickness	0.3-0.7mm
Coil width	1220mm
Yield Strength	2350Mpa
Main Technical Parameters
Quantity of forming rollers stations	20-22
Diameter of forming rollers shafts	75mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 7.5kw
Electric Power requirement	Hydraulic unit motor power: 3kw
Electric voltage	According to customer’s requirement

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

Mild Steel 2350mpa Double Layer Roll Forming Machine For Industrial 0
