Product Details:
Payment & Shipping Terms:
|

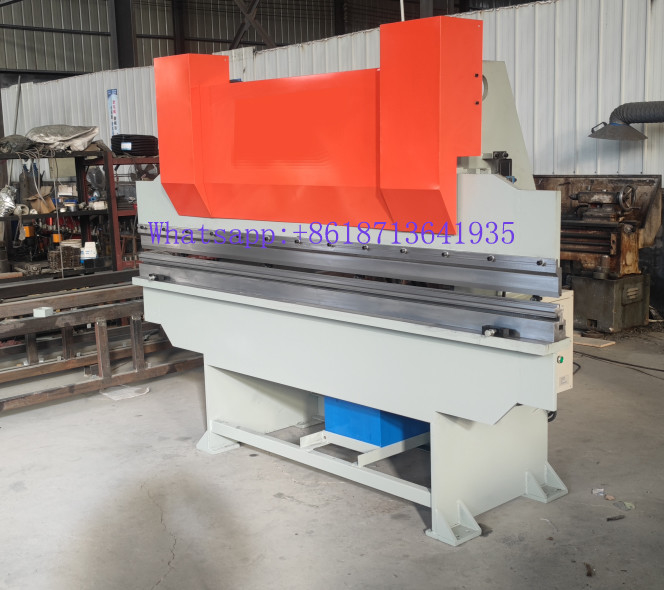

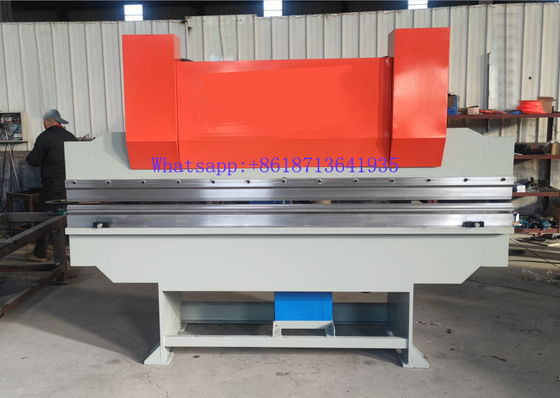

| Product Name: | Cnc Hydraulic Sheet Metal Bending Machine Press Brake | Width Of Working Table (mm): | 1600mm |
|---|---|---|---|
| Automation: | Automatic | Weight (KG): | 6700 |
| Core Components: | Motor, PLC | Max.Shut Height: | 370mm |
| Voltage: | 380V,50HZ,3 Phrases | ||
| High Light: | 1600mm hydraulic press brake bending machine,hydraulic press brake bending machine cnc,1600mm cnc press brake bending machine |
||
1.10.2″LCD color display,windows XP operating system is multi-lighual operator interface,including Chinese.
2.2D Graphics Programming,work piece and mold graphics rendering,Comprehensive anti-collision detection.
3.Bending force,workbench distortion compensation,speed change point,clamping point,expansion length,great arc bending,back gauge
position calculation automatically.
Special numeric-control syetem is fitted with mainframe of the bending machine Multi-work-step programming function is able to achieve an automatic operation and continous positioning of multi-step procedures, as well as an automatic precision adjustmemt for position of rear stopper and gliding block. Hydraulic press brake is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block, as well as procedures and parameters. Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of cnc hydraulic press brake to be higher.
Equipment Detailed Parameters:
| No. | Main parameter | |
| 1 | Dimension | 3200*1600*2600 |
| 2 | Type | 125T/3200 |
| 3 | Raw material width | 6000mm |
| 4 | Motor Power (kw) | 7.5 kw |
| 5 | Poles Distance | 2500mm |
| 6 | Model number | CT8 |
| 7 | Warranty of core components | 1 Year |
| 8 | Voltage | 380V 50Hz 3phases |
| 9 | Core Components | Motor, PLC |
| 10 | roller material | 45#steel |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
