Product Details:
Payment & Shipping Terms:
|
| Product Name: | No Nails Self Locking Roof Panel Roll Forming Machine PLC Control | Suitable To Process: | Color Steel Plate |
|---|---|---|---|
| Control System: | PLC Control | Cutting System: | Hydraulic Cut |
| Dimensions: | 7.8*1.35*1.51m | Condition: | New |
| Thickness Of The Plate: | 0.3-0.7mm | Material Of The Cutting Plate: | Cr12 |
| Hydraulic: | 40# | ||
| High Light: | selflocking roof panel roll forming machine,roof panel roll forming machine plc,no nails roof panel roll former |
||
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.

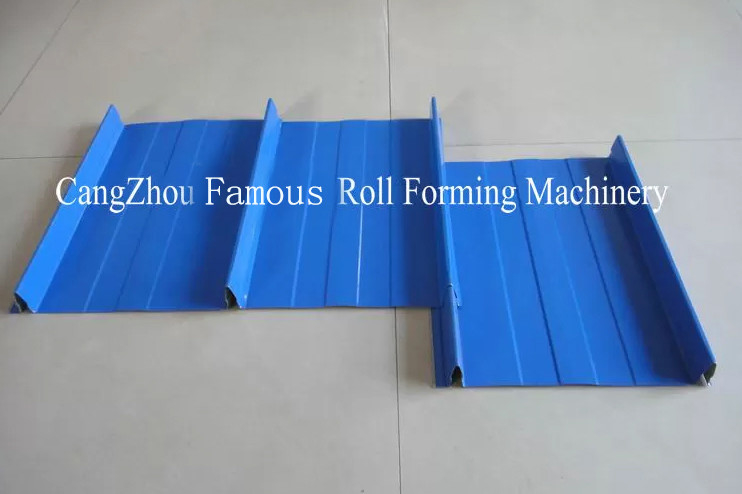

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
Equipment Detailed Parameters:
| No. | Main parameter of Roof Sheet Roll Forming Machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Rollers | 16 rows |
| 3 | Cutting System | Hydraulic Cut |
| 4 | Rolling material | 45# steel(plated chrome on surface) |
| 5 | Per Month | 30 Sets |
| 6 | Productivity | 8-10m/min |
| 7 | Diameter of the roller | Φ66mm |
| 8 | Voltage | 380V 50Hz 3phases |
| 9 | Material of the cutting plate | Cr12 |
| 10 | Hydraulic | 40# |
| 11 | Processing precision | Within 1.00mm |
| 12 | Control system | PLC control |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
