686 Long Span Ibr Roof Sheet Forming Machine Q235 0.3mm

q235 ibr roof sheet forming machine

0.3mm ibr roof sheet forming machine

long span ibr roof sheeting machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

686

Request A Quote

Product Details

Product Name:

IBR 686 Long Span Q235 Roofing Sheet Roll Forming Machine Metal 0.3mm

Suitable To Process:

Color Steel Plate

Width Of The Plate:

925mm

Rollers:

16 Rows

Dimensions:

9.1*1.45*1.51m

Rolling Material:

45# Steel(plated Chrome On Surface)

Thickness Of The Plate::

0.3-0.6mm

Voltage:

380V 50Hz 3phases

Highlight:

q235 ibr roof sheet forming machine

0.3mm ibr roof sheet forming machine

long span ibr roof sheeting machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price

Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price

Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price

Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price

86-317-2016816

Contact Now

Product Description

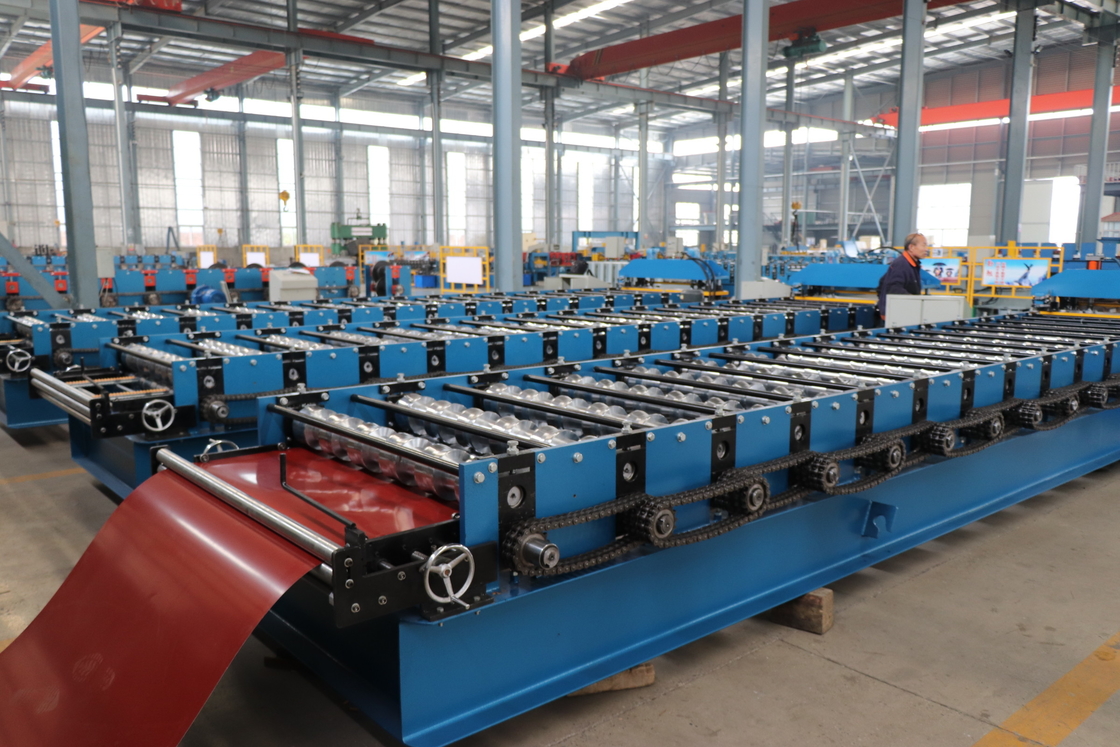

IBR 686 Long Span Q235 Roofing Sheet Roll Forming Machine Metal 0.3mm

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.

1. elegant appearance

2. high quality steel structure

3. One year free guarantee

4. lifelong maintain

5. Panasonic PLC

Equipment Detailed Parameters:

No.	Main parameter of Roof Sheet Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	925mm
3	Rollers	16 rows
4	Dimensions	9.11.451.51m
5	Power	4+4kw
6	Rolling material	45# steel(plated chrome on surface)
7	Thickness of the plate	0.3-0.6mm
9	Diameter of the roller	Φ66mm
10	Voltage	380V 50Hz 3phases
11	Material of the cutting plate	Cr12
12	Hydraulic	40#
13	Processing precision	Within 1.00mm
14	Control system	PLC control

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
