Product Details:
Payment & Shipping Terms:
|
| Product Name: | South America Metal Roof Sheet Roof Sheet Roll Forming Production Line | Raw Material: | Galvalume, Galvanized, PPGI, Aluminum,Copper |
|---|---|---|---|
| Voltage: | 380V 60 Hz Or According To Client Requirement | Production Capacity: | 8-20 M/min |
| Rolling Thinckness: | 0.3-0.8mm | Weight: | 4500 Kg |
| Roller Material: | 45# Steel With 0.05mm Chrome | Control System: | PLC(detla) System |
| High Light: | 380v 60 hz sheet roll forming machine,detla sheet roll forming machine,ppgi roofing sheet roll forming machine |
||

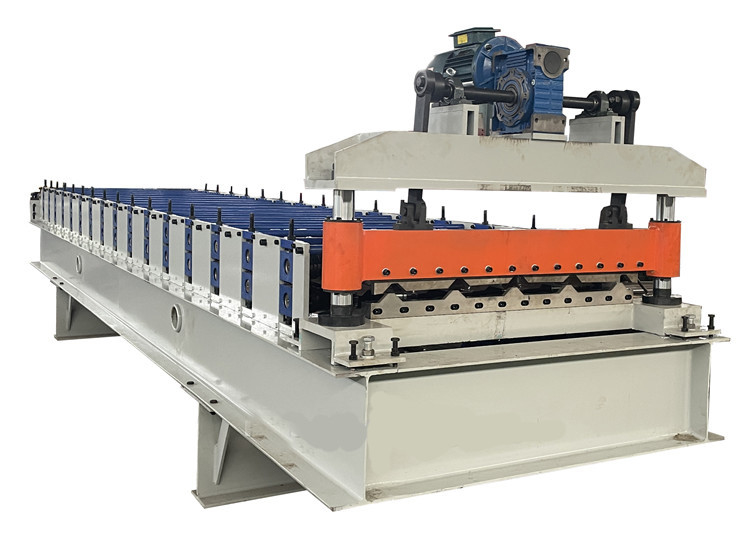

South America Metal Roof Sheet Roof Sheet Roll Forming Production Line
This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine for Wall and Roof is very popular in the world, it play a fairly important role in the steel struction building. With these roof tile,840 trapezoidal sheet roll forming machine popular sell in many countries, Coil width before rolling is 1000mm /1200mm / 1250mm. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm. it can protect your roof of house well.
Specification
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel or PPGI |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | 11 |
| Shaft diameter | 70 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | 45# steel with 0.05mm chrome | |
| Machine size | About 6.2×1.5×1.3 m | |
| Machine weight | About 4.5 ton | |
| Machine color | As customer' request | |
| Working speed | 8-20 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 4 kw | |
| Pump power | 3 kw | |
| Voltage |
380v/50HZ,3P or customize as customer' request |
|
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need |
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
Guarantee
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
