Versatile 0.3mm Trapezoidal Roll Forming Machine For Metal Roof

Versatile 0.3mm Trapezoidal Roll Forming Machine For Metal Roof

versatile trapezoidal roll forming machine

0.3mm trapezoidal roll forming machine

0.3mm metal roof roll forming machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Model Number:

840/850

Contact Us
Request A Quote
Versatile 0.3mm Trapezoidal Roll Forming Machine For Metal Roof
Versatile 0.3mm Trapezoidal Roll Forming Machine For Metal Roof Versatile 0.3mm Trapezoidal Roll Forming Machine For Metal Roof Versatile 0.3mm Trapezoidal Roll Forming Machine For Metal Roof
Product Details
Raw Material:
PPGI/Galvanized Sheet
Total Power:
9.5 Kw
Brand Of Control System:
Delta Or As Required
Roller Material:
45#steel Chrome Plated
Working Thickness:
0.3-0.7mm
Core Components:
Motor, Pump, PLC
Weight:
5500 Kg
Voltage:
380V Or As Required
Highlight:

versatile trapezoidal roll forming machine

,

0.3mm trapezoidal roll forming machine

,

0.3mm metal roof roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
30 sets per month
RELATED PRODUCTS
Good price IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price 2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836 online Video

2024 New 380V 60Hz 3Ph Double Layer Roof Roll Forming Machine 840 Trapezoidal And 836

Get Best Price
Good price Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof online Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price
Good price Double Layer Roll Forming Machine PLC Control online Video

Double Layer Roll Forming Machine PLC Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

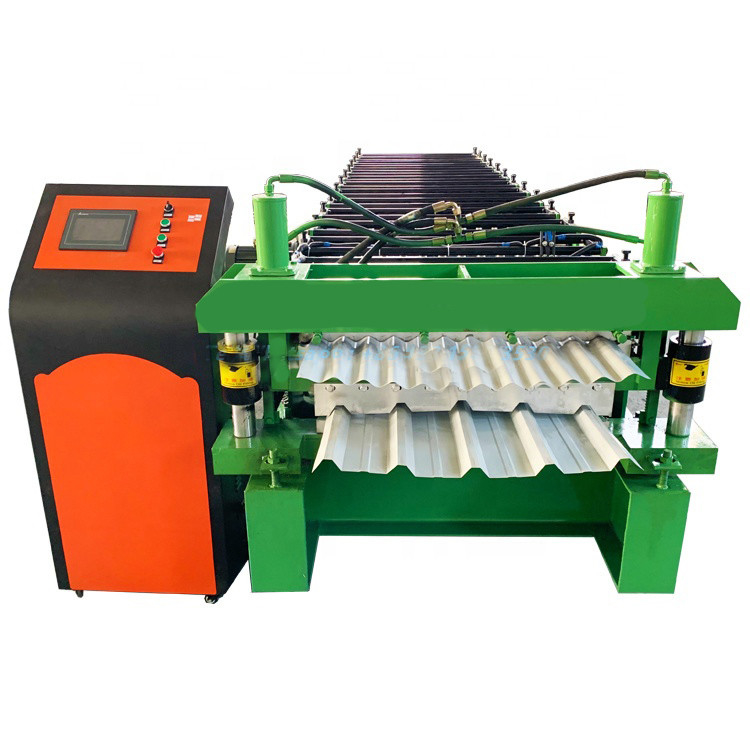

Double Layer Trapezoidal Metal Roofing Machine Versatile


The double layer rollformer produces a dual profile on the same machine, sharing the same de-coiler, drive trains and motors, but using different rolls and different cut offs.

The double layer machine is particularly useful where operating or storage space is a problem. Double layer roofing panel roll forming machine can make two different roof design one machine , you can choose different roof collocations, IBR profile and Corrugated profile,Step tile and trapezoidal,Step tile and corrugated or Glazed tile and IBR ,Glazed and Corrugated profile.
 Detailed Parameters:

Metal material thickness
0.3 - 0.7mm
Metal material width
925mm or as client require

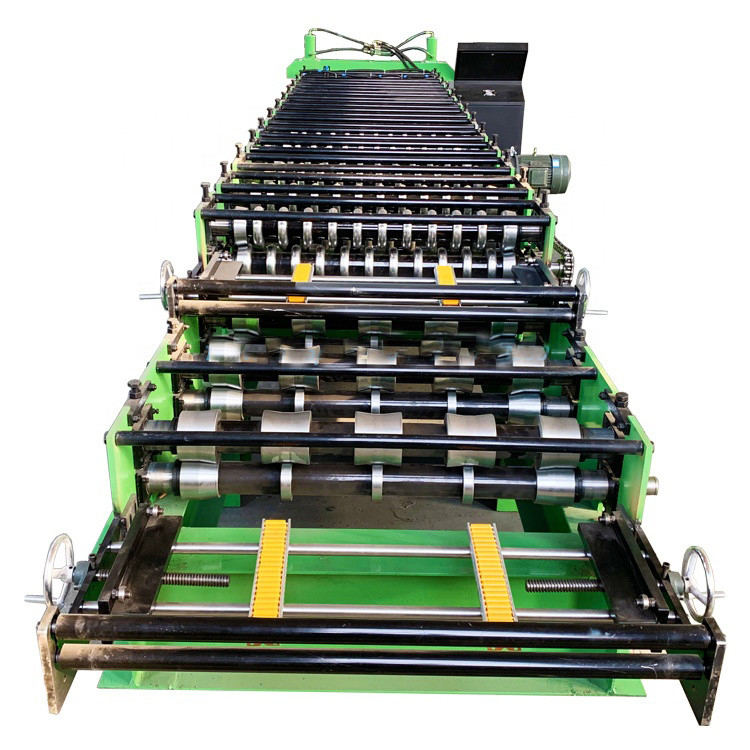

Roller Stage
13+15 rows
Roller Material
45# forging steel with chromium plate
Diameter of shaft
Φ70mm
Material of cutting blade
Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine
350H beams
Side Panel of Machine
16mm
Chain
1.2 inch
Motor power
5.5 kw
Hydraulic pump power
4 kw
Productivity
8-12 meters per minute



Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received
