Product Details:
Payment & Shipping Terms:
|
| Product Name: | 6 Waves Trapezoidal Profile Metal Roofing Making Machine IBR | Core Components: | Motor, Pump, PLC |
|---|---|---|---|
| Voltage: | 380V 50HZ 3 Phase Or Other | Weight: | 2900 Kg |
| Warranty: | 1 Year | Control System: | Fully Automatic |
| Working Thickness: | 0.3-0.7mm | Key Selling Points: | Automatic |
| Dimension(L*W*H): | 6.9*1.5*1.35m | ||
| High Light: | 6 waves roof roll forming machine,ibr roof roll forming machine,ibr tile roll forming machine |
||

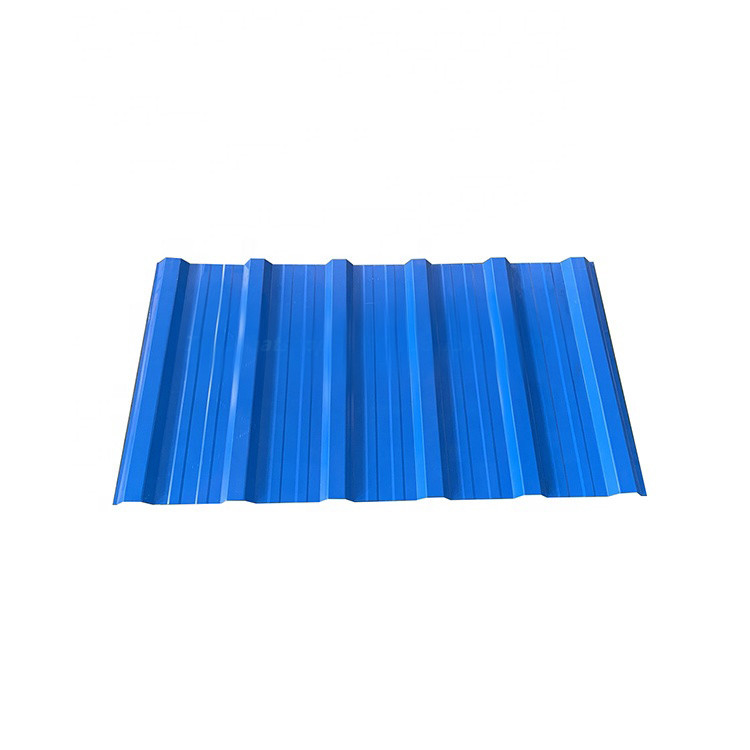

6 Waves Trapezoidal Profile Metal Roofing Making Machine IBR
The trapezoidal metal roofing making machine used fully automatic control system,It has the characteristics of high output and high quality.
The machine is used to construct external roofing & wall panels of houses & interior panels or ceilings to enhance the appearance of the roof or walls,And durability.
Specification
|
Metal material thickness
|
0.3 - 0.7mm
|
|
Metal material width
|
1200mm or as client require
|
|
Roller Stage
|
16 rows
|
|
Roller Material
|
45# forging steel with chromium plate
|
|
Diameter of shaft
|
Φ70mm
|
|
Material of cutting blade
|
Cr12Mov, Quenched treatment 58℃-60℃
|
|
Main Structure of the Machine
|
350H beams
|
|
Side Panel of Machine
|
16mm
|
|
Chain
|
1.2 inch
|
|
Motor power
|
4 kw
|
|
Hydraulic pump power
|
4 kw
|
|
Productivity
|
8-12 meters per minute
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
