Self Lock Standing Seam Roll Forming Machine For Color Steel Roofing Sheet

roofing standing seam roll forming machine

selflock standing seam roll forming machine

self lock standing seam roll former

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Name:

Self Lock Standing Seam Roll Forming Machine Ghana Type Color Steel Roofing Sheet

Core Components:

Motor, Pump, PLC

Voltage:

380V Or As Required

Roller Stage:

16 Roller Stations

Working Thickness:

0.3-0.7mm

Roller Material:

45#steel Chrome Plated

Weight:

1800 Kg

Feeding Width:

400mm

Highlight:

roofing standing seam roll forming machine

selflock standing seam roll forming machine

self lock standing seam roll former

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union

Supply Ability

30 sets per month

Metal Steel Sheets Steel Plate Diamond Checker Pattern Leveling Embossing Machine

Get Best Price

Video

Corrugated Three Layer Color Steel Roll Forming Machine Full Automatic

Get Best Price

Video

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price

Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price

86-317-2016816

Contact Now

Product Description

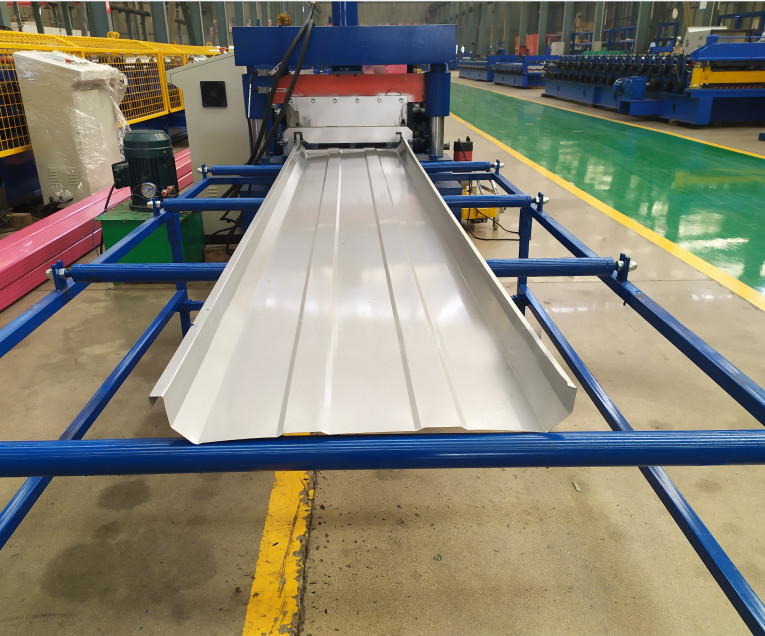

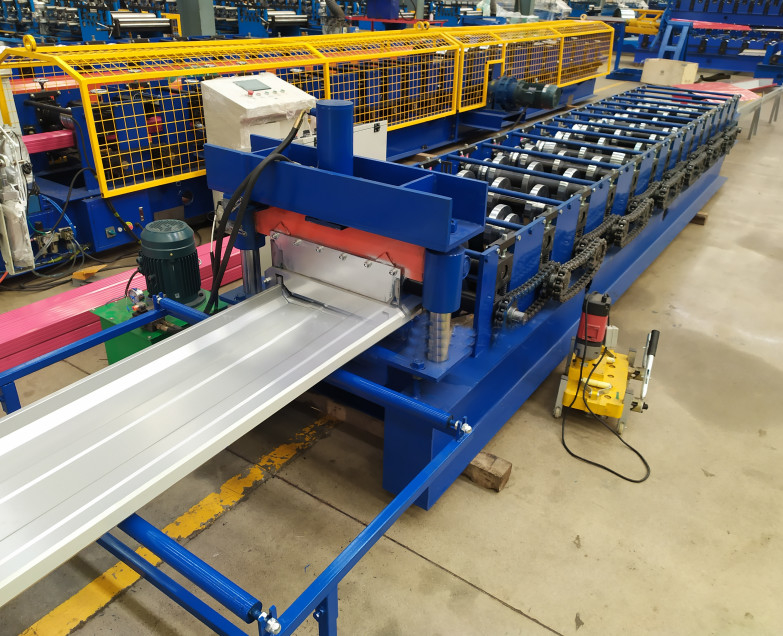

Self Lock Standing Seam Roll Forming Machine Ghana Type Color Steel Roofing Sheet

The ability to remove and replace a single metal roofing panel without having to take off the entire roof is an amazing advantage and something that other standing seam metals profiles can not do. Because life happens, things change, and homes and buildings need to meet the needs of different people or building occupants over time mean additions and remodels happen. Changes or repairs on chimneys, skylights, HVAC units, or even fixing storm damage is all a realty.

Equipment Detailed Parameters

Metal material thickness	0.3 - 0.8mm
Metal material width	400mm or as client require
Roller Stage	16 rows
Roller Material	45# forging steel with chromium plate
Diameter of shaft	Φ70mm
Material of cutting blade	Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine	300H beams
Side Panel of Machine	16mm
Chain	1 inch
Motor power	5.5kw
Hydraulic pump power	4 kw
Productivity	8-12 meters per minute

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
