Iron Sheet 0.14-0.3mm Roof Roll Forming Machine Barrel Corrugator

Iron Sheet 0.14-0.3mm Roof Roll Forming Machine Barrel Corrugator

0.14mm roof roll forming machine

barrel corrugated roof roll forming machine

0.3mm corrugated roll forming machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Contact Us
Request A Quote

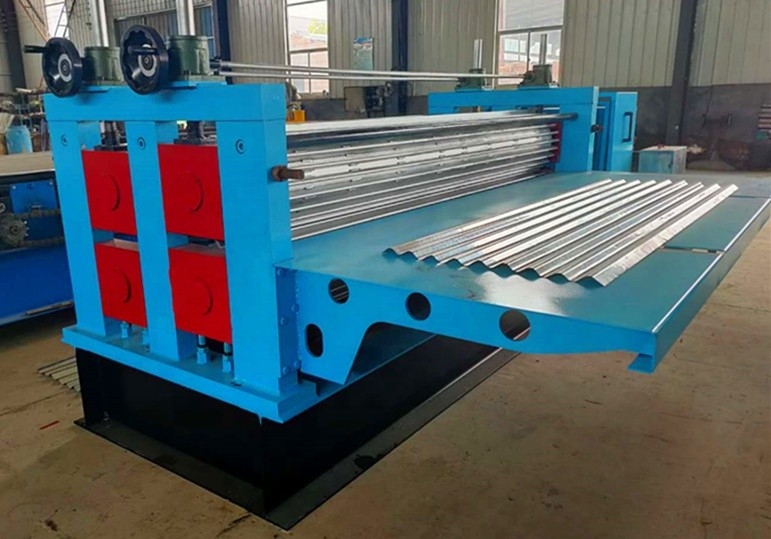

Iron Sheet 0.14-0.3mm Roof Roll Forming Machine Barrel Corrugator
Iron Sheet 0.14-0.3mm Roof Roll Forming Machine Barrel Corrugator Iron Sheet 0.14-0.3mm Roof Roll Forming Machine Barrel Corrugator
Product Details
Product Name:
Iron Sheet Roll Forming Machine 0.14-0.3mm Barrel Corrugator
Core Components:
Pressure Vessel, Pump, PLC
Thickness:
0.12-0.4MM
Dimension(l*w*h):
4800*2300*1600mm
Warranty:
12 Months
Voltage:
380v60hz3ph
Rolling Thinckness:
0.3-0.8mm
Shaft Material:
45# Steel Outer Diameter: 75mm
Highlight:

0.14mm roof roll forming machine

,

barrel corrugated roof roll forming machine

,

0.3mm corrugated roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Main machine is nude,the computer control box is packed by plastic.
Delivery Time
30days
Payment Terms
T/T, Western Union
Supply Ability
30 sets per month
RELATED PRODUCTS
Good price crimping bending Roofing Sheets Roll Forming Machine Hydraulic online Video

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price
Good price IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation online Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price
Good price high speed Roofing Sheets crimping bending Roll Forming Machine online Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price
Good price 1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control online Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

Iron Sheet Roll Forming Machine 0.14-0.3mm Barrel Corrugator



Barrel Corrugated Roll Forming Machine is for thin material from 0.12-0.4mm thinkness. It is very popular in Africa, such as Nigeria, Kenya, South Africa and Senegaln etc.



Parameter

1.Transverse barrel corrugating type.
2.Raw material: thin Galvanized steel sheets, Aluzinc steel sheets etc
3.Sheet width:762mm(2.5 feet),914mm(3 feet),1000mm,1250mm
4.Thickness range:0.1mm to 0.25mm (0.17mm).
5.Sheet Maximum length:4500mm, Thickness: 0.14mm to 0.30mm
6.Pitch:76 mm(+/-1.0mm) or customer(s) required.
7.Depth:18mm(+/-0.5mm) or customer(s) required.
8.Corrugation:large round wave
9.Drive:geared motor 7.5Kw -8kw
10.Forming speed: 9-12 times per min
11.Corrugation roll:barrel length 2500mm-4500mmL.
12.Pitch adjust roll:barrel length 2500mm-4500mmL.
13.Power:380V (50HZ).
14.Capacity: 2-4 Ton per hour

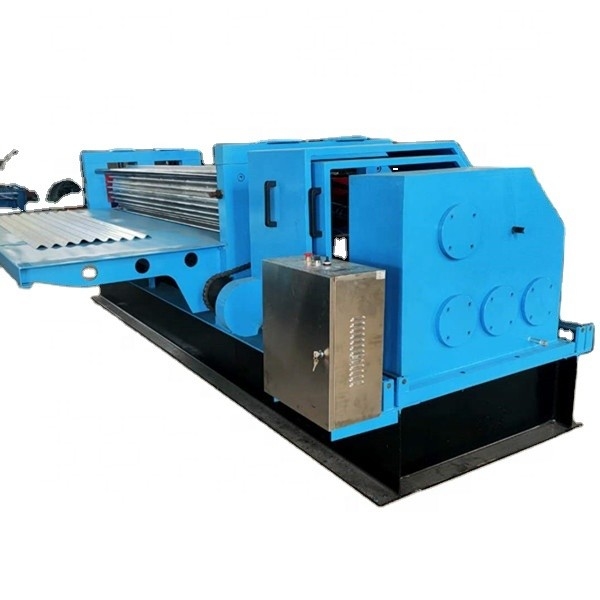

Iron Sheet 0.14-0.3mm Roof Roll Forming Machine Barrel Corrugator 0
