Product Details:
Payment & Shipping Terms:
|
| Product Name: | USA Metal Roofing K Gutter Roll Forming Machine Low Noise | Raw Material: | Galvalume, Galvanized, PPGI，Aluminum，Copper |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Feeding Width: | 900mm |
| Control System: | PLC | Usage: | Water Gutter For Roof |
| Roller Material: | 45#steel Chrome Plated | Rolling Thinckness: | 0.3-0.8mm |
| High Light: | low noise gutter roll forming machine,ppgi gutter roll forming machine,ppgi metal gutter roll forming machine |
||

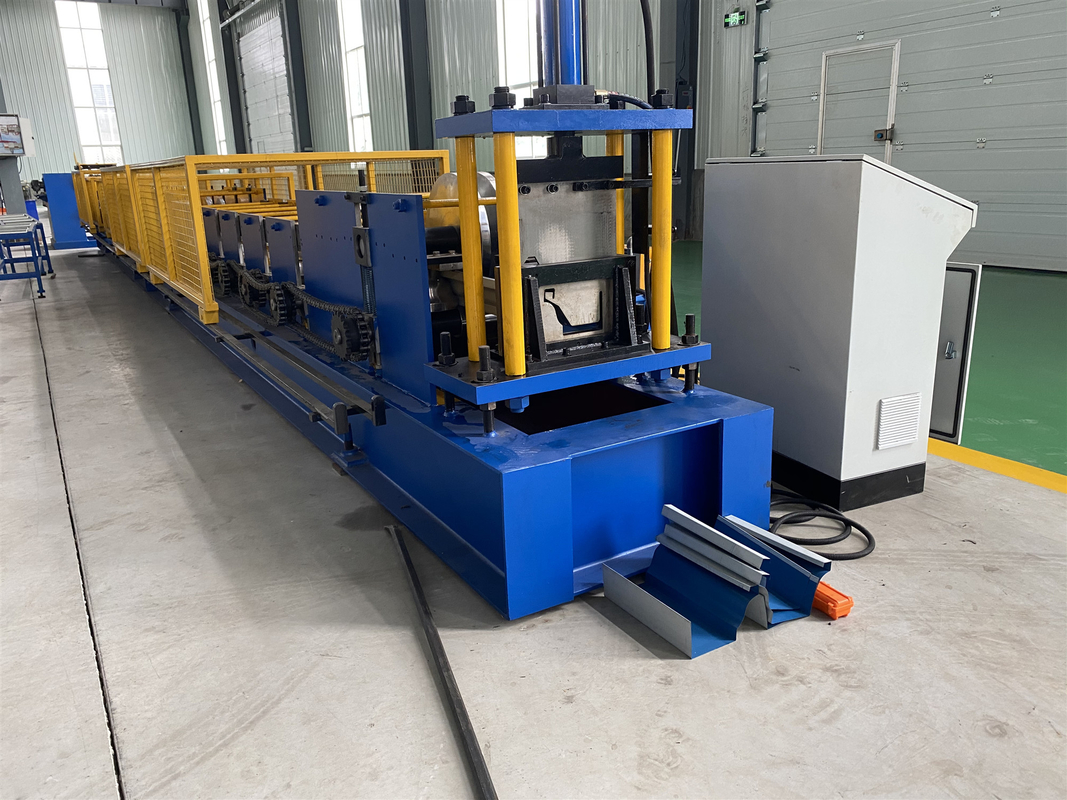

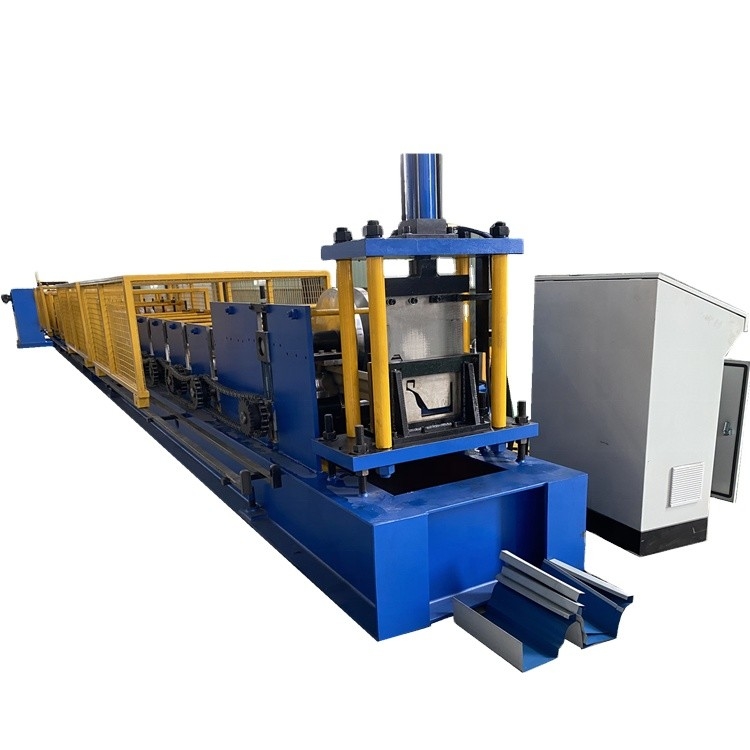

USA Metal Roofing K Gutter Roll Forming Machine Low Noise
Specification
|
Name
|
New tech gutter machine
|
|
Processing Material
|
Colored steel plate, galvanized plate, or aluminium plate
|
|
Thickness of sheet
|
Processing thickness of plate: 0.3--0.8MM
|
|
Equipment operation
|
Automatically
|
|
Voltage
|
According to customer's request
|
|
Material width
|
12m
|
|
Productivity
|
8-15m/min
|
|
Material of Rollers
|
45# steel, surface hard chromium plating.
|
|
Material of shafts
|
45# steel, with heat treatment and surface is being hard chromed
|
|
Diameter of shafts
|
80mm
|
|
Number of rollers
|
16-18rollers
|
|
Total Power
|
4KW+5.4KW
|
|
Working accuracy
|
10m±2mm
|
|
Roller fixer
|
Wall Board
|
|
Frame
|
350H steel
|
|
Cutting System
|
Hydraulic mould Cutting
|
Application
This produc has the advantages of easy installation, short construction period, beautiful appearance, light weight but high strength.so it's widely used in roofs and walls of factories, warehouses, garages, stadiums, exhibition centers, cinemas, theaters, etc.
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms and delivery
40% in advance as down payment
60% is paid before the shipment is processed
The Delivery Time: 30 days after the down payment is received.
