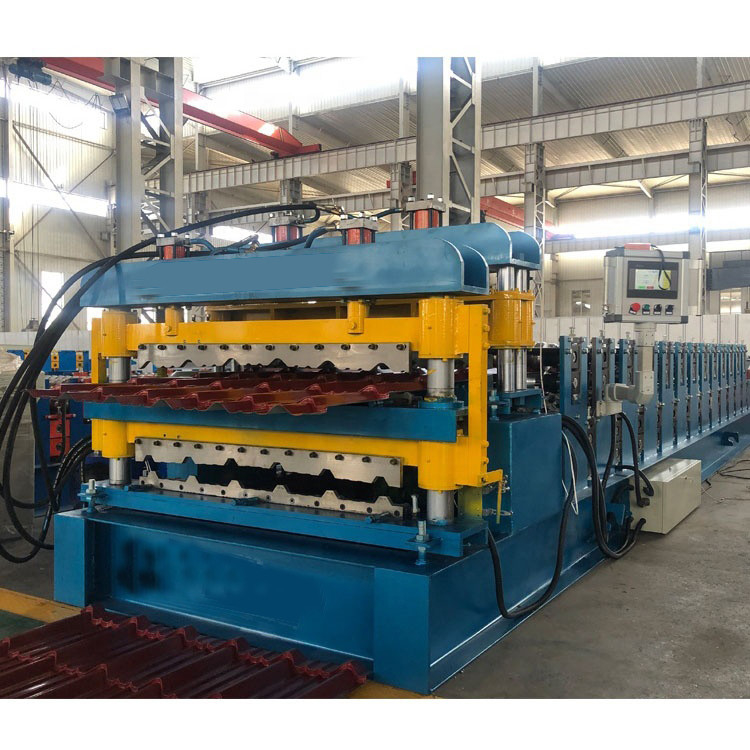

20m/Min Chaindrive Double Layer Roll Forming Machine 0.3mm Roof Tile Sheet Making

0.3mm roof tile roll former

double layer roll forming machine 0.3mm

chaindrive double layer roll forming machine

Place of Origin:

China

Brand Name:

FMS

Certification:

CE,ISO

Request A Quote

Product Details

Product Description:

Double Layer Roofing Tile Sheet Making Roll Forming Machine Production Line

Production Capacity:

0-20m/min

Key Selling Points:

Easy To Operate

Rollers Material:

GCr15,Cr12,SKD11 Quenching Treatment:HRC58-62（optional）

Control System:

PLC

Voltage:

380V 50HZ 3PH

Cutting Blade Material:

Cr 12 Mov,Quenched

Rolling Thinckness:

0.3-0.8mm

Warranty:

2 Years

Highlight:

0.3mm roof tile roll former

double layer roll forming machine 0.3mm

chaindrive double layer roll forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Main machine is nude,the computer control box is packed by plastic.

Delivery Time

30days

Payment Terms

T/T, Western Union, L/C

Supply Ability

35 sets per month

IBR and Corrugated Double Layer Roof sheet Roll Forming Machine For Ppgi Panel Roof

Get Best Price

Video

IBR Glazed Double Layer Roof sheet Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

Plc 0.80mm Double Layer Roll Forming Machine 15m/Min For Ppgi Panel Roof

Get Best Price

Video

Double Layer Roll Forming Machine PLC Control

Get Best Price

86-317-2016816

Contact Now

Product Description

Double Layer Roofing Tile Sheet Making Roll Forming Machine Production Line

Double layer metal tile/panel roll forming machine can produce two different kinds of tile/panel with one machine,you can choose any two kinds of roofing tile/panel ,it can save a lot of room and money.metal roof tile/panel is widely used in constructions and buildings,it can be uesd to build roof and wall.This kind of material can be used in many places such as gyms,warehouses,factories,etc.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	roller material	45# steel plated with chrome
3	Rows of rollers	15 rows & 16 rows
4	Way of drive	chaindrive,Gearbox drive(optional)
5	Product automatic stacker	6m length
6	Feeding width	1220mm
7	Production Capacity	12 m/min
8	Rolling thinckness	0.3-0.8m
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	main motor power	5.5kw
12	hydraulic station power	4kw

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
