Product Details:
Payment & Shipping Terms:
|
| Product Description: | Ibr And Corrugated Roof Sheet Forming Machine Double Layer | Weight: | 3250 Kg |
|---|---|---|---|
| Feeding Width: | 1220mm | Rollers Material: | GCr15,Cr12,SKD11 Quenching Treatment:HRC58-62（optional） |
| Control System: | PLC | Production Capacity: | 0-20 M/min |
| Voltage: | 380V 50HZ 3PH | Cutting Blade Material: | Cr 12 Mov,Quenched |
| Rolling Thinckness: | 0.3-0.8mm | Warranty: | 2 Years |
| High Light: | 1220mm double layer roll forming machine,ibr double layer roofing sheet roll forming machine,corrugated double layer roofing sheet roll forming machine |
||

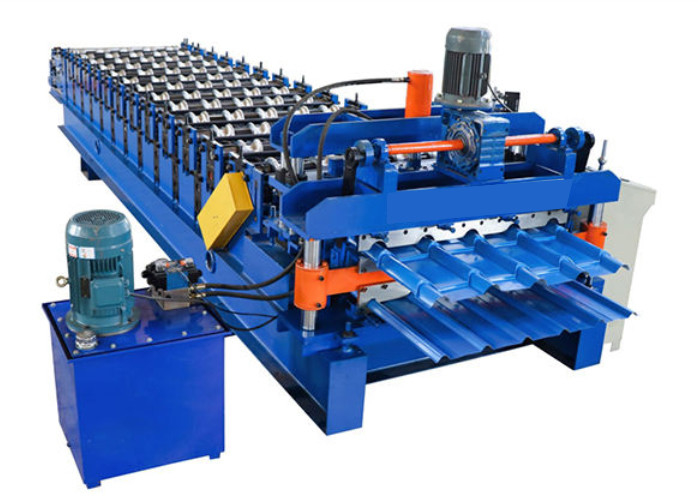

Ibr And Corrugated Roof Sheet Forming Machine Double Layer
The double layer roll former produces a dual profile on the same machine, sharing the same decoiler, drive trains and motors, but using different rolls and different cut offs.

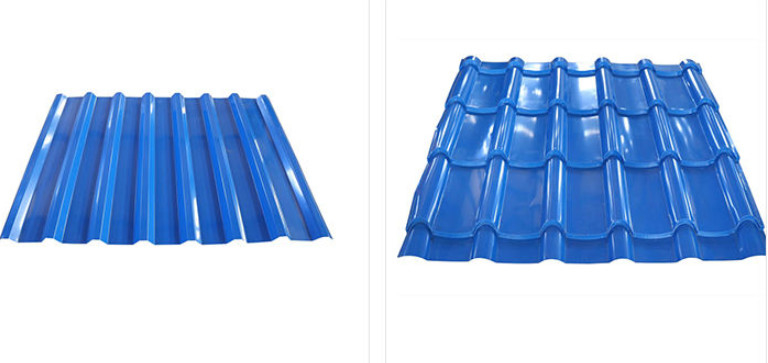

The double layer machine is particularly useful where operating or storage space is a problem.For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine,
Equipment Detailed Parameters:
|
1 |
Suitable Material | PPGI (235Mpa) |
|
2 |
roller material | 45# steel plated with chrome |
| 3 | Rows of rollers | 15 rows & 16 rows |
| 4 | Way of drive | chaindrive,Gearbox drive(optional) |
| 5 |
diameter of shaft |
70mm |
| 6 | Warranty | 2 years |
| 7 | Production Capacity | 0-20 m/min |
|
8 |
Rolling thinckness |
0.3-0.8m |
| 9 | Diameter of shaft | ￠75mm |
|
10 |
Voltage | 380V 50Hz 3phases |
| 11 | main motor power | 5.5kw |
| 12 | hydraulic station power | 4kw |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
Contact Person: Mrs. Tracy
Tel: +8618713641935
Fax: 86-317-2016816
