High Speed Roll Top Galvalume Ridge Cap Roll Forming Machine

High Speed Roll Top Galvalume Ridge Cap Roll Forming Machine

galvalume ridge cap roll forming machine

0.3mm ridge cap roll forming machine

high speed ridge cap machine

Place of Origin:

CHINA MAINLAND

Brand Name:

CANGZHOU WILLING

Certification:

ISO CE

Model Number:

Ridge Cap

Contact Us
Request A Quote
High Speed Roll Top Galvalume Ridge Cap Roll Forming Machine
High Speed Roll Top Galvalume Ridge Cap Roll Forming Machine High Speed Roll Top Galvalume Ridge Cap Roll Forming Machine
Product Details
Product Name:
High Speed Roll Top Ridge Cap Roll Forming Machine South Africa
Raw Material:
Galvalume, Galvanized, PPGI, Aluminum
Control SystePLCm:
PLC
Thickness:
0.3-0.8mm
Tile Type:
Ridge Cap
Production Capacity:
20-25m/min
Color:
As Per Customer Reqeust
Motor Power:
4KW
Voltage:
380v50hz3phase
Core Components:
Motor, Pump, PLC
Highlight:

galvalume ridge cap roll forming machine

,

0.3mm ridge cap roll forming machine

,

high speed ridge cap machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
40' FLC
Delivery Time
30 Working Days
Payment Terms
L/C, T/T, D/A, D/P
Supply Ability
20 Sets Per Month
RELATED PRODUCTS
Good price crimping bending Roofing Sheets Roll Forming Machine Hydraulic online Video

crimping bending Roofing Sheets Roll Forming Machine Hydraulic

Get Best Price
Good price IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation online Video

IBR Rib type Roof Roll Forming Machine 36 Coverage 3/4 High Ribs Easy Operation

Get Best Price
Good price high speed Roofing Sheets crimping bending Roll Forming Machine online Video

high speed Roofing Sheets crimping bending Roll Forming Machine

Get Best Price
Good price 1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control online Video

1000mm width raw material Corrugated Metal Roofing Roll Forming Machine Full Automatic Plc Control

Get Best Price
Contact Us
86-317-2016816
Contact Now
Product Description

High Speed Roll Top Ridge Cap Roll Forming Machine South Africa

Is designed to produce ridge cap tile used on roof, this machine is very easy to install, low noise and high efficiency.

The ridge tile forming equipment adopts roller forming technology and is used for hydraulic forming with a die. Products are widely used in the roof connection of building color steel plates.  This machine can be customized according to customer requirements.The ridge tile forming machine can be produced continuously like other roll forming machines, replacing the tedious process of making ridge tiles with a bending machine, saving human resources and greatly reducing labor costs.

Specification

Article No. Item Name Specification
1 Processing material Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
2 Processing thickness (mm) 0.3-0.8mm
3 Material of rollers High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
4 Material of shafts 45# steel
5 Diameter of shafts 70mm or as your customized
6 Forming speed 20-25 m/min
7 Under frame 300 H-beam
8 Sidewall 16mm
9 Connect bar 25mm, zinc plated
10 Forming steps 11rollers
11 Control system Delta PLC and Inverter
12 Suitable power 380V, 50 Hz, 3 phase or according to your need
13 Drive mode Chain and sprocket, chain size 1 inch
14 Main motor 4w
15 Hydraulic pump station 4w
16 Cutting model Hydraulic profile cutting
17 Dimension of the machine 6m×0.6mm×1.0m
18 Weight of the machine 2.5tons



Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.

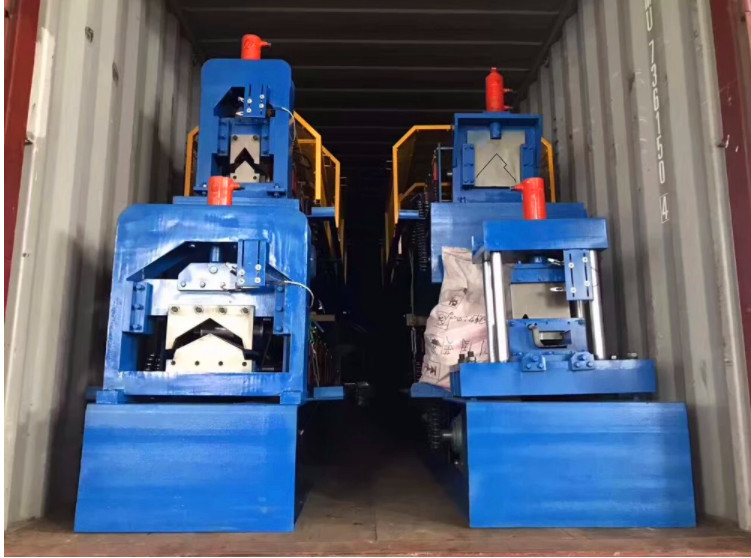

High Speed Roll Top Galvalume Ridge Cap Roll Forming Machine 0
